Special Tools

WARNING: This page is about a different variant/trim than selected.

Equivalent regional tools: Special Tools

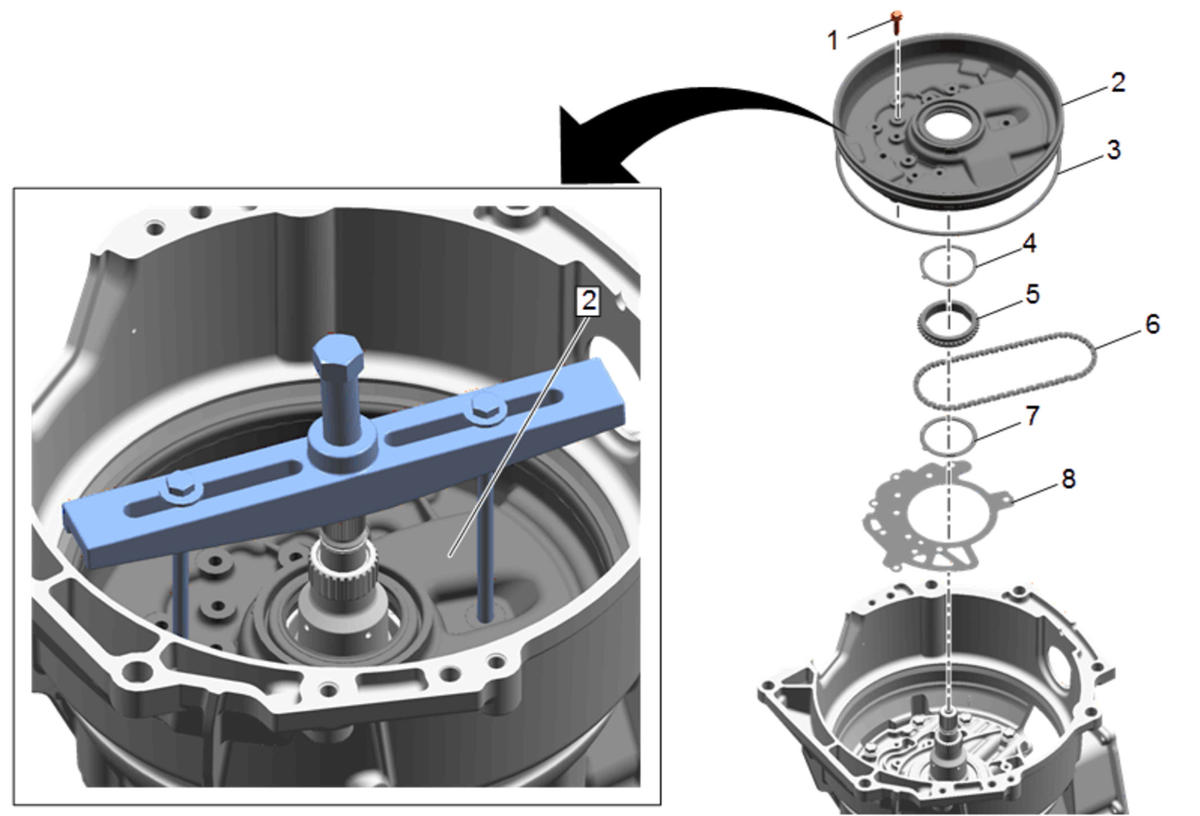

  1. GM3977882Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Case Front Cover Bolt (1) - Remove and DISCARD M6 x 30 [11x]

  2. Use the GE-8433  Puller Bar and 2 bolts in the threaded holes of the automatic transmission front cover to remove it from the case.
  3. Automatic Transmission Case Front Cover (2) - Remove
  4. Automatic Transmission Case Front Cover Seal (3) - Remove and DISCARD
  5. Drive Sprocket Thrust Washer- Front (4) - Remove
  6. Drive Sprocket (5) - Remove
  7. Drive Link - Remove
  8. Drive Sprocket Thrust Washer- Rear (6) - Remove
  9. Automatic Transmission Front Support Cover Gasket (7) - Remove and DISCARD
