Special Tools
WARNING: This page is about a different variant/trim than selected.
| Illustration | Tool Number/Description |
|---|---|
| DT-8092 GE-8092 J-8092 Driver Handle |
|
| DT-03289-20 J-3289-20 Holding Fixture (Base) |
|
| DT-21366 J-21366 Converter Holding Strap |
|
| DT-22828 J-22828 Input and Countershaft Race Installer |
|
| DT-26941 J-26941 Bushing and Bearing Remover |
|
| DT-35512 J-35512 Bearing Installer |
|
| DT-37212 J-37212 Front Output Shaft Seal Installer |
|
| DT-38734 J-38734 Intermediate Spring Compressor Adapter |
|
| DT-42628 J-42628 Plate |
|
| DT-43772 J-43772 Torque Converter Seal Installer |
|
| DT-45000 J-45000 Seal Remover |
|
| DT-45012 J-45012 Holding Fixture |
|
| DT-45096 J-45096 Transmission Oil Cooling System Flush and Flow Test Tool |
|
| DT-45096-30 J-45096-30 Transmission Cooler Flusher Adapters |
|
| DT-45096-40 J-45096-40 Transflow Oil Fill Adapter |
|
| DT-45124 J-45124 Removal Bridge |
|
| DT-45124-9 J-45124-9 Puller Leg |
|
| DT-45201 J-45201 Cooler Line Seal Remover |
|
| DT-46409 Torque Converter Lifting Handles |
|
| DT-47693-2 Compressor |
|
| DT-47770 Seal Installer |
|
| DT-47865 Bearing Remover |
|
| DT-47868-4 Clutch Travel Weight Adapter |
|
| DT-48056 Spring Compressor Bridge |
|
| DT-48285 Valve Body Torx Plus Socket |
|
| DT-48989 Holding Fixture |
|
| DT-50648 Case Seal Installer |
|
| DT-50896 Seal Installer |
|
| DT-50897 Bearing Installer |
|
| DT-50900 Clutch Travel Support Fixture |
|
| DT-50902 Adjustable Clutch Spring Compressor |
|
| DT-50903 Clutch Travel Load Gauge |
|
| DT-50905 Clutch Air Travel Adapter |
|
| DT-50905-3 Clutch Air Travel Fixture Adapter |
|
| DT-50906 Bearing Installer |
|
| DT-50910-A Seal Installer |
|
| DT-50911 Seal Installer |
|
| DT-50912 Seal Installer |
|
| DT-50914 Solenoid Valve Retainer Remover/Installer |
|
| DT-50921 Output Carrier/Shaft Lifting Tool |
|
| DT-51087 Bearing Installer |
|
| DT-51088 Seal Installer |
|
| DT-51089 Bearing Installer |
|
| DT-51190 Fluid Fill Pan Adapter |
|
| DT-51196 Seal Installer |
|
| DT-51328 Clutch Compressor and Air Travel Check Rod Extension |
|

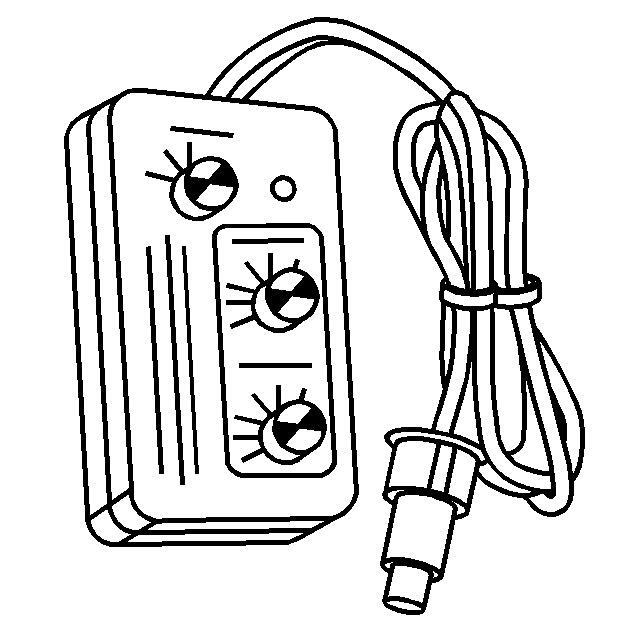

| EL-38522 J-38522 Variable Signal Generator |
|
| EN-38416-B J-38416-B Harmonic Balancer Remover |
|
| GE-6125-B J-6125-B Slide Hammer with Adapters |
|
| GE-8001 J-8001 Dial Indicator Set |
|
| GE-8433 J-8433 Puller Bar |
|
| GE-36825-A J-36825-A Output Shaft Oil Seal Remover |
|
| J-35616 GM-Approved Terminal Test Kit |
|
| J-41736 Bearing Installer |
|
| J-42055 Drivetrain Support Fixture |
|
| J-42628 Plate |
