Automatic Transmission Case Extension Replacement: Notes

WARNING: This page is about a different variant/trim than selected.

Removal Procedure

  1. GM4539081Courtesy of GENERAL MOTORS COMPANY

    Propeller Shaft Transmission Flange (2) - Remove - Propeller Shaft Transmission Flange Replacement (with LGX) , or Propeller Shaft Transmission Flange Replacement (with LT1 or LT4)

  2. Transmission Mount - Remove - Transmission Mount Replacement
  3. Place a drain pan under the vehicle.

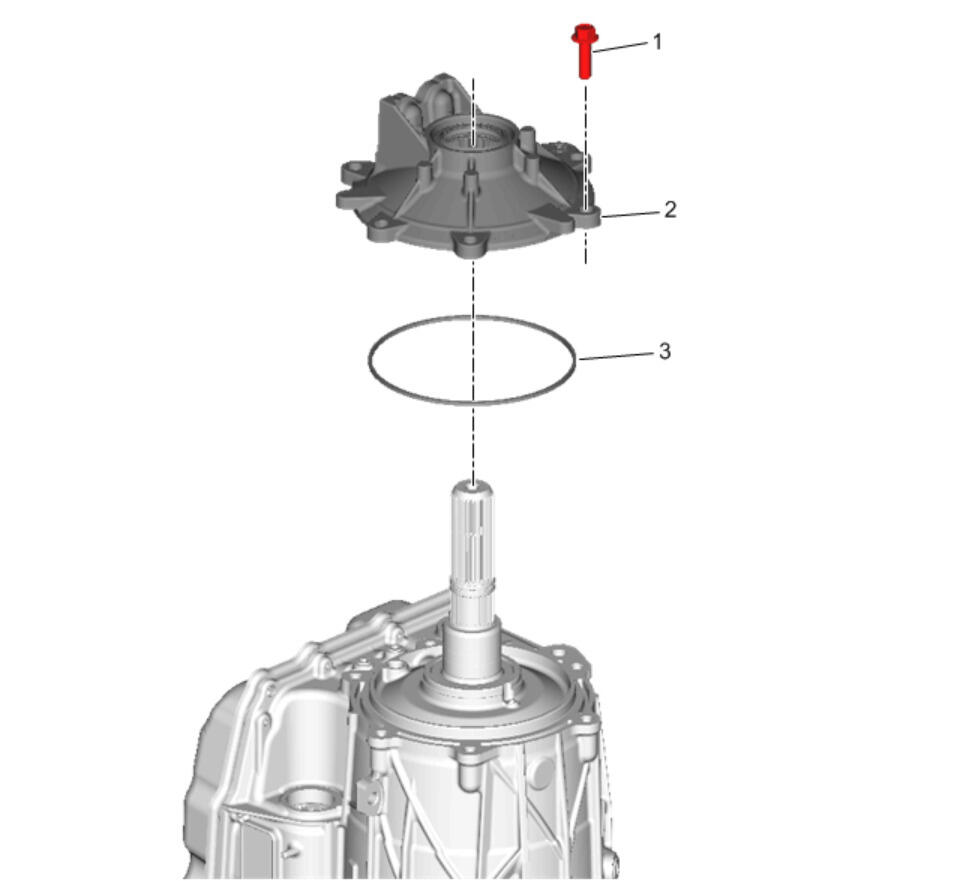

  4. GM4481897Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Case Extension (2) - Remove - Case Extension Assembly Removal
