Installation Procedure

WARNING: This page is about a different variant/trim than selected.

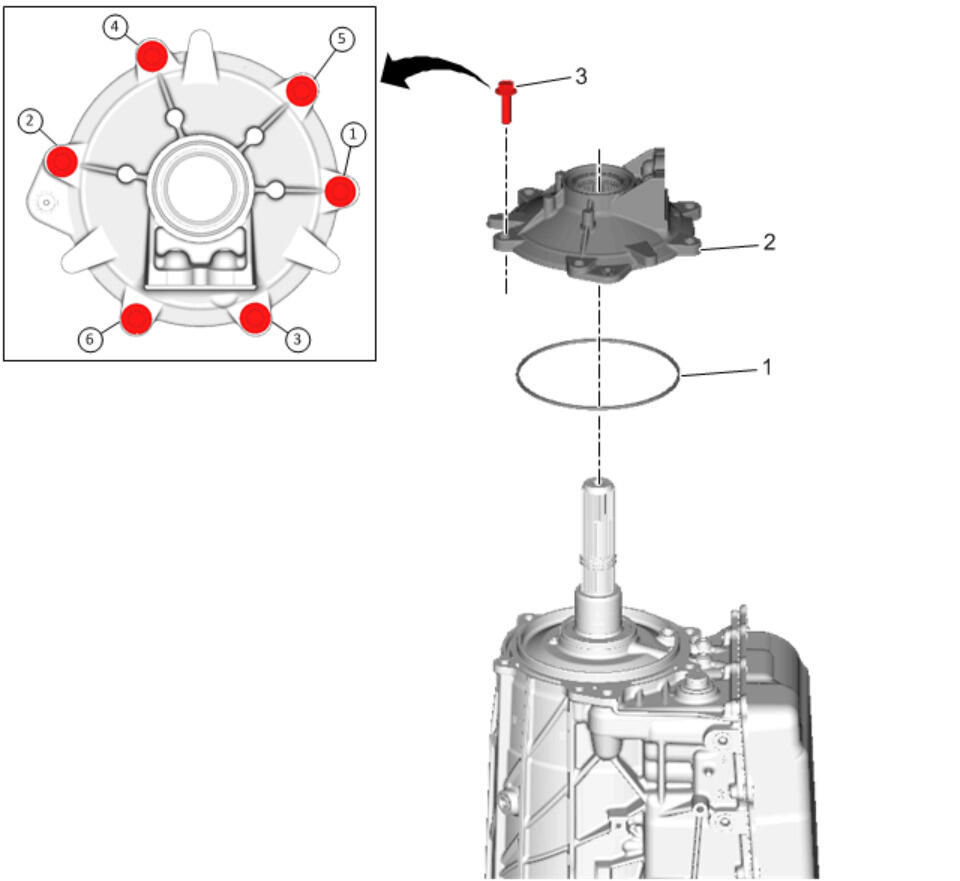

  1. GM4481899Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission Case Extension (2) - Install - Case Extension Assembly Installation

  2. GM4539081Courtesy of GENERAL MOTORS COMPANY

    Propeller Shaft Transmission Flange (2) - Install - Propeller Shaft Transmission Flange Replacement (with LGX) , or Propeller Shaft Transmission Flange Replacement (with LT1 or LT4)

  3. Transmission Mount - Install - Transmission Mount Replacement
  4. Check the transmission fluid level and condition. Transmission Fluid Level and Condition Check
  5. Remove the drain pan.
