Supercharger Belt Replacement

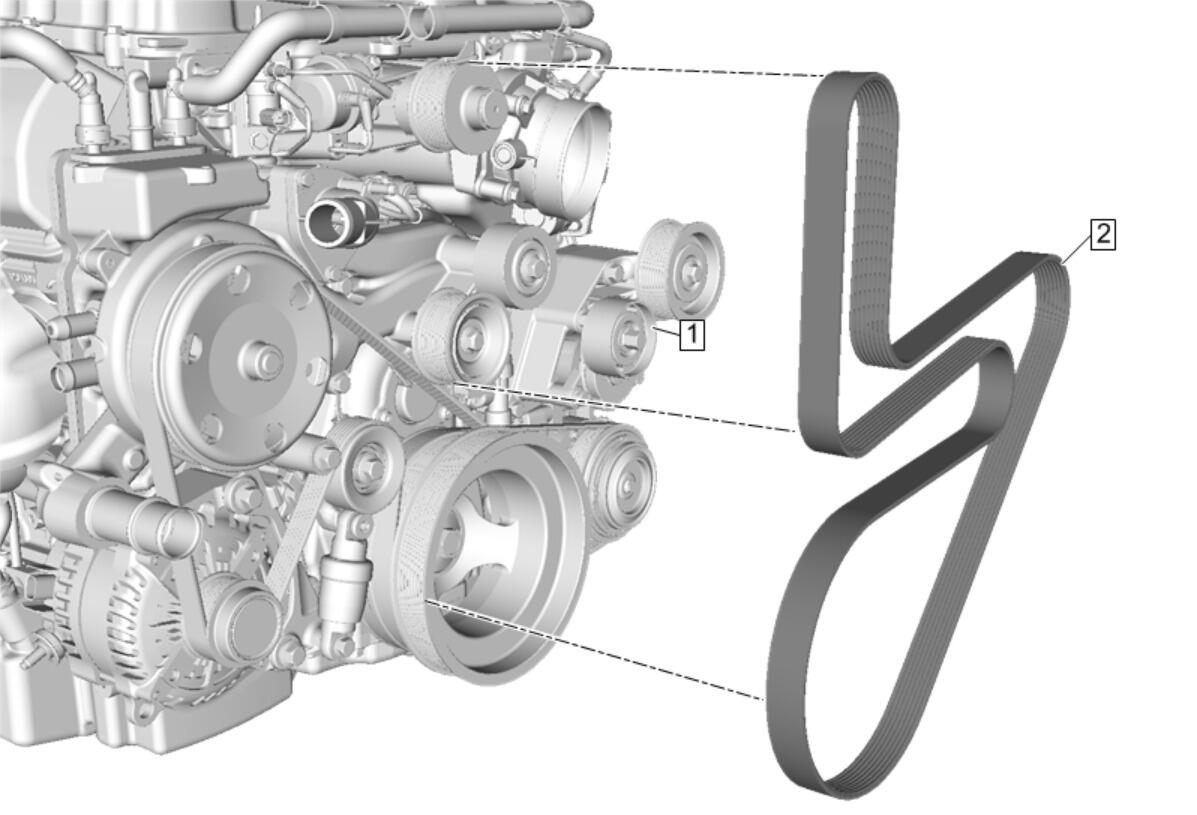

GM4543952Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts items in the following chart represent components shown in graphic above.
Callout Component Name
Preliminary Procedure
Air Cleaner Outlet Duct Replacement (LT1) , or Air Cleaner Outlet Duct Replacement (LT4)
1 Supercharger Belt Tensioner

Procedure

  1. Use a 15 mm tool to rotate counter-clockwise the supercharger belt tensioner.
  2. Remove the supercharger belt from the pulleys and tensioner.
2 Supercharger Belt

Procedure

  1. Clean and inspect the supercharger belt surfaces of all the pulleys.
  2. Inspect the supercharger belt for correct alignment.
