Air Cleaner Outlet Duct Replacement (LT1)
NOTE:

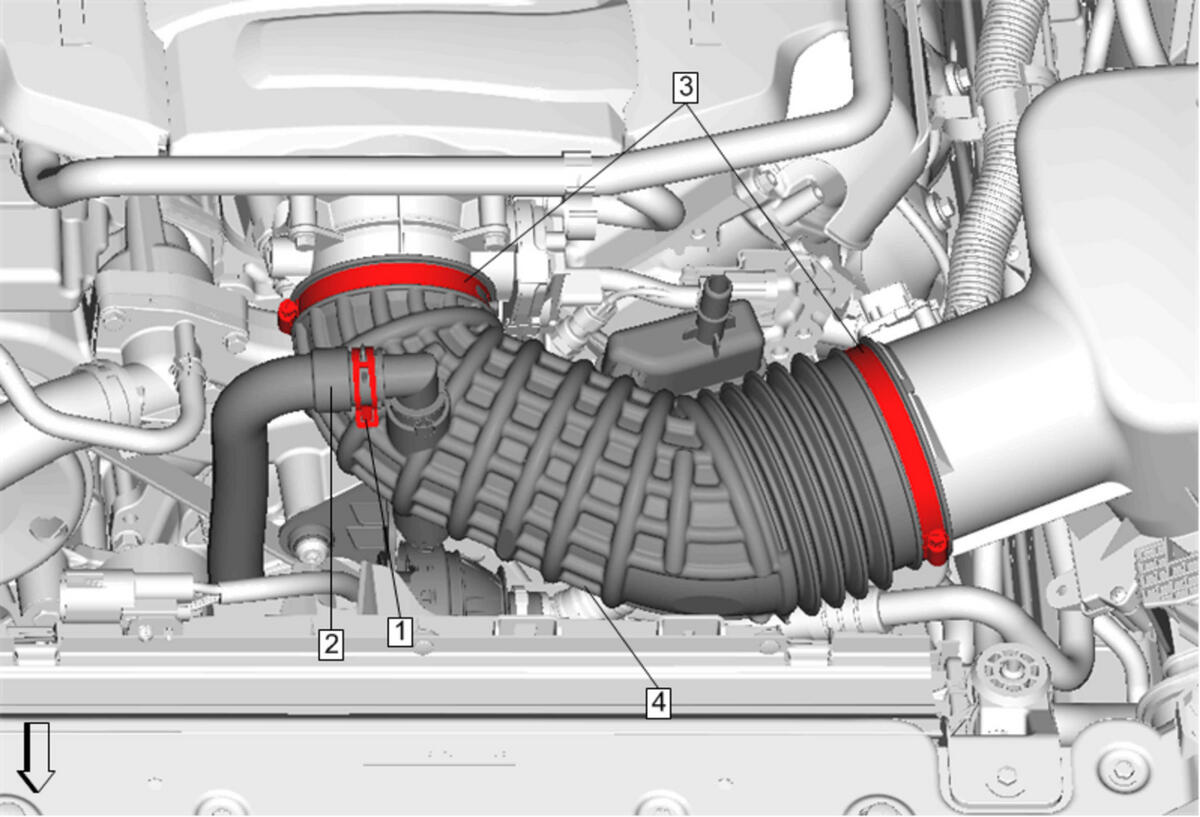

Callouts items in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Positive Crankcase Ventilation Tube @ Air Cleaner Outlet Duct - Disconnect - Plastic Collar Quick Connect Fitting Service |
|
| 1 | Air Cleaner Resonator Clamp |
| 2 | Air Cleaner Resonator |
| 3 | Air Cleaner Outlet Duct Clamp [2x]
CAUTION:
Refer to Fastener Caution .
NOTE:
Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under. Tighten 4 N.m (35 lb in) |
| 4 | Air Cleaner Outlet Duct |
