Air Cleaner Outlet Duct Replacement (LT4)

Courtesy of GENERAL MOTORS COMPANY

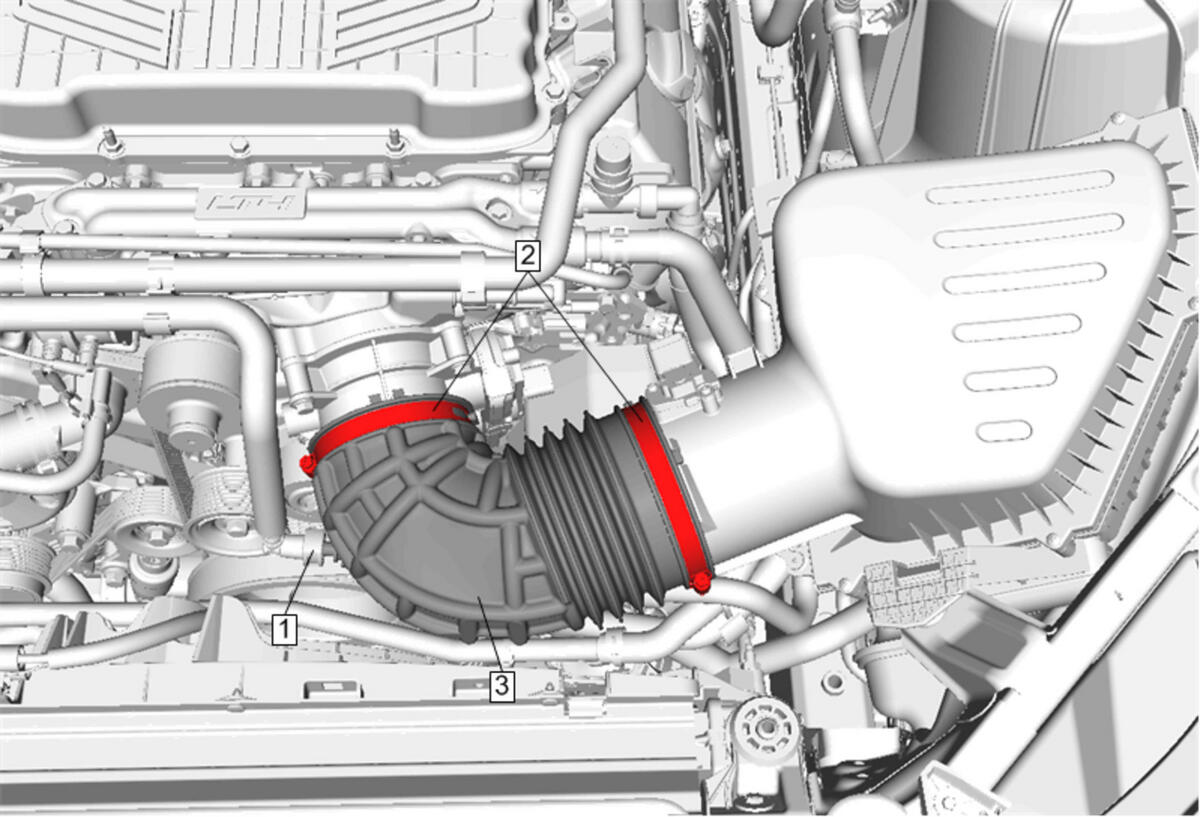

NOTE: Callouts items in the following chart represent components shown in graphic above.

Callout	Component Name
1	Positive Crankcase Ventilation Tube Procedure  PCV Tube @ Air Cleaner Outlet Duct - Disconnect - Plastic Collar Quick Connect Fitting Service
2	Air Cleaner Outlet Duct Clamp [2x] CAUTION: Refer to Fastener Caution . Tighten  4 N.m (35 lb in)
3	Air Cleaner Outlet Duct
