Front Seat Cushion Outer Finish Cover Replacement (Manual)

Courtesy of GENERAL MOTORS COMPANY

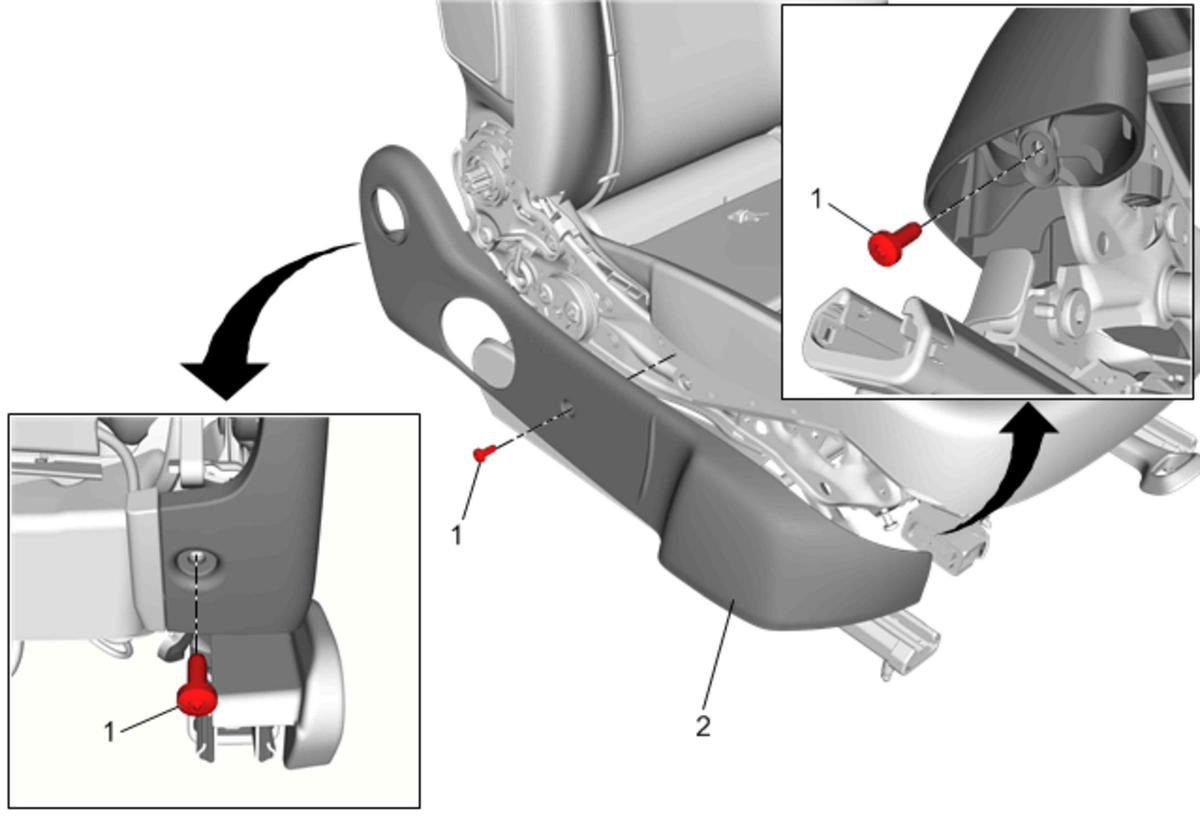

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Front Seat Vertical Actuator Handle Replacement Front Seat Recliner Handle Replacement
1	Front Seat Cushion Outer Finish Cover Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
2	Front Seat Cushion Outer Finish Cover Procedure Use an appropriate tool, such as pliers, to release the large integral retainer. Use a flat-bladed plastic trim tool to release the remaining integral retainers.

Callout

Component Name

Preliminary Procedures

Front Seat Cushion Outer Finish Cover Bolt [3x]

CAUTION:

Tighten
3 N.m (27 lb in)

Front Seat Cushion Outer Finish Cover

Procedure

Use an appropriate tool, such as pliers, to release the large integral retainer.
Use a flat-bladed plastic trim tool to release the remaining integral retainers.
