Front Seat Vertical Actuator Handle Replacement

Courtesy of GENERAL MOTORS COMPANY

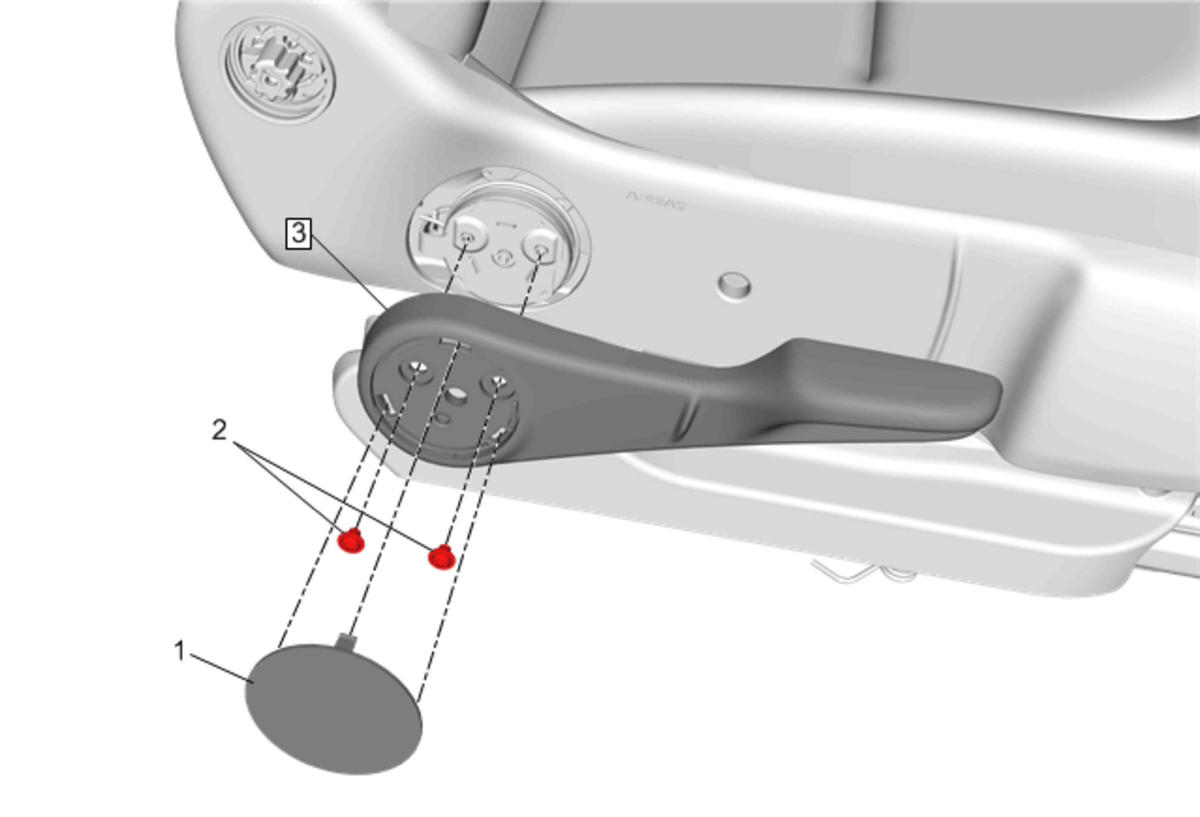

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure  Front Seat Recliner Handle Replacement
1	Front Seat Adjuster Vertical Actuator Handle Bolt Cap Procedure  Use a flat-bladed plastic trim tool to remove the cap.
2	Front Seat Adjuster Actuator Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  3.5 N.m (31 lb in)
3	Front Seat Vertical Actuator Handle
