Front Seat Recliner Handle Replacement

Courtesy of GENERAL MOTORS COMPANY

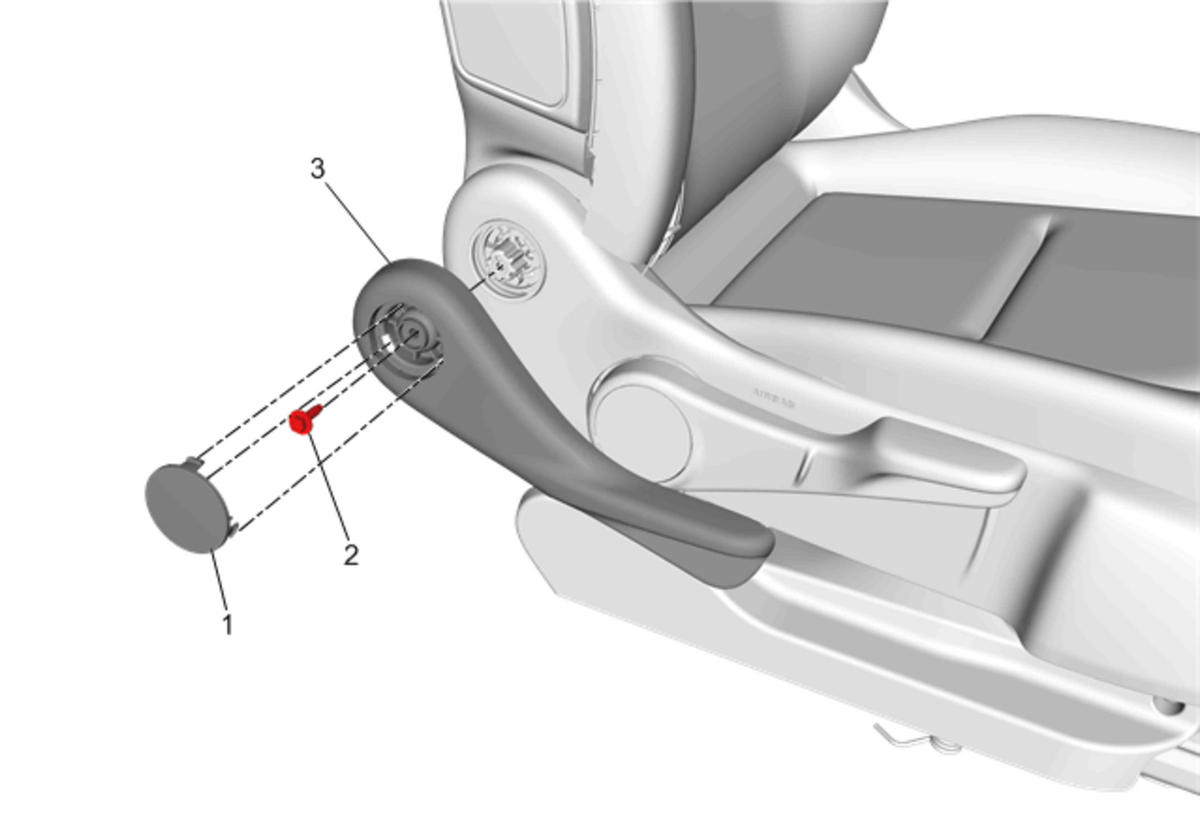

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Front Seat Recliner Handle Bolt Cap Procedure  Use a flat-bladed plastic trim tool to remove the cap.
2	Front Seat Adjuster Actuator Bolt CAUTION: Refer to Fastener Caution . Tighten  5 N.m (44 lb in)
3	Front Seat Recliner Handle
