Installation Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

The supercharger and throttle body may be removed as an assembly. If not servicing the individual components, remove the supercharger as an assembly.
Cover the inlet area of the supercharger to prevent dirt or debris contamination onto the rotors.

Courtesy of GENERAL MOTORS COMPANY

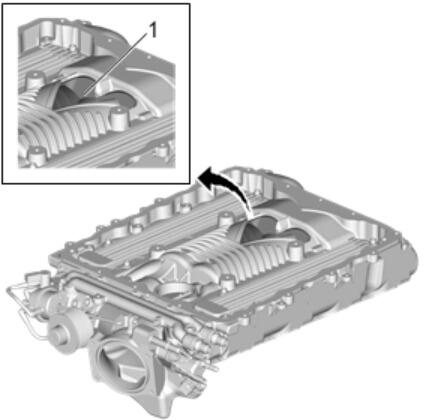

Cover the inlet area of the supercharger (1) to prevent dirt or debris contamination onto the rotors.
Courtesy of GENERAL MOTORS COMPANY

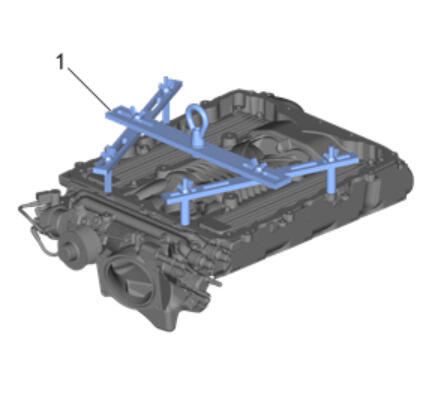

Install the EN-48898 fixture (1) to the supercharger.
Tighten the EN-48898 fixture bolts and nuts until snug.
Courtesy of GENERAL MOTORS COMPANY

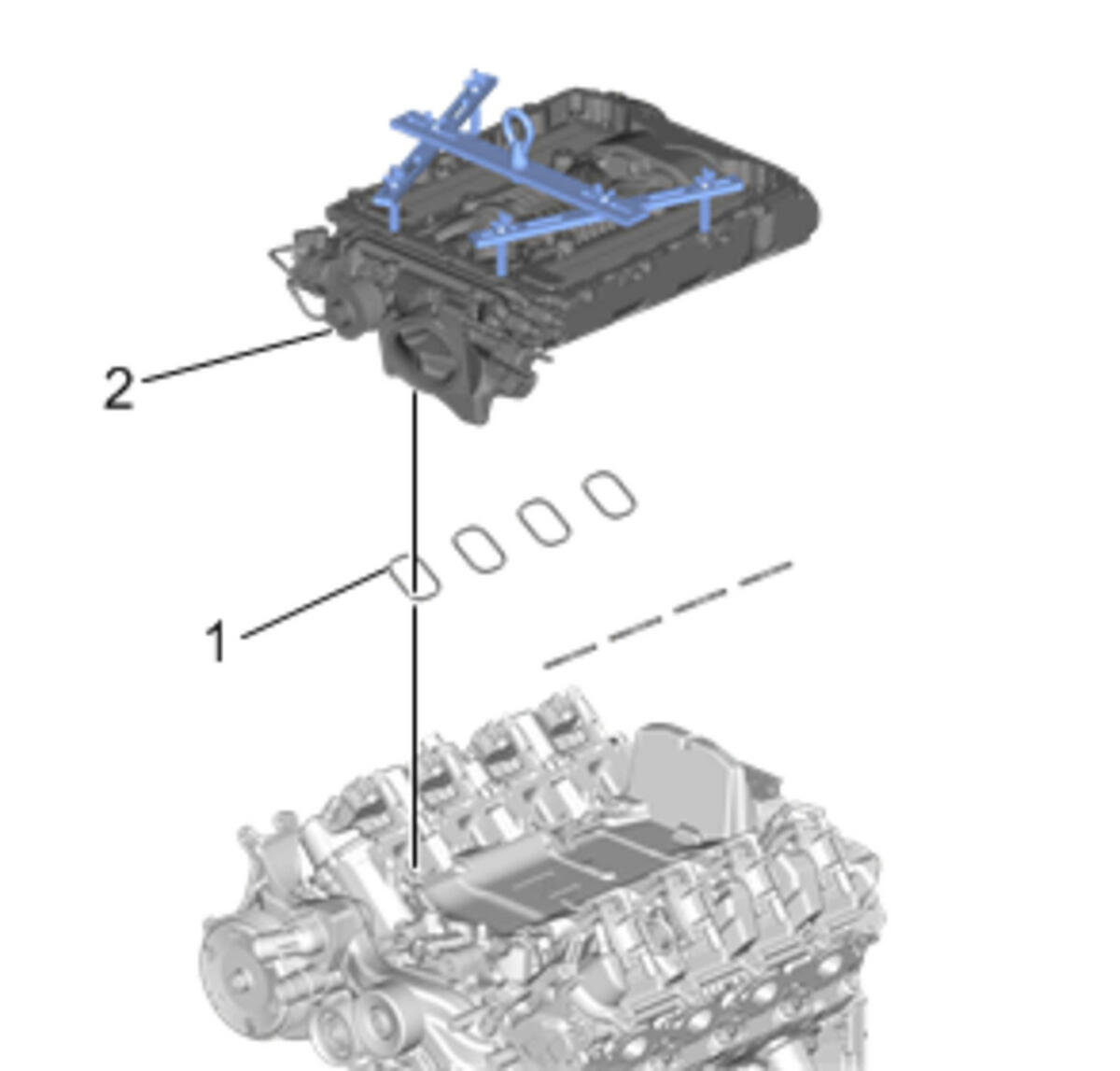

Using the lifting device, install the NEW supercharger gaskets (1) and the supercharger (2) onto the engine. Align the dowel pin at the right front of the supercharger to the cylinder head.
Courtesy of GENERAL MOTORS COMPANY

Remove the EN-48898 fixture (1) from the supercharger.
Courtesy of GENERAL MOTORS COMPANY

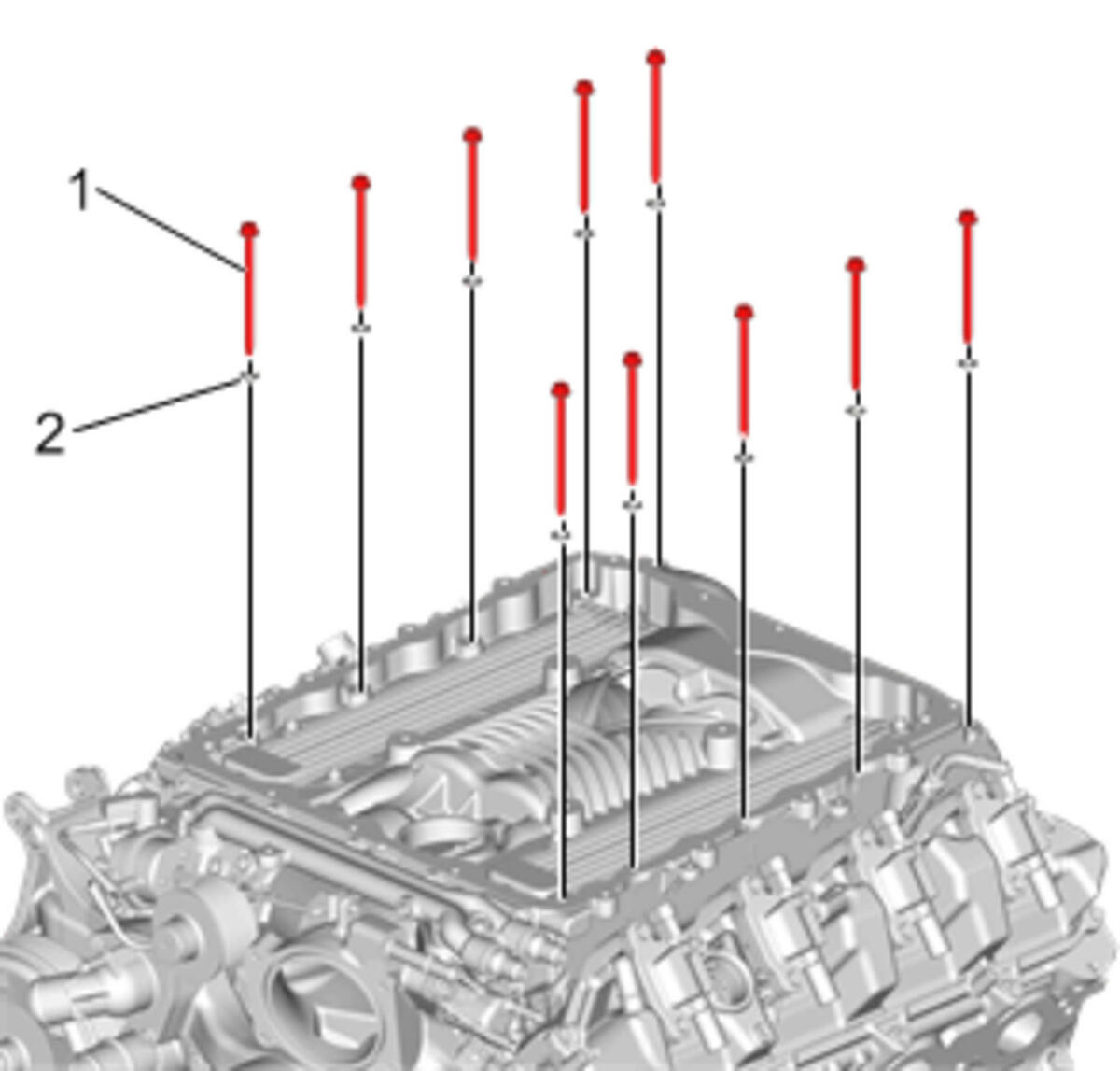

Install the NEW supercharger bolts (1) and sealing washers (2).

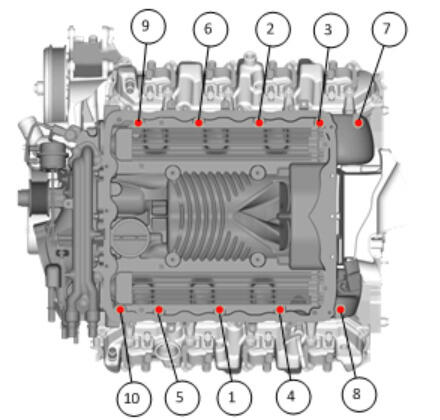

Fig 1: Identifying Supercharger Bolts With Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

NOTE:
The supercharger bolts need to be tightened twice, in sequence, to the same torque value, to ensure the proper bolt clamp load and sealing.

Tighten the bolts.
1. Tighten the bolts a first pass in sequence to 10 N.m (89 lb in).
2. Tighten the bolts a final pass in sequence to 10 N.m (89 lb in).
Connect the supercharger air outlet pressure sensor. Supercharger Air Outlet Pressure Sensor Replacement
Raise the vehicle. Lifting and Jacking the Vehicle (ZL1) , or Lifting and Jacking the Vehicle (Convertible)
Tighten the front cradle bolts. Drivetrain and Front Suspension Cradle Replacement (LT1, LT4)
Lower the vehicle.
Attach and connect harness retainers and connectors as necessary.
Connect the charge air bypass regulator solenoid valve electrical connector. Charge Air Bypass Regulator Solenoid Valve Replacement
Courtesy of GENERAL MOTORS COMPANY

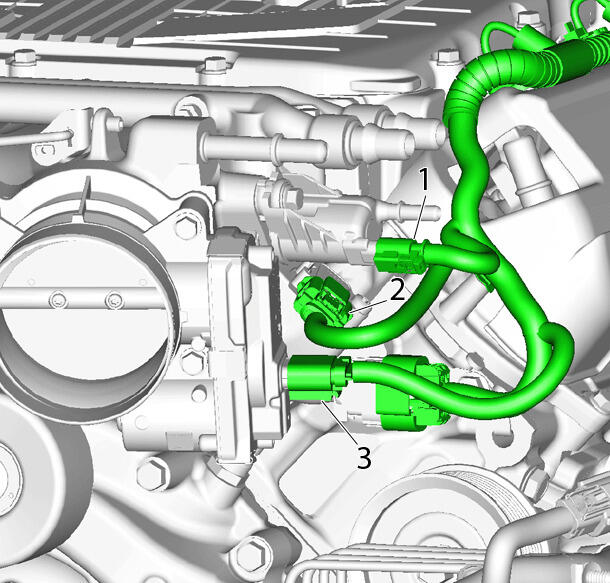

Connect electrical connectors (1, 2, and 3).
Charge Air Cooler Coolant Hose - Connect @ Supercharger Water Manifold - Charge Air Cooler Coolant Hose Replacement - Pump to Cooler (LT4)
Charge Air Cooler Coolant Hose - Connect @ Supercharger Water Manifold - Charge Air Cooler Coolant Hose Replacement - Cooler to Radiator (LT4)
Courtesy of GENERAL MOTORS COMPANY

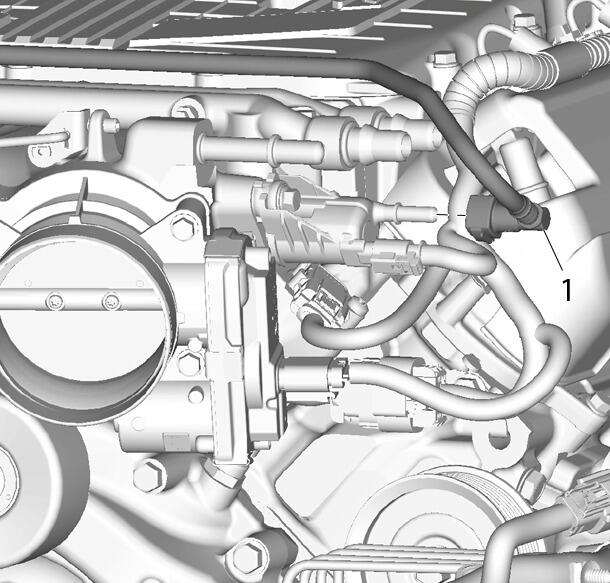

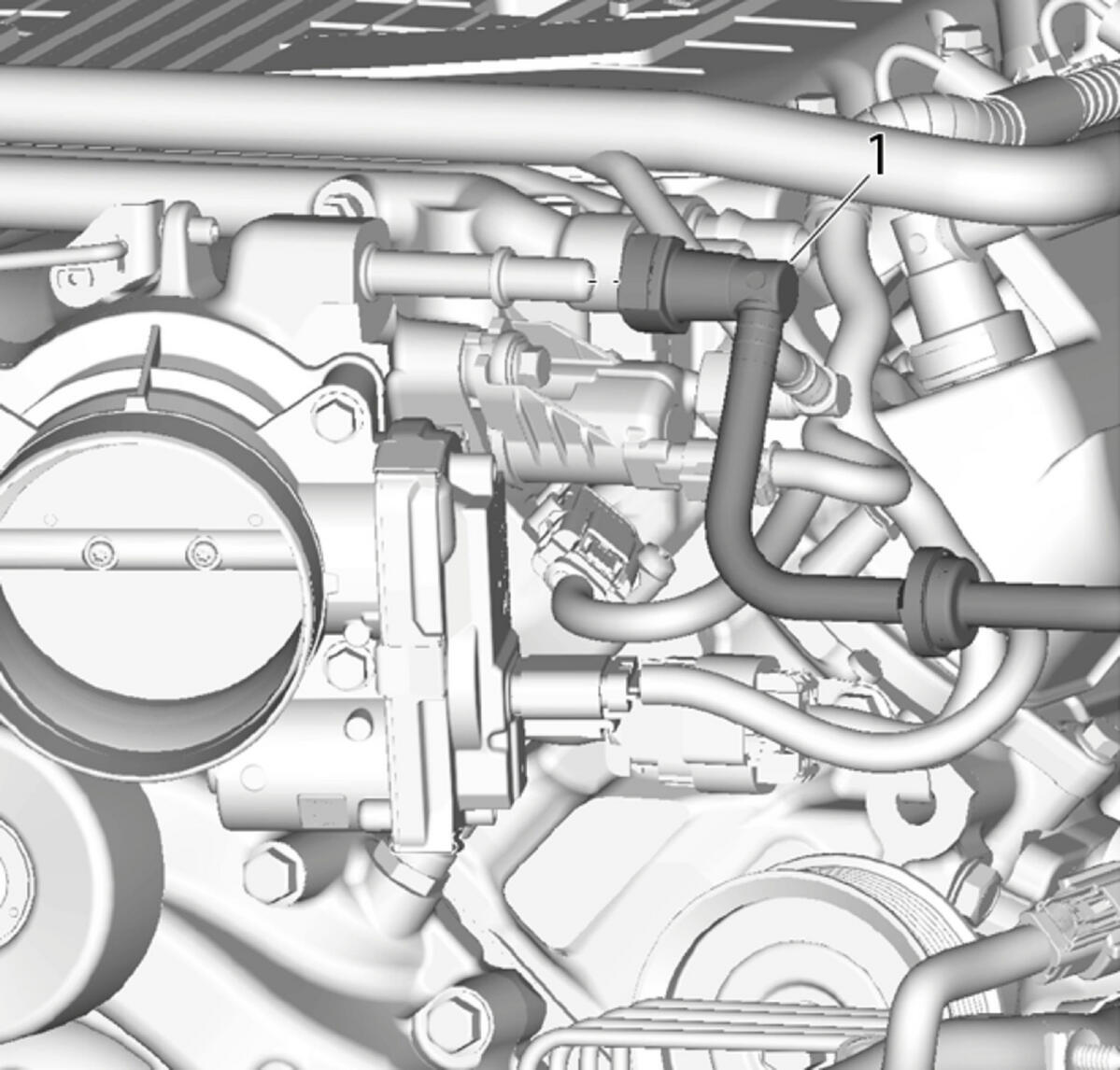

Evaporative Emission Canister Purge Pipe (1) - Connect @ Throttle Body Assembly - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

Positive Crankcase Ventilation Hose (1) - Install - Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Intake Manifold To PCV Valve) , or Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT4 - Left Rocker Arm Cover To Oil Separator) , or Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT4 - Oil Separator To Air Cleaner Outlet Duct) , or Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (LT4 - Right Rocker Arm Cover To Oil Separator)
Courtesy of GENERAL MOTORS COMPANY

Power Brake Booster Vacuum Pipe (1) @ Throttle Body Assembly - Connect - Plastic Collar Quick Connect Fitting Service
Courtesy of GENERAL MOTORS COMPANY

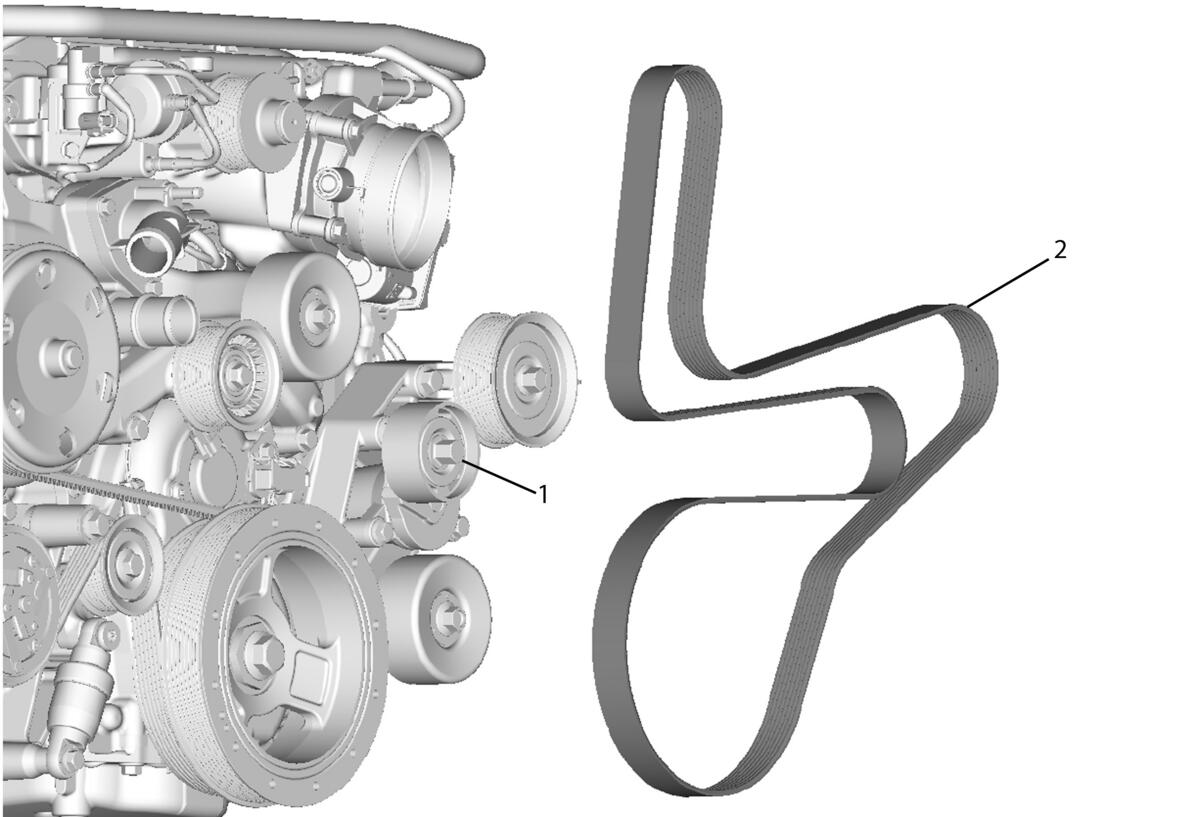

Supercharger Belt (2) - Install - Supercharger Belt Replacement
Courtesy of GENERAL MOTORS COMPANY

Charge Air Cooler Cover (2) - Install - Charge Air Cooler Cover Replacement
Fill the charge air cooling system. Charge Air Cooling System Draining and Filling (LT4)
