Charge Air Cooler Coolant Hose Replacement - Cooler to Radiator (LT4)

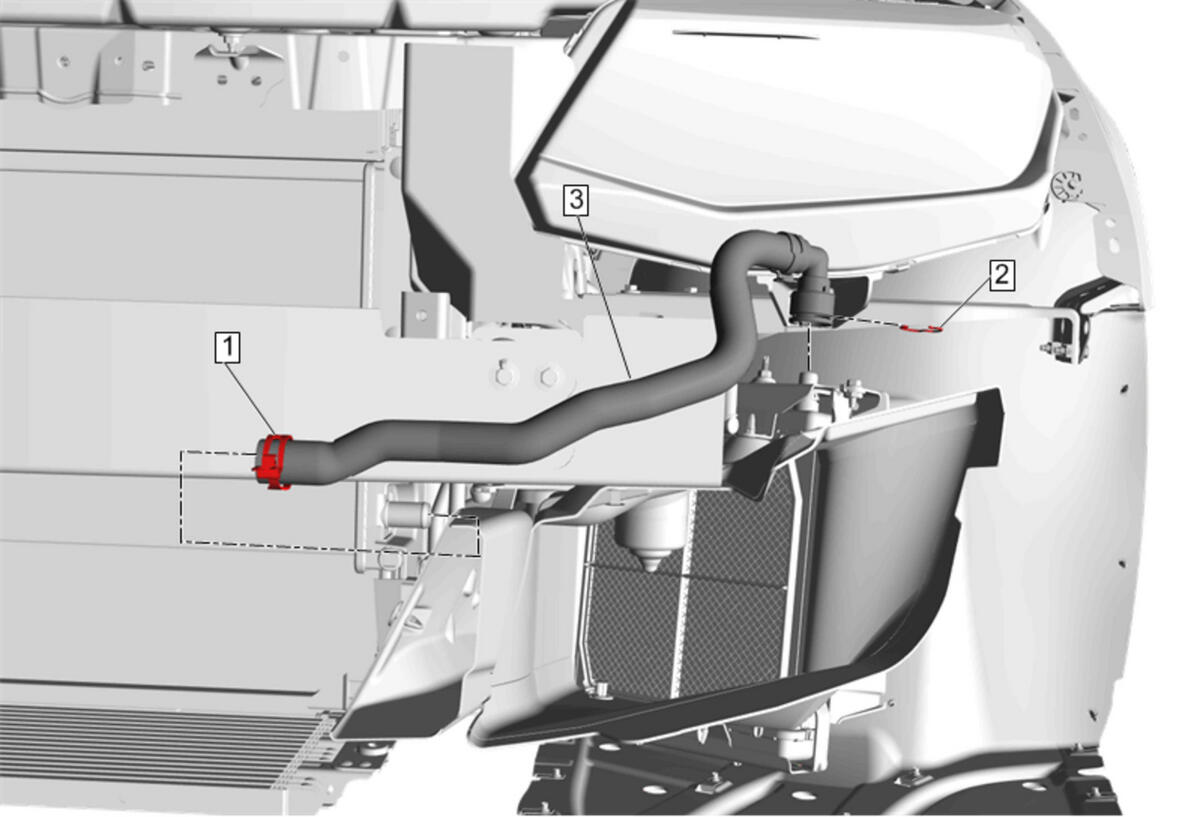

GM4551964Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Drain the charge air cooling system. Charge Air Cooling System Draining and Filling (LT4)
1 Charge Air Cooler Coolant Hose Clamp
Procedure
Hose Clamp Replacement Guidelines - Spring Type
2 Charge Air Cooler Retainer
3 Charge Air Cooler Coolant Hose

Procedure

  1. Fill the coolant to the proper level. Charge Air Cooling System Draining and Filling (LT4)
  2. Inspect for coolant leaks.
