Charge Air Bypass Regulator Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

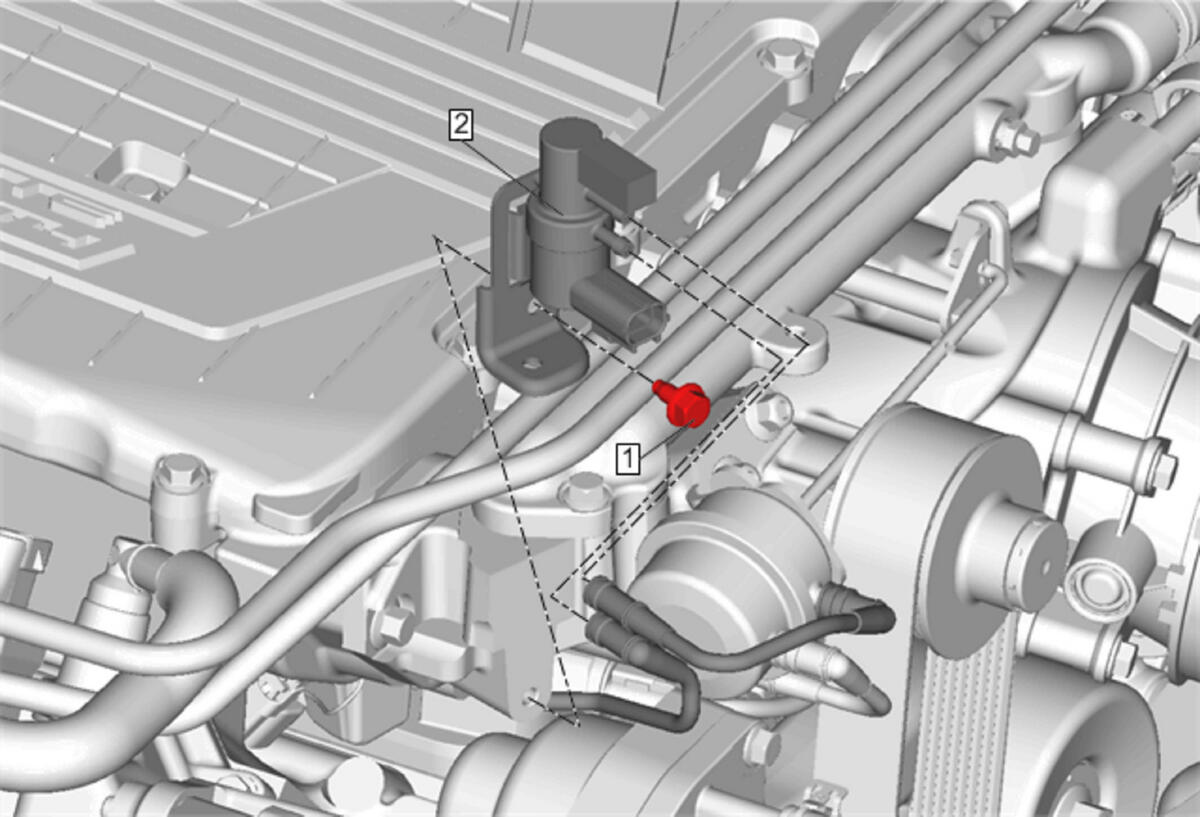

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
1	Charge Air Bypass Regulator Solenoid Valve Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Charge Air Bypass Regulator Solenoid Valve Procedure Disconnect the harness connector. Disconnect the vacuum tubes from the charge air bypass regulator solenoid valve.

Callout

Component Name

Charge Air Bypass Regulator Solenoid Valve Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Charge Air Bypass Regulator Solenoid Valve

Procedure

Disconnect the harness connector.
Disconnect the vacuum tubes from the charge air bypass regulator solenoid valve.
