Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Body Side Upper Front Applique (3) - Remove - Body Side Upper Front Applique Replacement
Courtesy of GENERAL MOTORS COMPANY

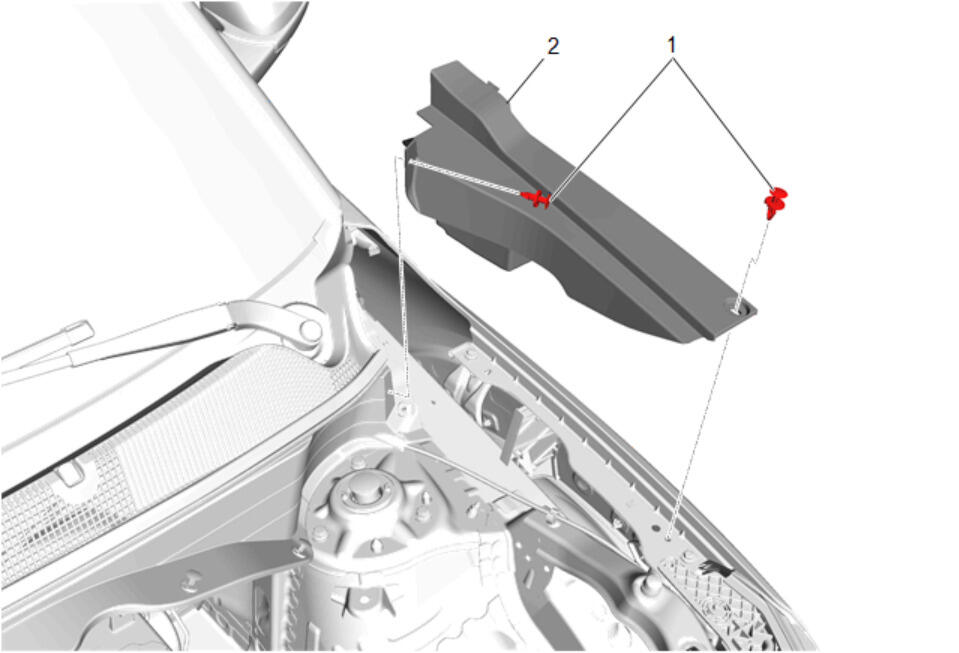

Front Compartment Side Sight Shield (2) - Remove - Front Compartment Side Sight Shield Replacement
Courtesy of GENERAL MOTORS COMPANY

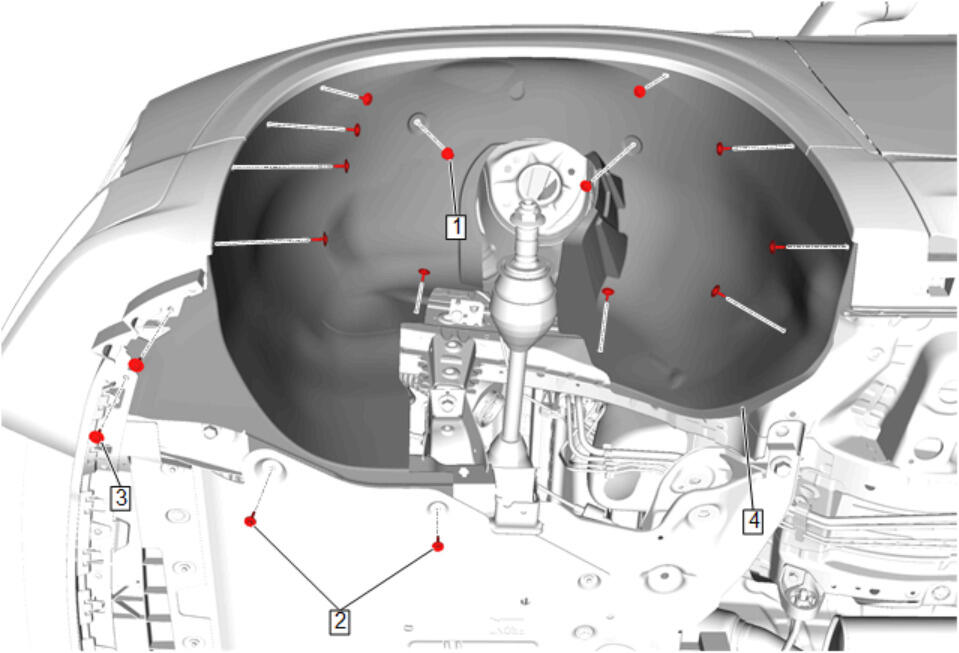

Front Wheelhouse Liner (4) - Remove - Front Wheelhouse Liner Replacement
Courtesy of GENERAL MOTORS COMPANY

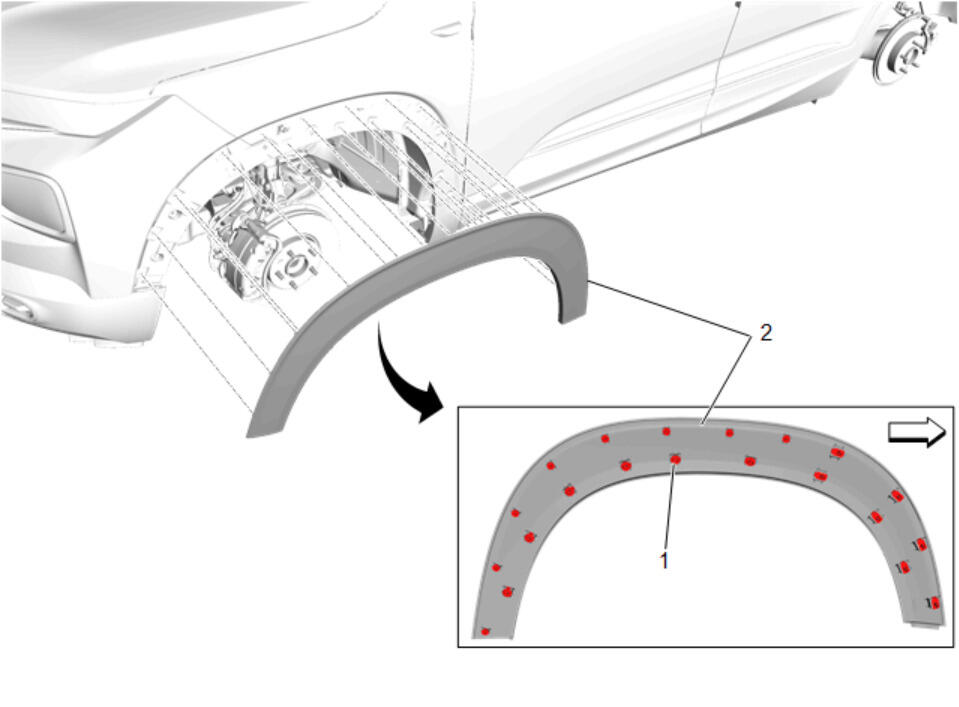

Front Wheel Opening Molding (2) - Remove - Front Wheel Opening Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

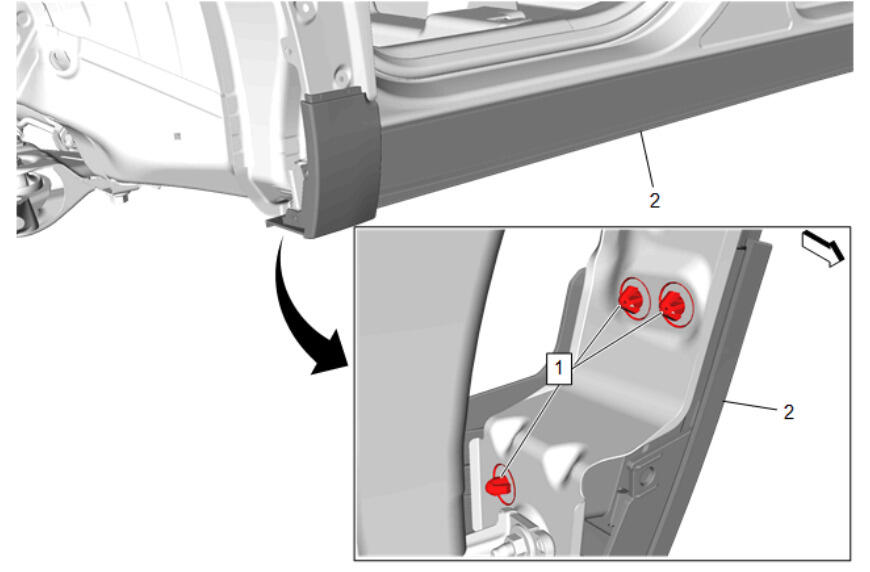

Rocker Panel Molding Retainer (1) - Remove [3x]
Partially remove the rocker panel molding (2). Rocker Panel Molding Replacement
Courtesy of GENERAL MOTORS COMPANY

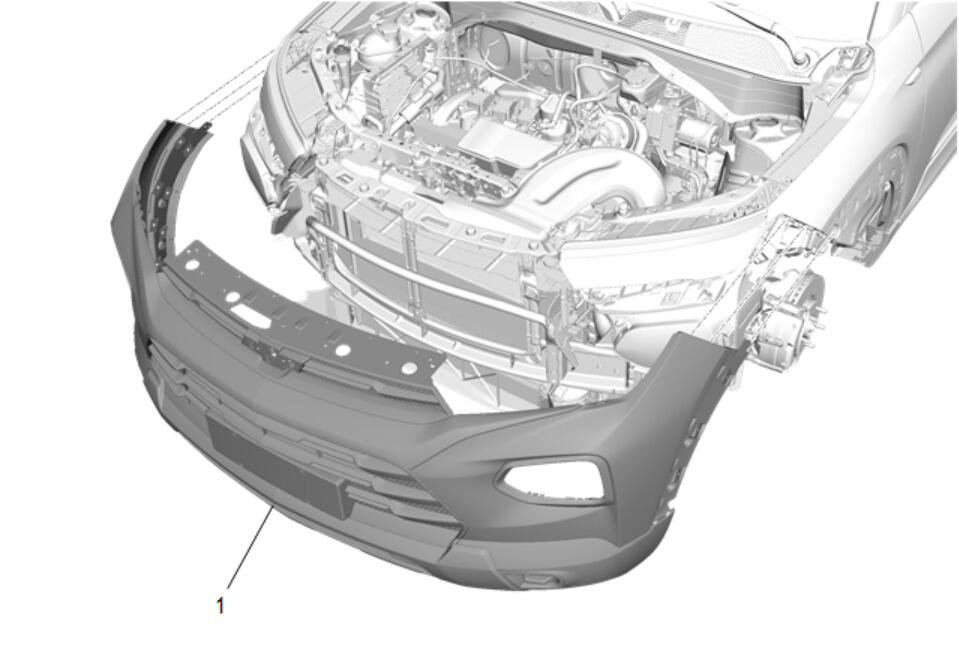

Front Bumper Fascia (1) - Remove - Front Bumper Fascia Replacement
Courtesy of GENERAL MOTORS COMPANY

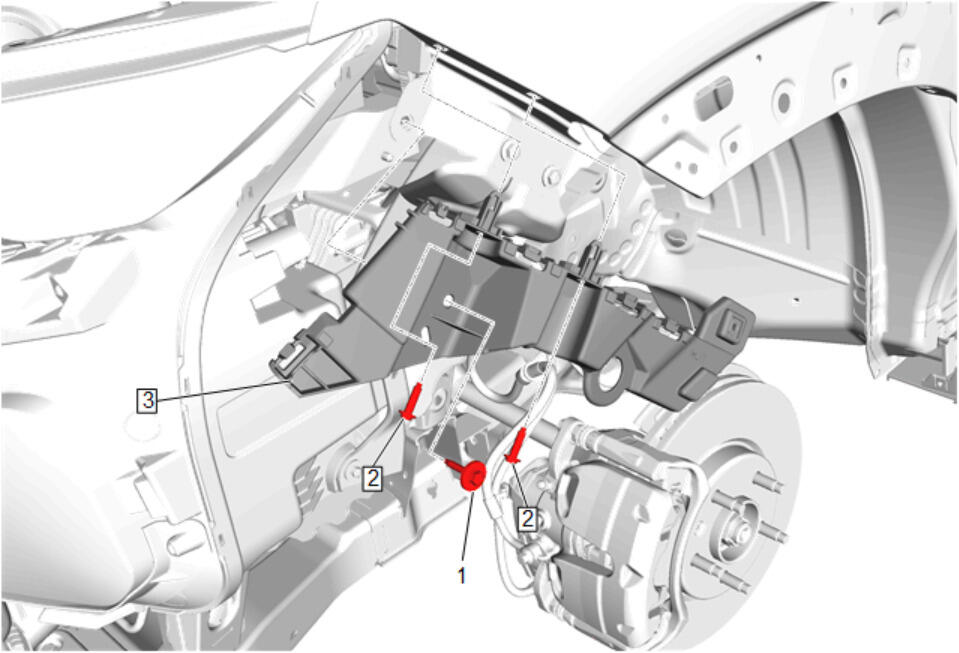

Front Bumper Fascia Guide (3) - Remove - Front Bumper Fascia Guide Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Fender Insulator (2) - Remove - Front Fender Insulator Replacement
Courtesy of GENERAL MOTORS COMPANY

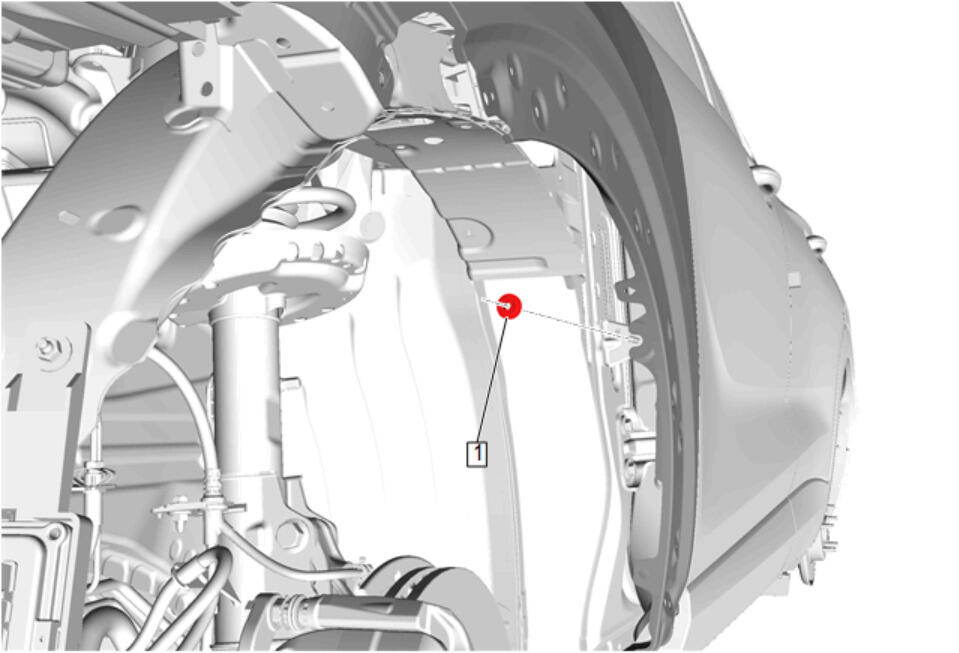

Front Fender Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

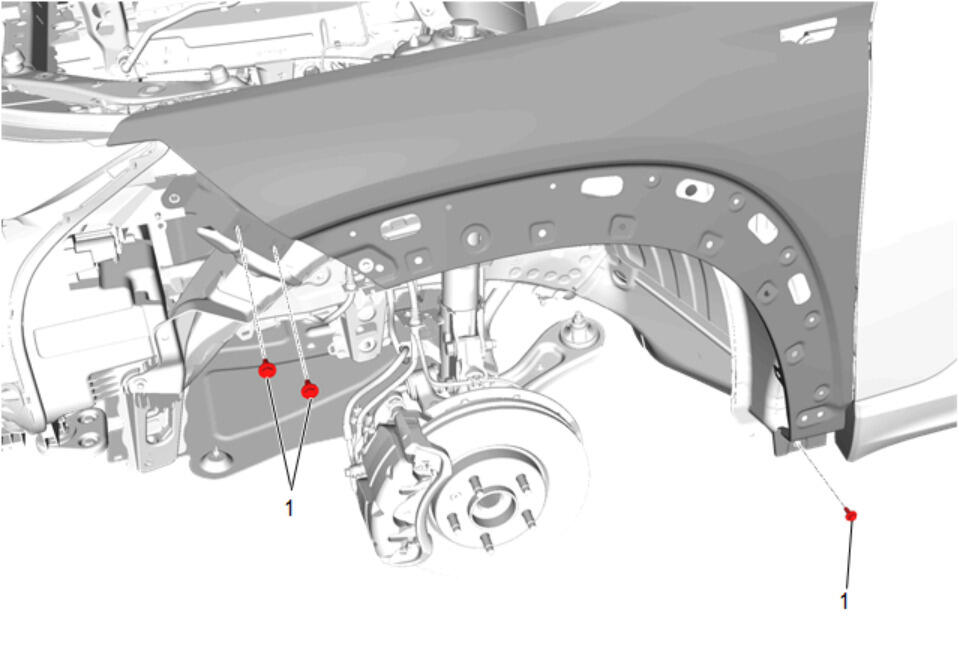

Front Fender Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

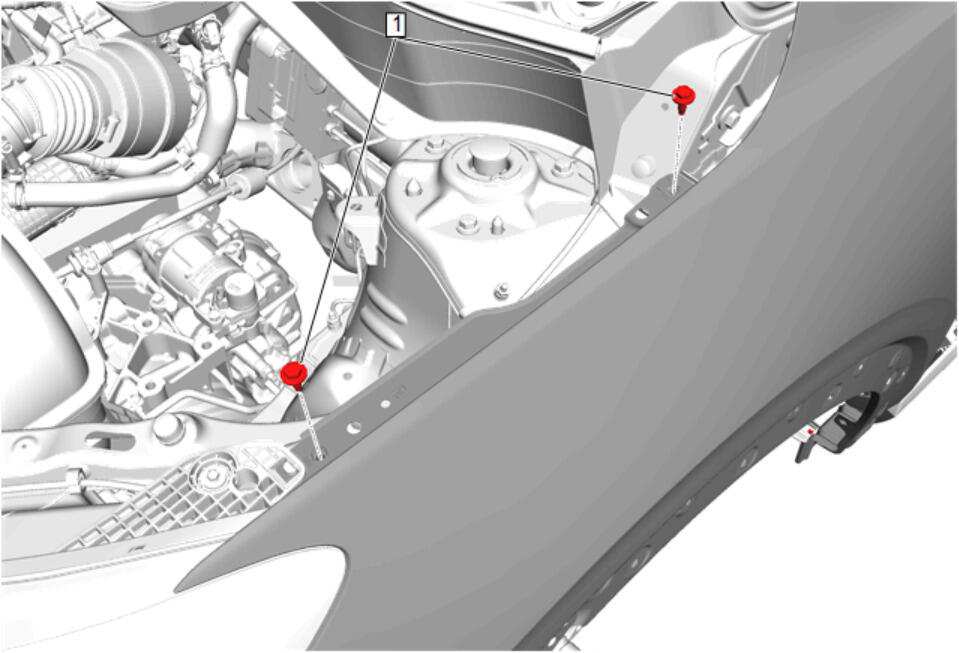

Front Fender Bolt (1) - Remove [3x]
Courtesy of GENERAL MOTORS COMPANY

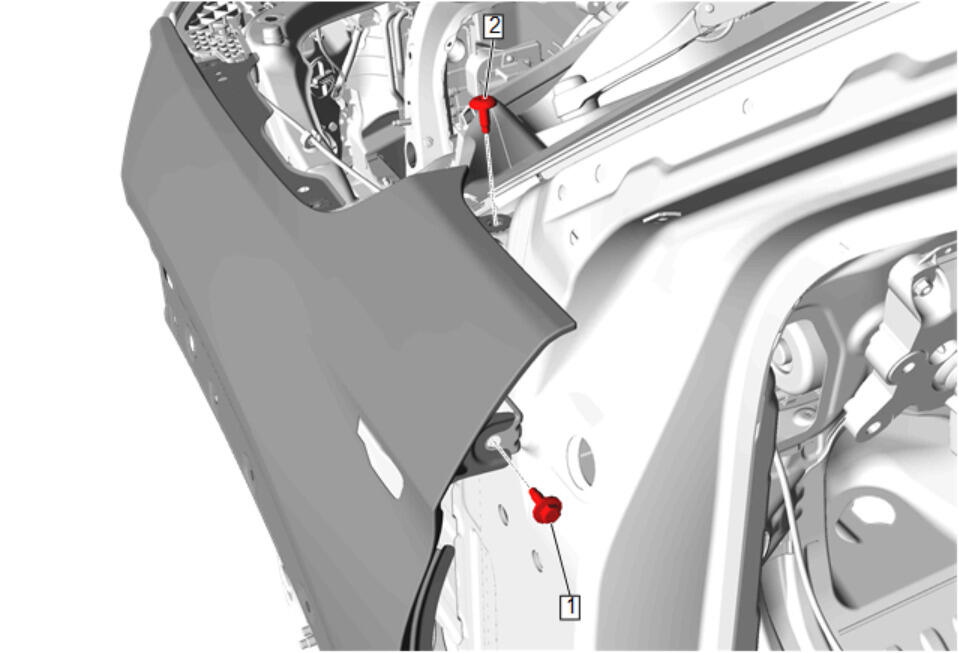

Front Fender Bolt (1) - Remove
Front Fender Screw (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

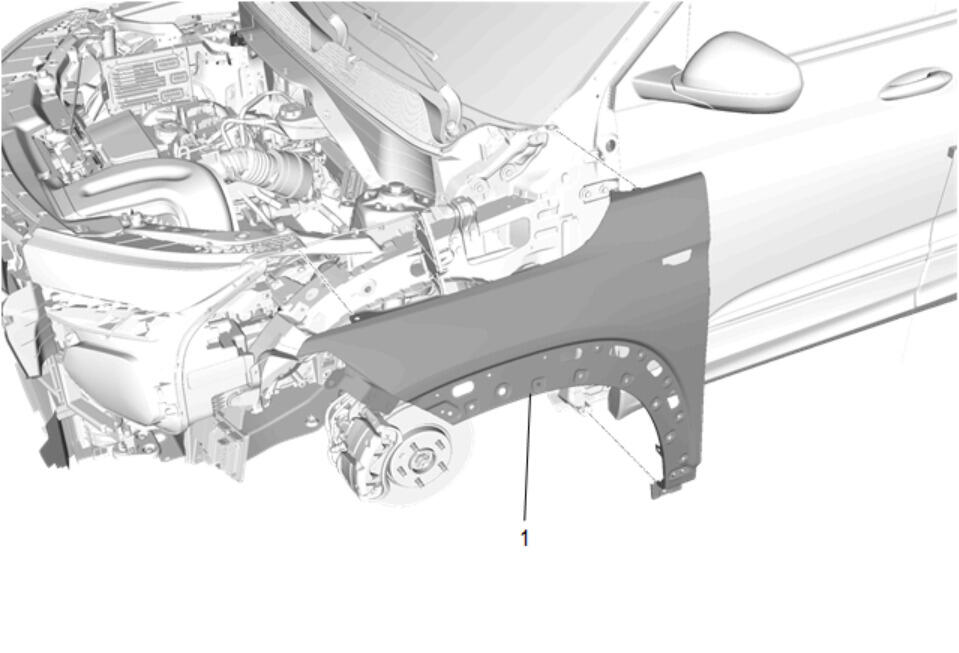

Front Fender (1) - Remove
