Installation Procedure

  1. GM5362115Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel (1) - Install

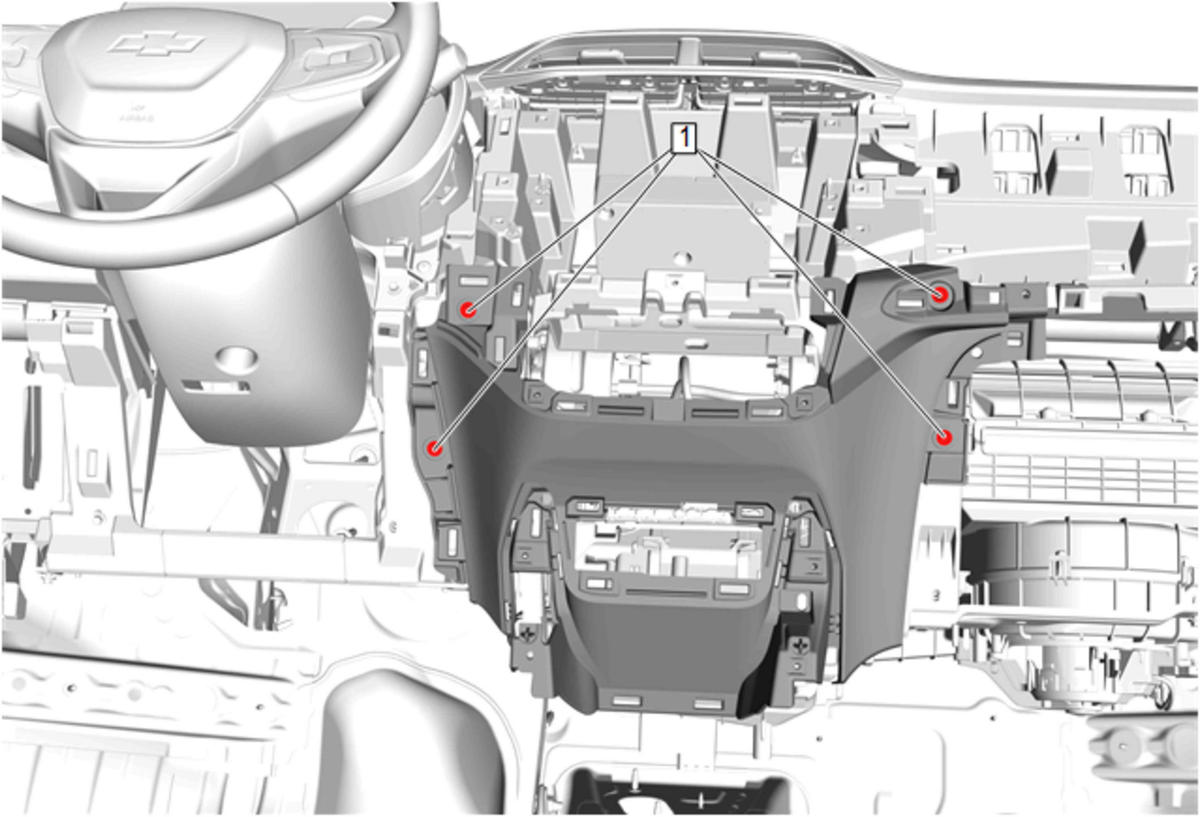

  2. GM5362114Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Lower Center Trim Panel Bolt (1) - Install and tighten [4x] 2.5 N.m (22 lb in)

  3. GM5314314Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Storage Tray (2) - Install - Front Floor Console Stowage Tray Replacement

  4. GM5165361Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console (1) - Install - Front Floor Console Replacement

  5. GM5313189Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Accessory Bezel (1) - Install - Instrument Panel Accessory Bezel Replacement (UST) , or Instrument Panel Accessory Bezel Replacement (MCR)

  6. GM5362080Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (2) - Install - Instrument Panel Compartment Replacement

  7. GM5361415Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Airbag - Passenger Side (2) - Install - Instrument Panel Lower Airbag Replacement - Passenger Side

  8. GM5361421Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Insulator (3) - Install - Instrument Panel Lower Trim Panel Insulator Replacement

  9. GM5312458Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Install - Instrument Panel Trim Plate Applique Replacement

  10. GM5312964Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Tray Liner (1) - Install - Instrument Panel Compartment Tray Liner Replacement

  11. GM5314458Courtesy of GENERAL MOTORS COMPANY

    Heater and Air Conditioning User Interface Control (2) - Install - Heater and Air Conditioning User Interface Control Replacement

  12. GM5312426Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (2) - Install - Instrument Panel Center Trim Plate Applique Replacement

  13. GM5312124Courtesy of GENERAL MOTORS COMPANY

    Radio Control (2) - Install - Radio Control Assembly Replacement

  14. GM5312083Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad (1) - Right Side - Install - Instrument Panel Trim Pad Replacement - Right Side

  15. GM5311527Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate (1) - Install - Instrument Panel Trim Plate Replacement (8 Inch Display with IOR, IOS) , or Instrument Panel Trim Plate Replacement (7 Inch Display with IOR)

  16. GM5311451Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Plate Applique (1) - Install - Instrument Panel Lower Center Trim Plate Applique Replacement

  17. GM5311388Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement

  18. GM5153389Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Outer Trim Cover - Left Side (1) - Install - Instrument Panel Outer Trim Cover Replacement - Left Side
