Air Inlet Grille Panel Replacement

Courtesy of GENERAL MOTORS COMPANY

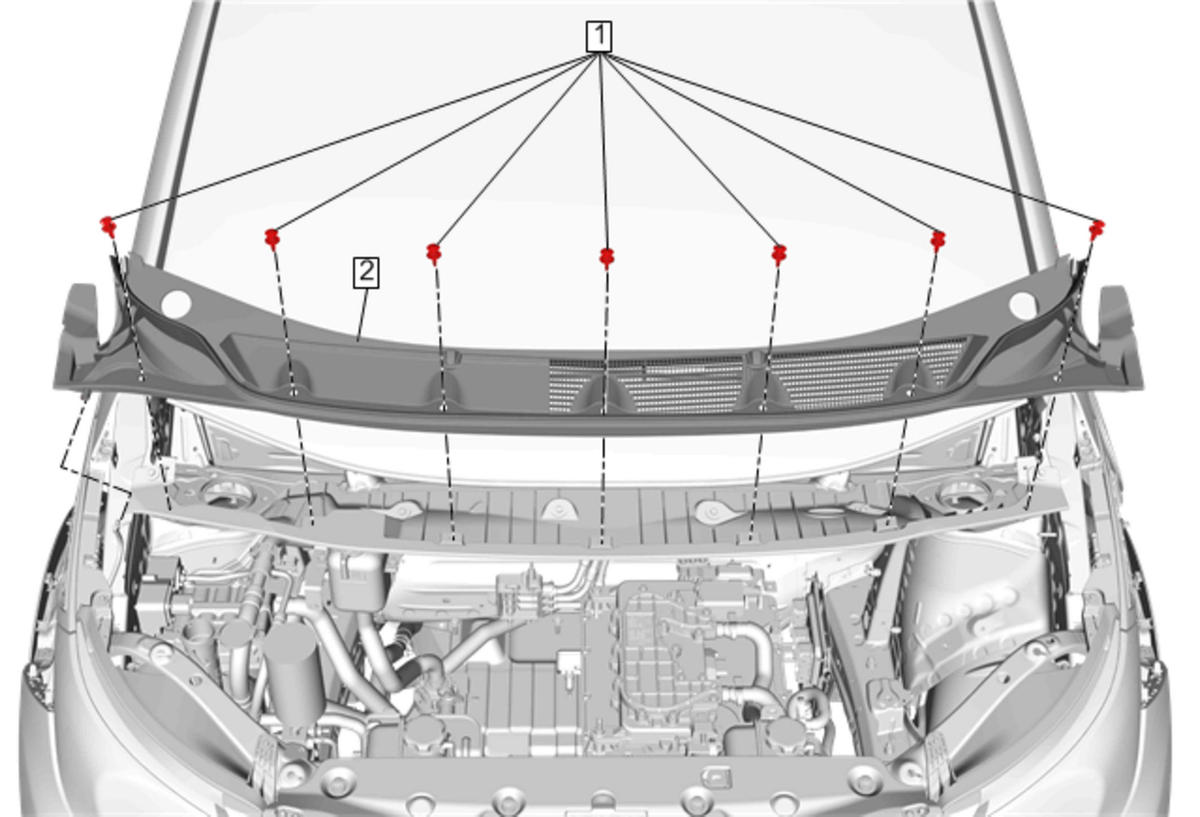

Callout	Component Name
Preliminary Procedures Windshield Wiper Arm Replacement Air Inlet Grille Panel Extension Replacement
1	Air Inlet Grille Panel Retainer Procedure Air Inlet Grille Panel Retainer @ Air Inlet Grille Panel - Remove
2	Air Inlet Grille Panel Procedure Windshield Washer Nozzle Hose @ Windshield Washer Pump Hose - Disconnect– Windshield Washer Nozzle Hose Replacement

Callout

Component Name

Preliminary Procedures

Air Inlet Grille Panel Retainer
Procedure
Air Inlet Grille Panel Retainer @ Air Inlet Grille Panel - Remove

Air Inlet Grille Panel
Procedure
Windshield Washer Nozzle Hose @ Windshield Washer Pump Hose - Disconnect– Windshield Washer Nozzle Hose Replacement
