Air Inlet Grille Panel Extension Replacement

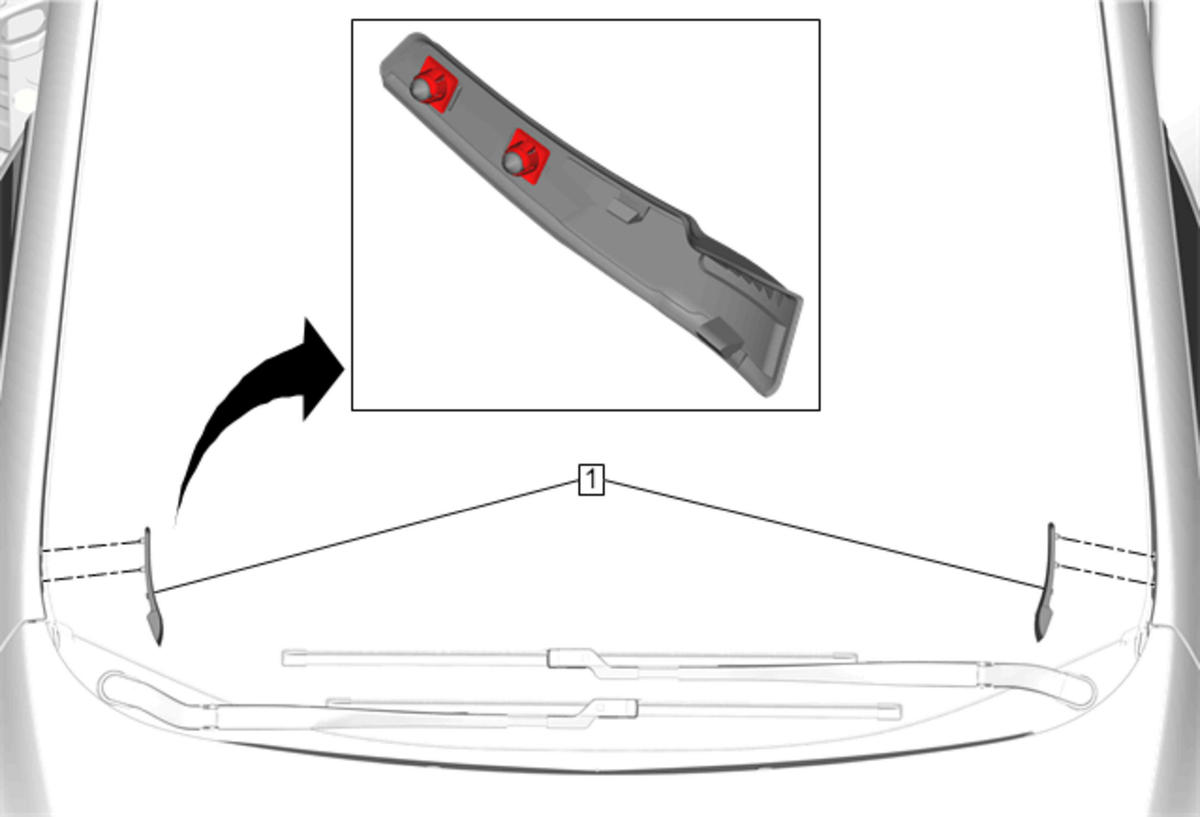

GM4534840Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Air Inlet Grille Panel Extension
Procedure
Grasp the air inlet grille panel extension and disengage the retainers from the body side outer.
