Windshield Washer Nozzle Hose Replacement

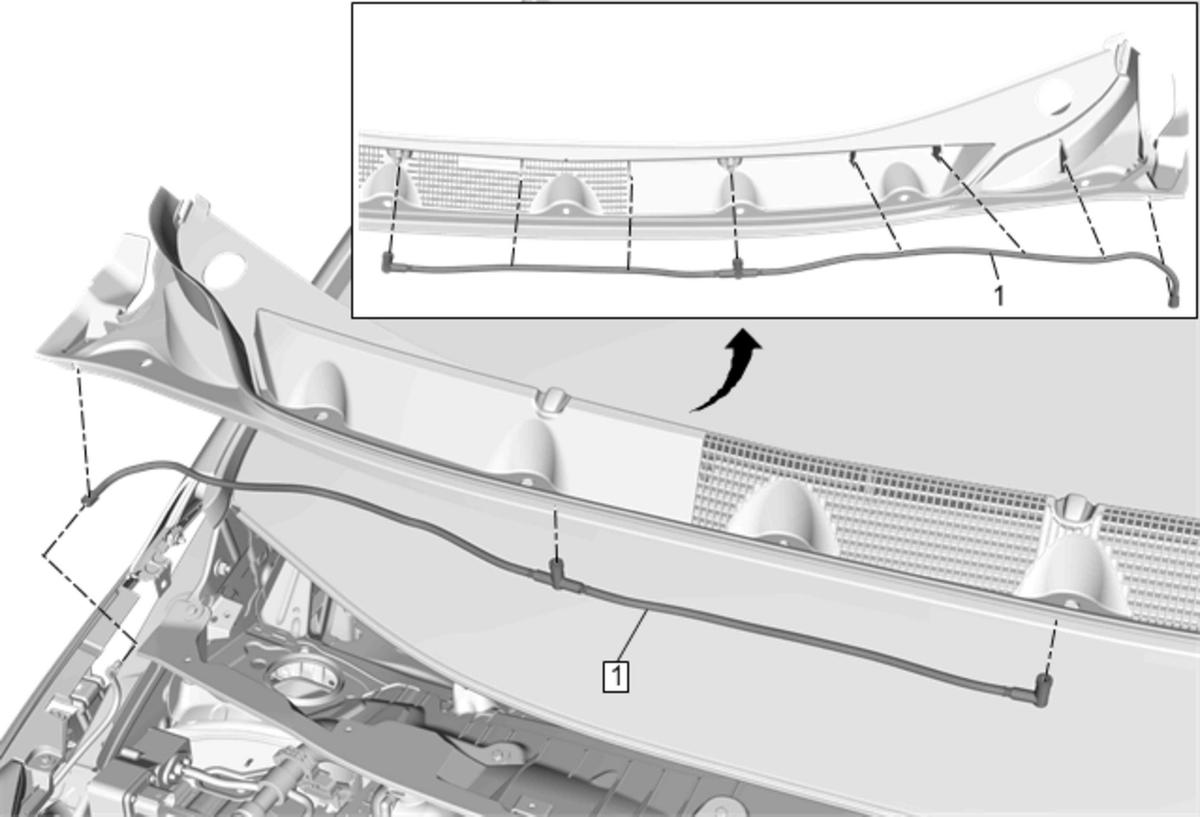

GM4534843Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Air Inlet Grille Panel Replacement
  2. Reposition air inlet grille foam seal.
1 Windshield Washer Nozzle Hose

Procedure

  1. Windshield Washer Nozzle Hose @ Air Inlet Grille Panel - Disconnect
  2. Windshield Washer Nozzle Hose @ Windshield Washer Nozzle - Disconnect
  3. Windshield Washer Nozzle Hose - Remove
