Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

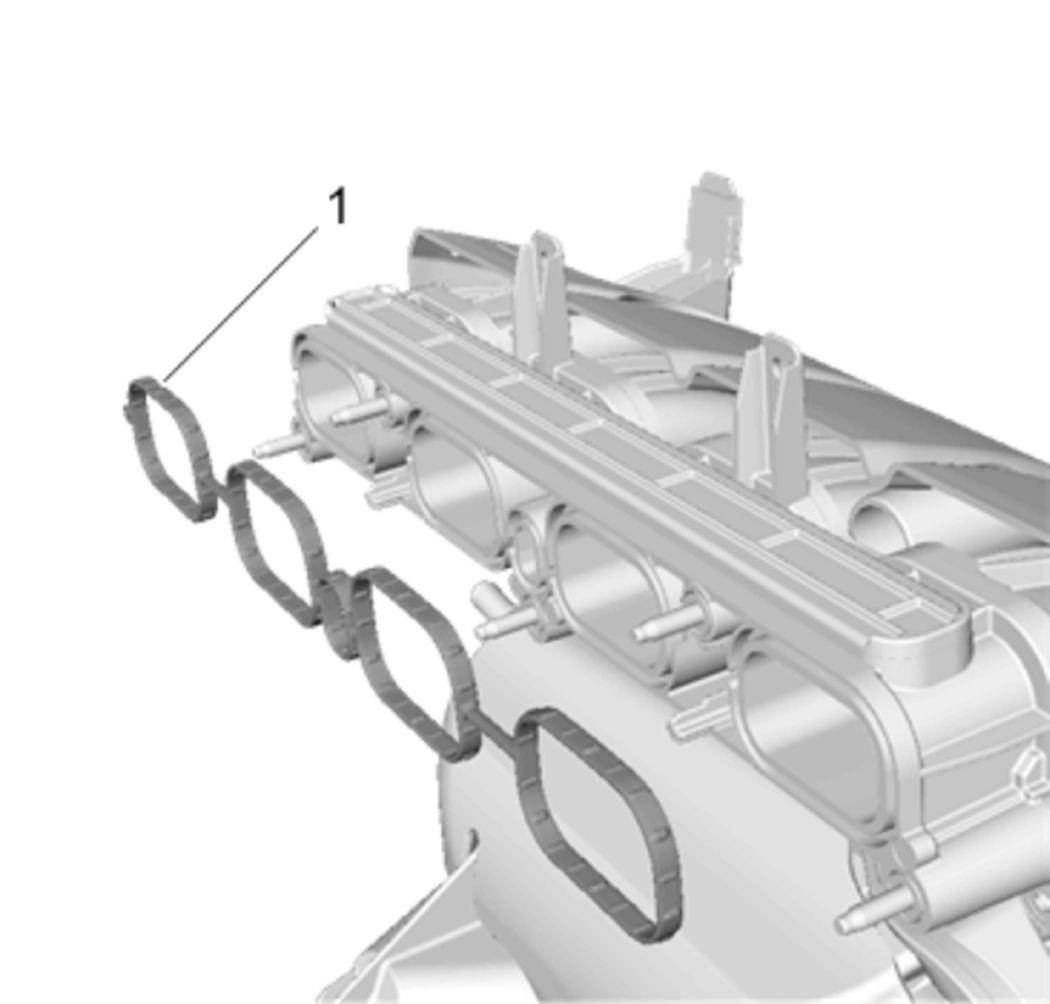

Intake Manifold Gasket (1) - Install NEW
Intake Manifold (3) - Move into position
Courtesy of GENERAL MOTORS COMPANY

Fuel Injection Fuel Rail Fuel Pressure Sensor - Install - Fuel Rail Pressure Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Install the intake manifold upside down as it was removed, and rotate into position.

Intake Manifold (3) - Install
Upper Intake Manifold Bolt (2) - Loosely install [5x]
Raise the vehicle. Lifting and Jacking the Vehicle

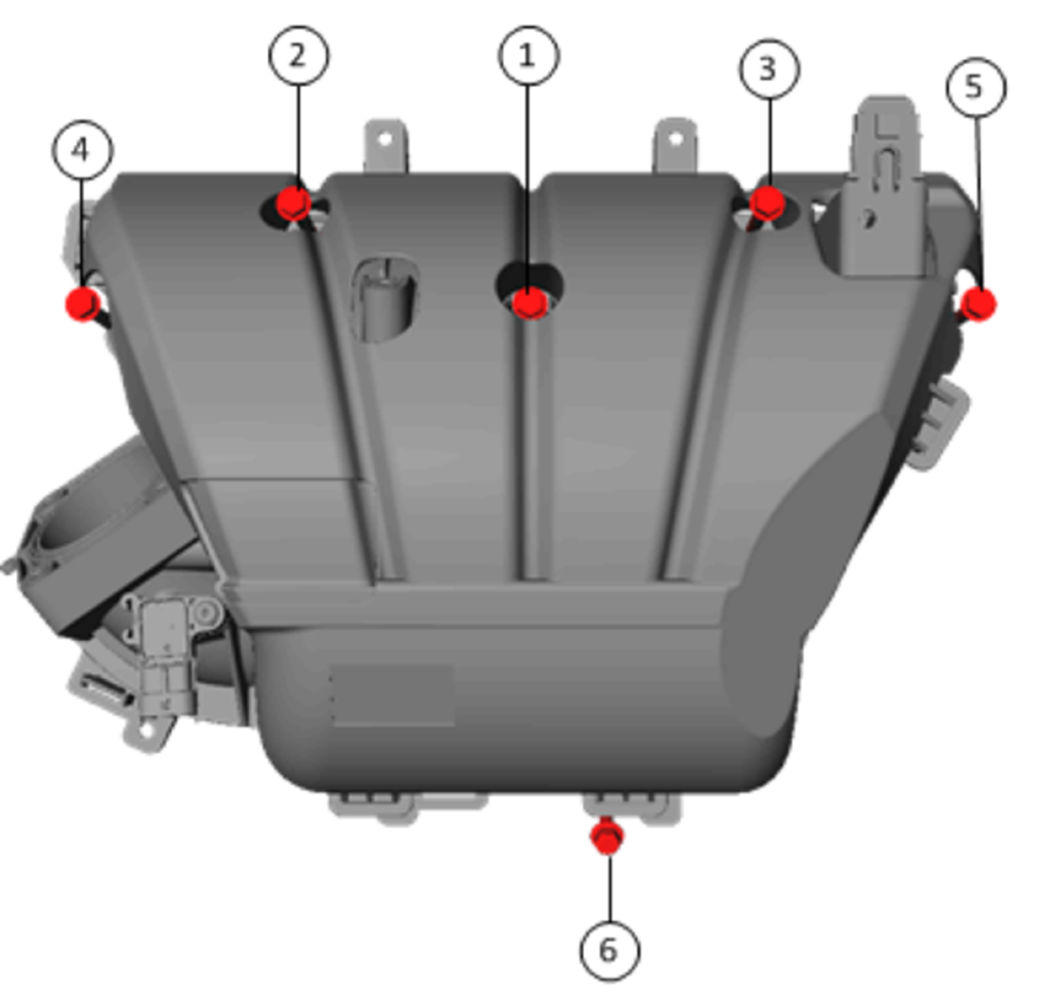

Fig 1: Identifying Intake Manifold Bolts With Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

Lower Intake Manifold Bolt (1) - Loosely install
Intake Manifold Bolt - Tighten [6x] - Intake Manifold Installation
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Inspect the O-ring and replace if necessary.

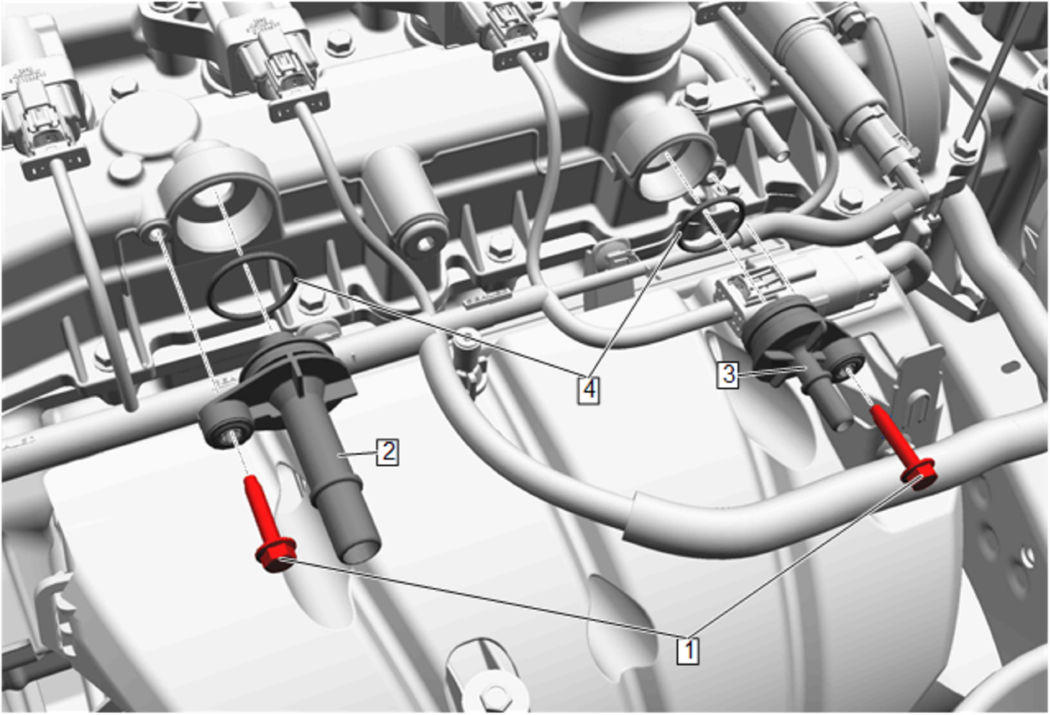

Positive Crankcase Ventilation Valve Seal (4) - Install NEW [2x]
Install the positive crankcase ventilation valve - fresh (3).
Install the positive crankcase ventilation valve - secondary (2).
Positive Crankcase Ventilation Valve Bolt (1) - Install [2x] - Positive Crankcase Ventilation Valve Replacement (Rear) , or Positive Crankcase Ventilation Valve Replacement (Front)
Courtesy of GENERAL MOTORS COMPANY

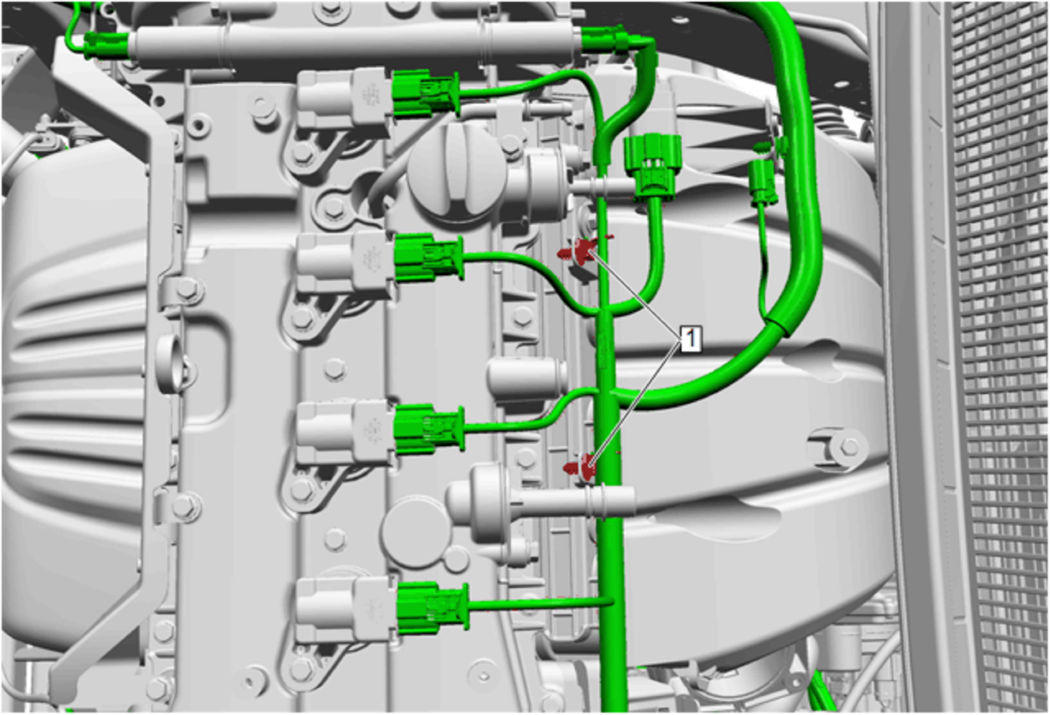

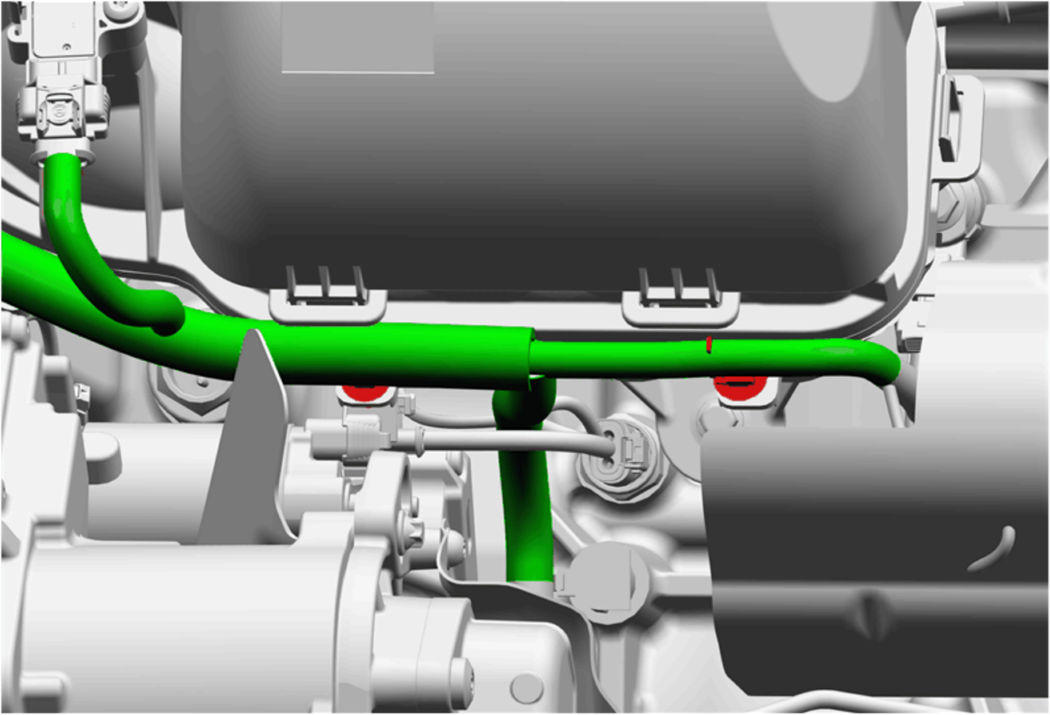

Engine Wiring Harness Retainer (1) @ Intake Manifold - Install [2x]
Lower the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

Engine Wiring Harness Retainer (1) @ Intake Manifold - Install [2x]
Courtesy of GENERAL MOTORS COMPANY

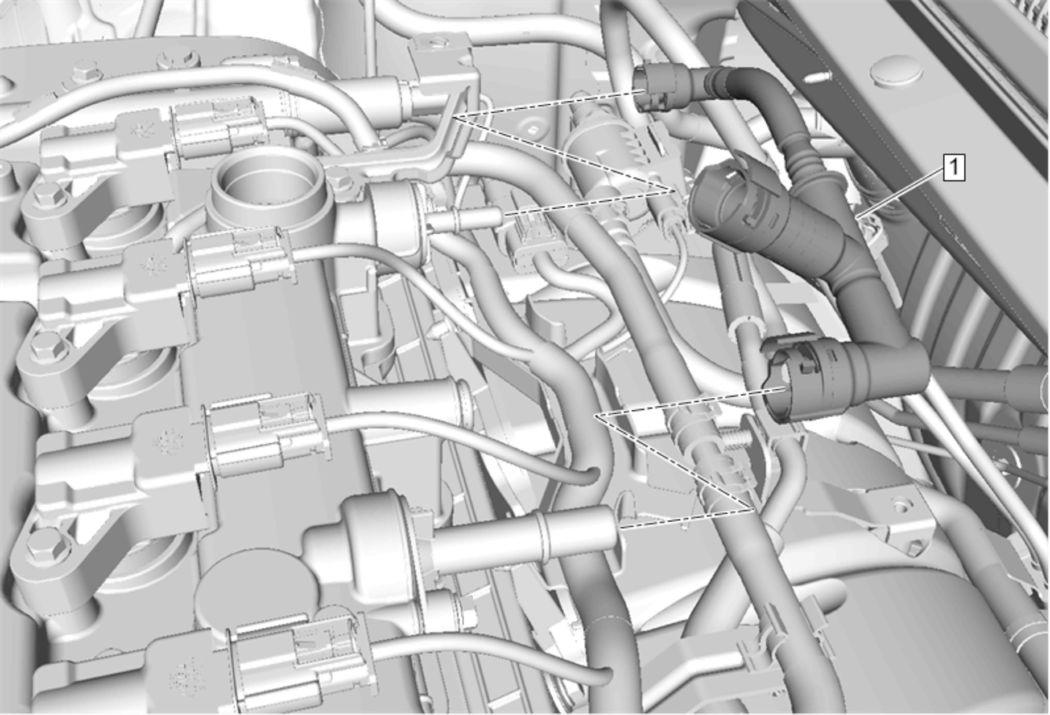

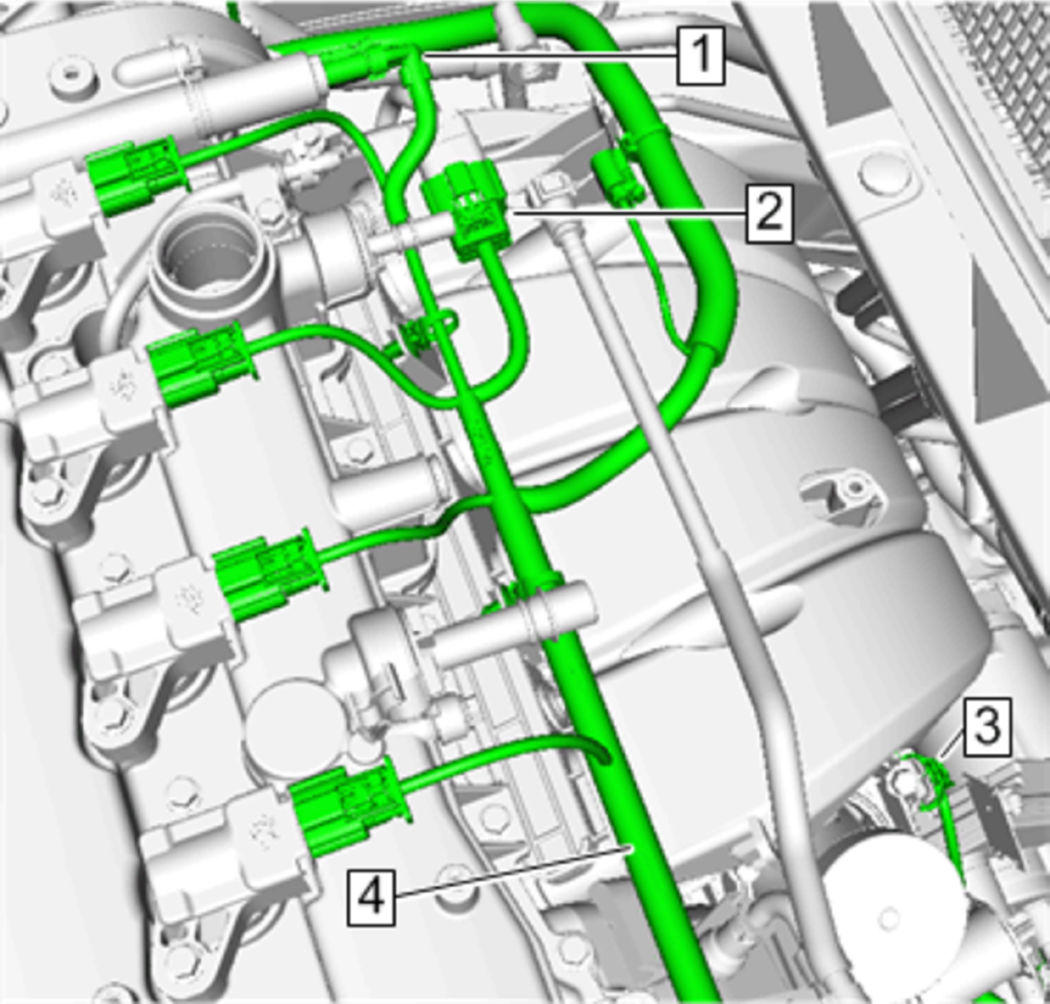

Engine Wiring Harness (4) - Reposition
Electrical Connector (3) - Connect
Electrical Connector (2) - Connect
Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

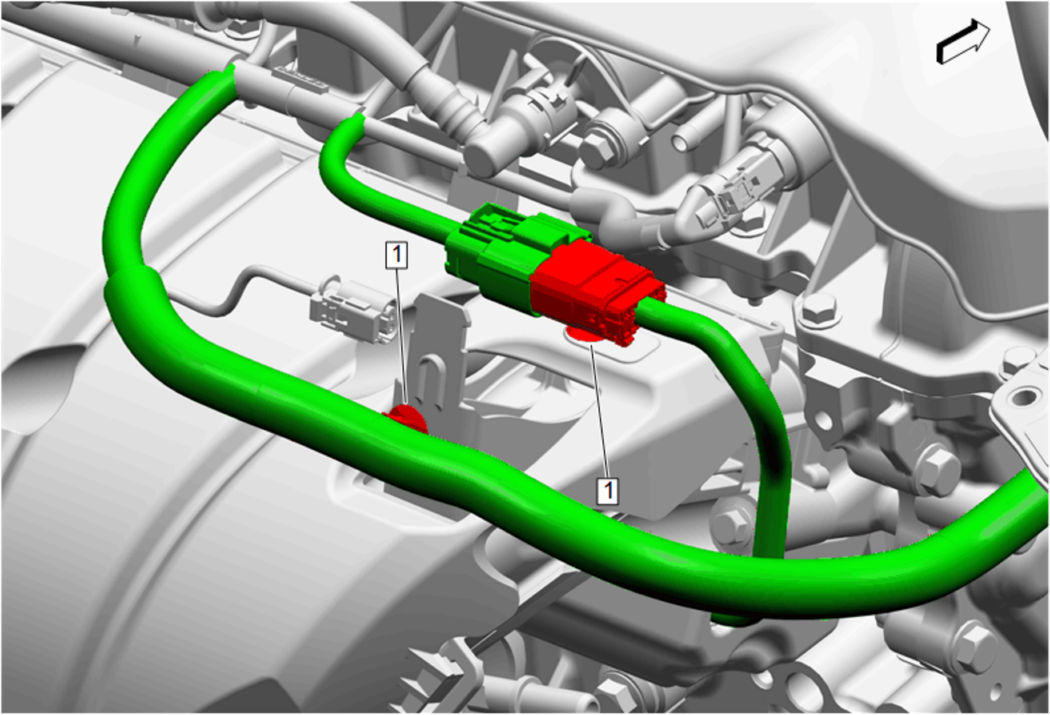

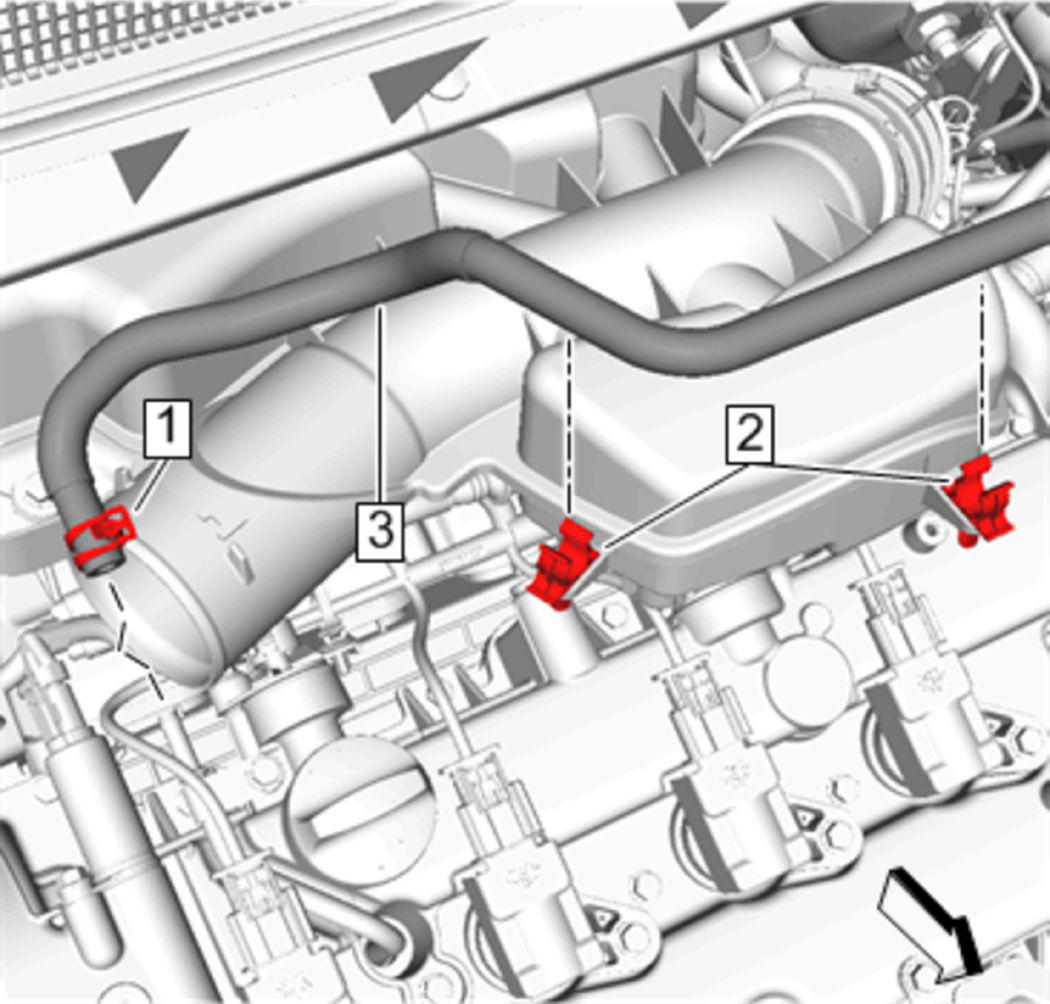

Engine Wiring Harness Retainer (1) @ Intake Manifold - Install [2x]
Engine Coolant Air Bleed Hose @ Engine Coolant Air Bleed Pipe - Connect - Engine Coolant Air Bleed Pipe Replacement (LCV)
Courtesy of GENERAL MOTORS COMPANY

Radiator Surge Tank Inlet Hose (3) @ Engine Coolant Air Bleed Pipe - Install - Engine Coolant Air Bleed Pipe Replacement (LCV)
Courtesy of GENERAL MOTORS COMPANY

Throttle Body Assembly (2) - Install - Throttle Body Assembly Replacement
Courtesy of GENERAL MOTORS COMPANY

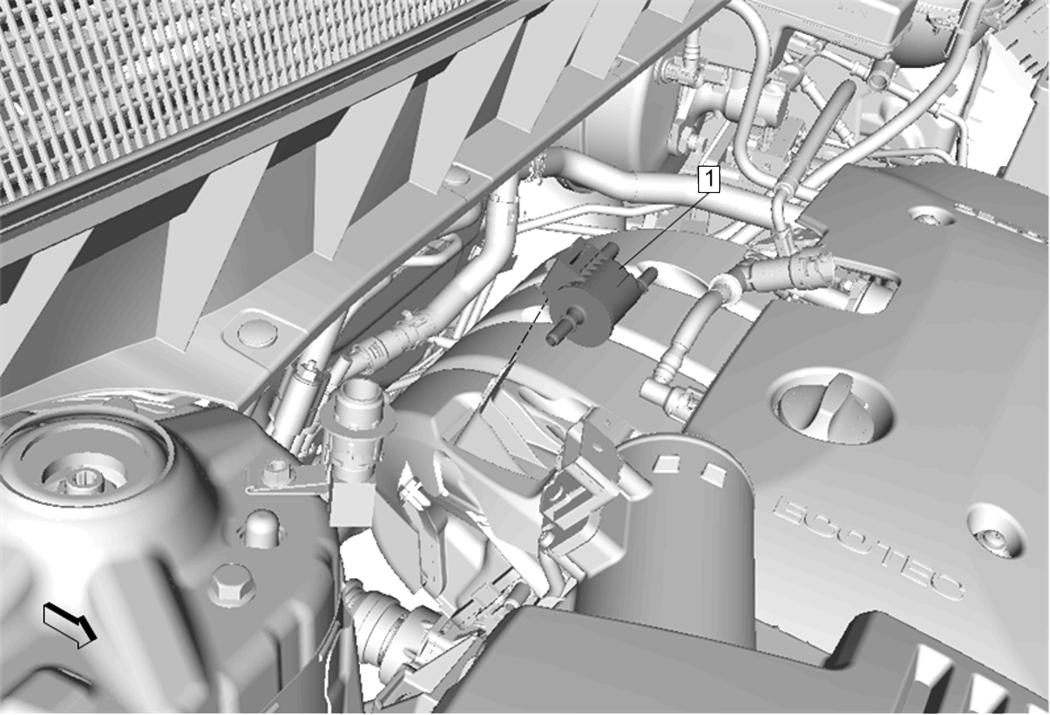

Evaporative Emission Canister Purge Solenoid Valve (1) - Install - Evaporative Emission Canister Purge Solenoid Valve Replacement
Courtesy of GENERAL MOTORS COMPANY

Positive Crankcase Ventilation Hose (1) Install - Positive Crankcase Ventilation Hose/Pipe/Tube Replacement
Courtesy of GENERAL MOTORS COMPANY

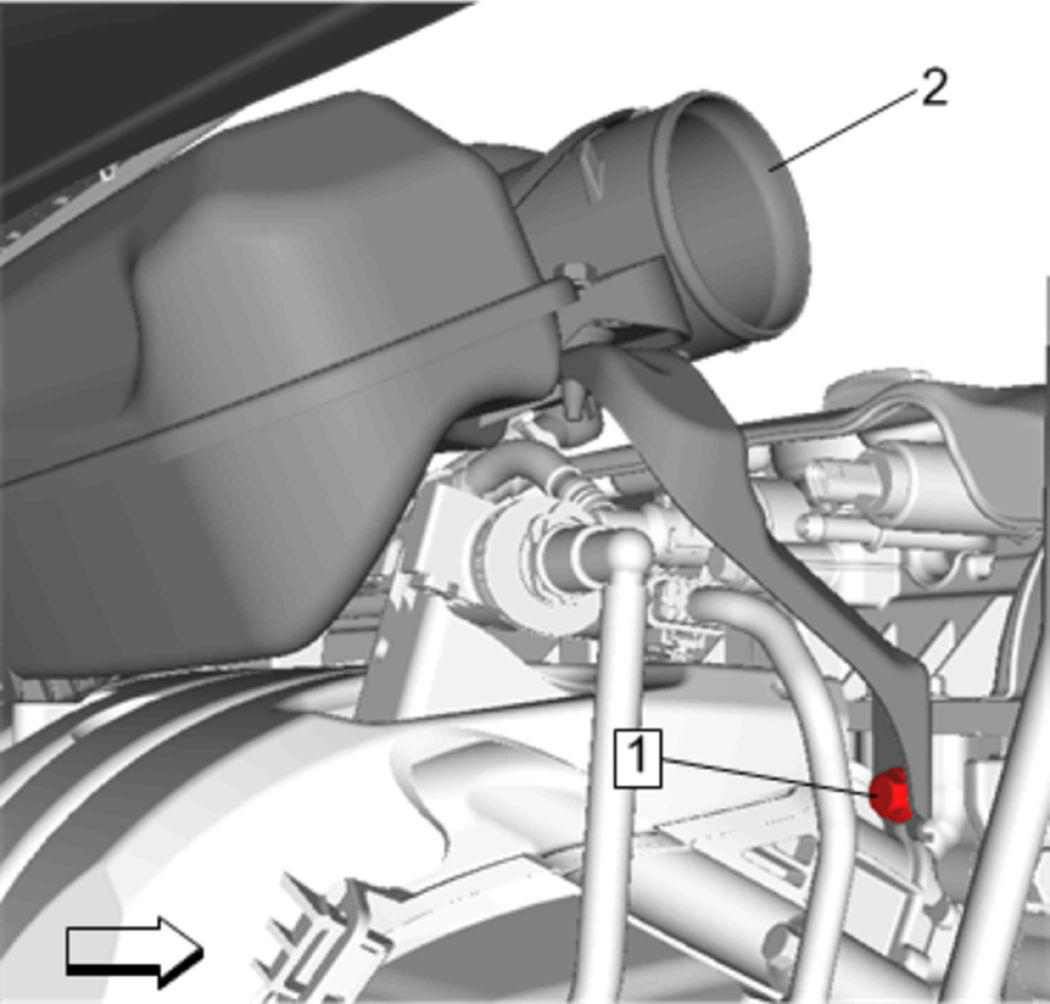

Air Cleaner Outlet Duct (2) - Install - Air Cleaner Outlet Duct Replacement
Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover (3) - Install - Intake Manifold Cover Replacement
