Intake Manifold Cover Replacement
WARNING: This page is about a different variant/trim than selected.

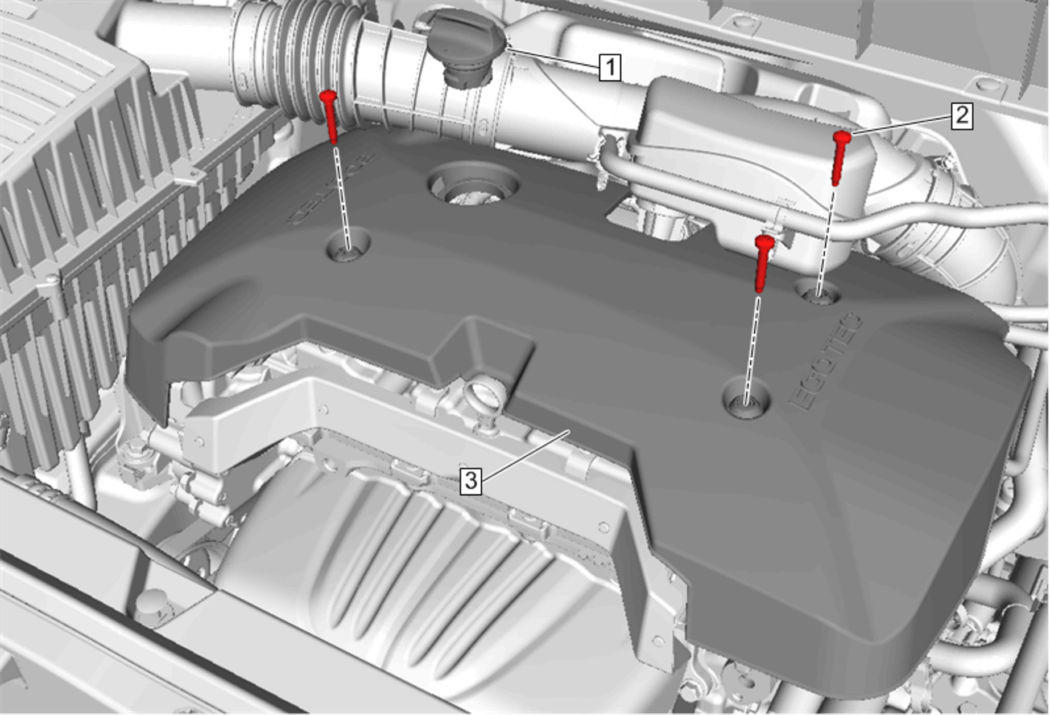

| Callout | Component Name |
|---|---|
| 1 | Engine Oil Filler Cap |
| 2 | Intake Manifold Cover Bolt [3x]
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 3 | Intake Manifold Cover |
