Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Intake Manifold Cover (3) - Remove - Intake Manifold Cover Replacement
Courtesy of GENERAL MOTORS COMPANY

Engine Mount Brace (2) - Remove - Engine Mount Brace Replacement

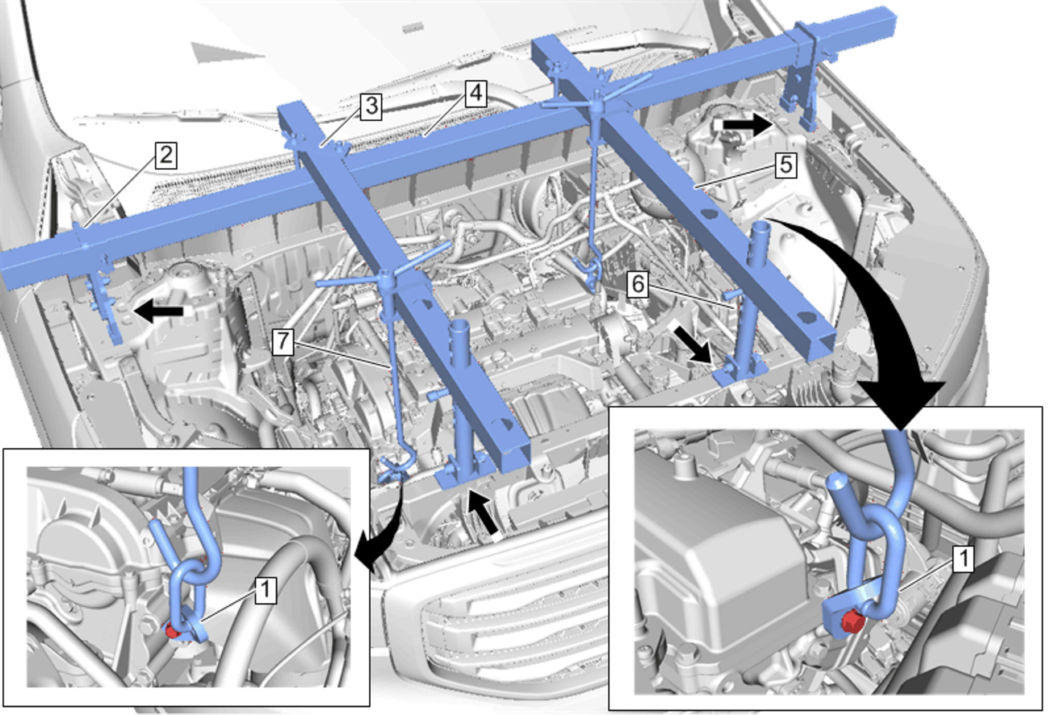

Fig 1: Identifying Engine Support Fixture Assembly Components
Courtesy of GENERAL MOTORS COMPANY

Engine Support Fixture (1-7) - Install - Engine Support Fixture
Courtesy of GENERAL MOTORS COMPANY

Engine Mount Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Engine Mount Engine Side Bolt (1) - Remove [2x]
Engine Mount (2) - Remove
