Installation Procedure
WARNING: This page is about a different variant/trim than selected.
NOTE:
For ease of installation, all engine mount bolts should be hand started prior to performing final tightening steps.

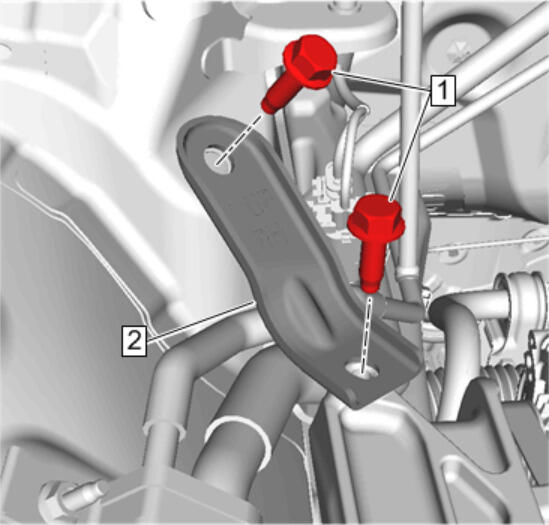

Engine Mount (2) - Install
- Engine Mount Engine Side Bolt (1) - Install and tighten [2x] 100 N.m (74 lb ft)

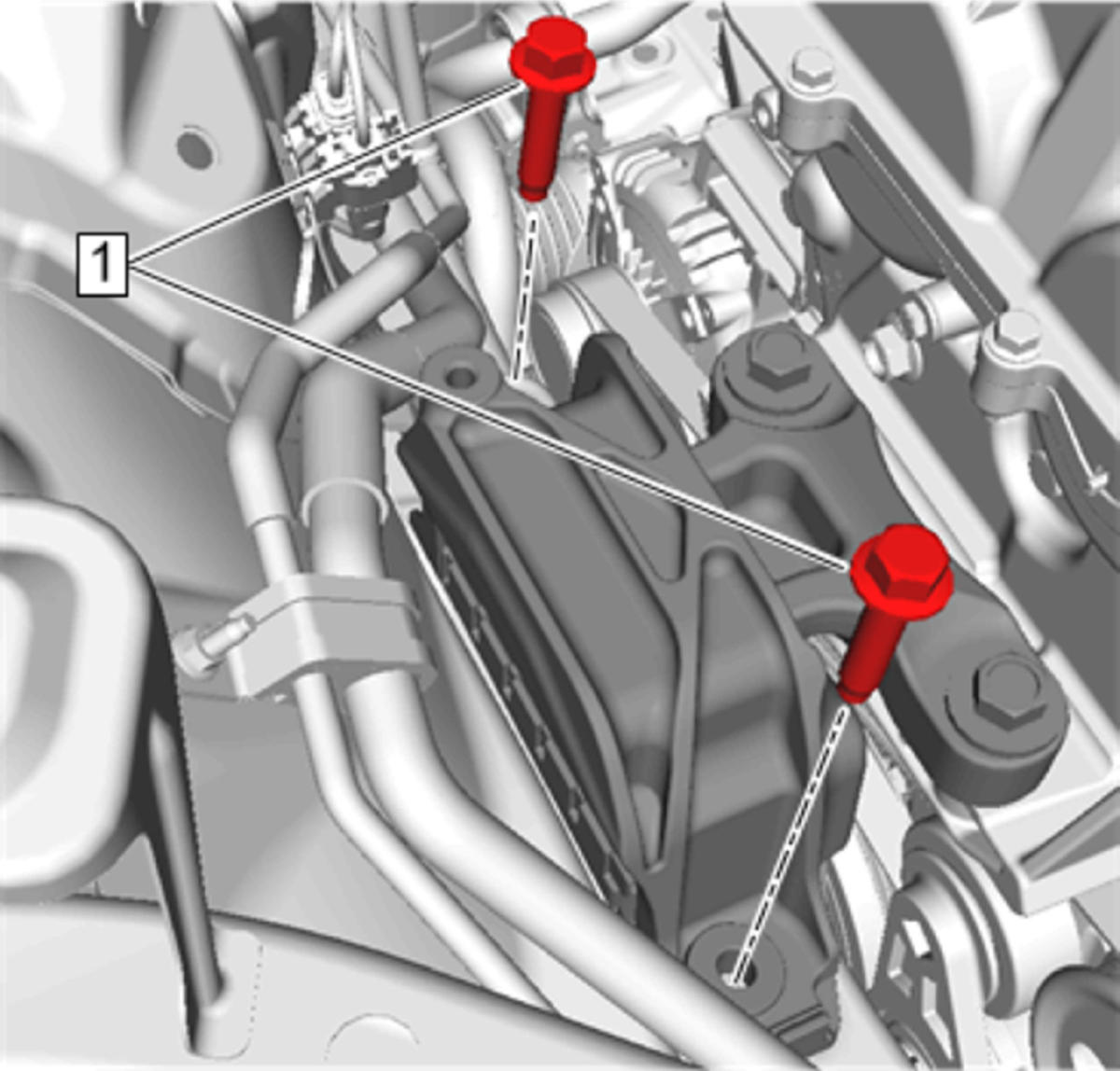

Hand start the 2 engine mount bolts (1).
- With the engine mount bolts hand tightened, release the tension from the engine support fixture.
- Shake the powertrain vigorously by hand to allow the powertrain to settle.
- Engine Mount Bolt (1) - Tighten 58 N.m (43 lb ft)
- Engine Support Fixture (1-7) - Remove - Engine Support Fixture
Engine Mount Brace (2) - Install - Engine Mount Brace Replacement
Intake Manifold Cover (3) - Install - Intake Manifold Cover Replacement
CAUTION:
Refer to Fastener Caution .
