Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. GM5144449Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Assembly (1) - Remove - Air Cleaner Assembly Replacement

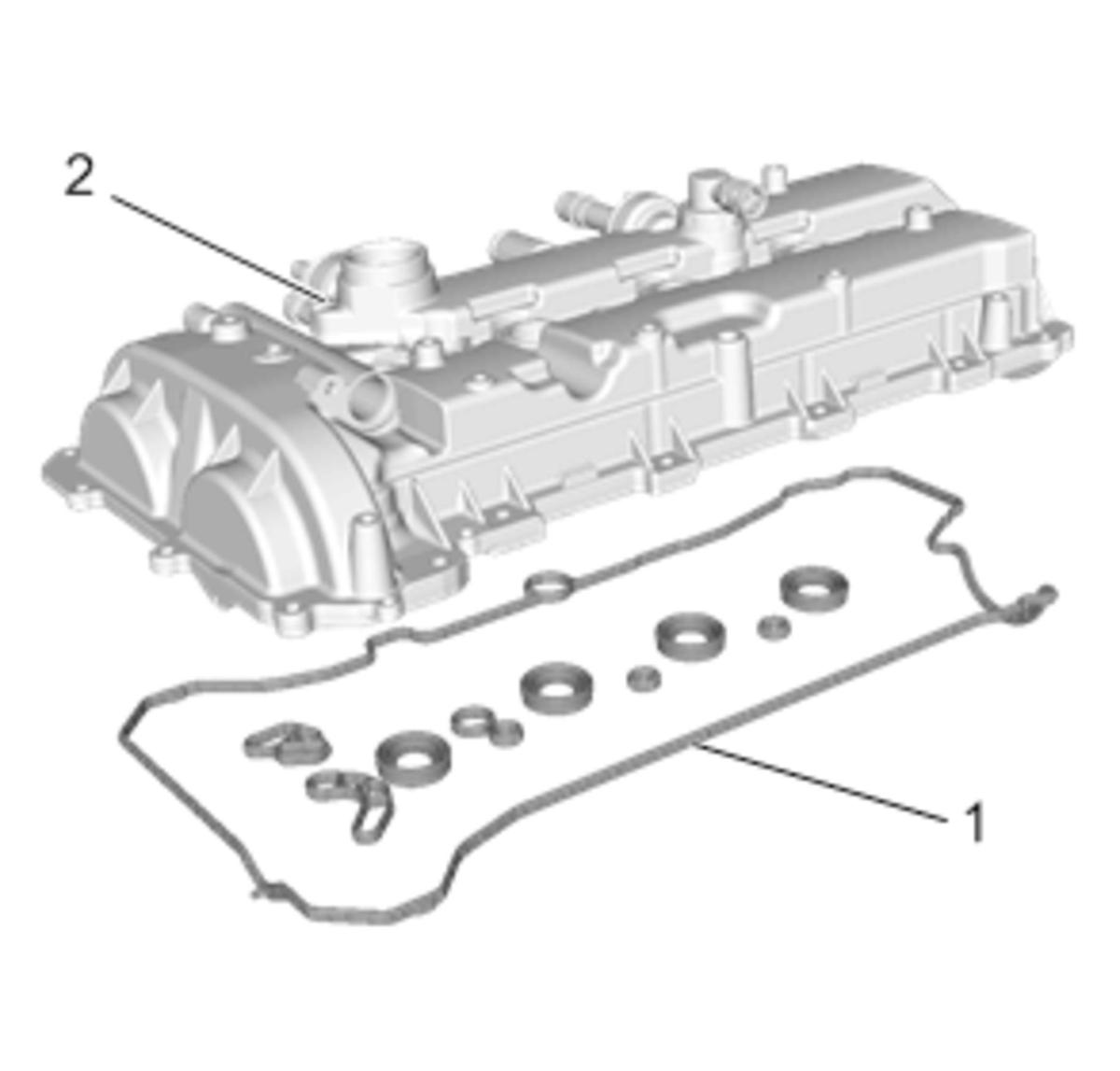

  2. GM4244908Courtesy of GENERAL MOTORS COMPANY

    Camshaft Cover (2) - Remove - Camshaft Cover Replacement

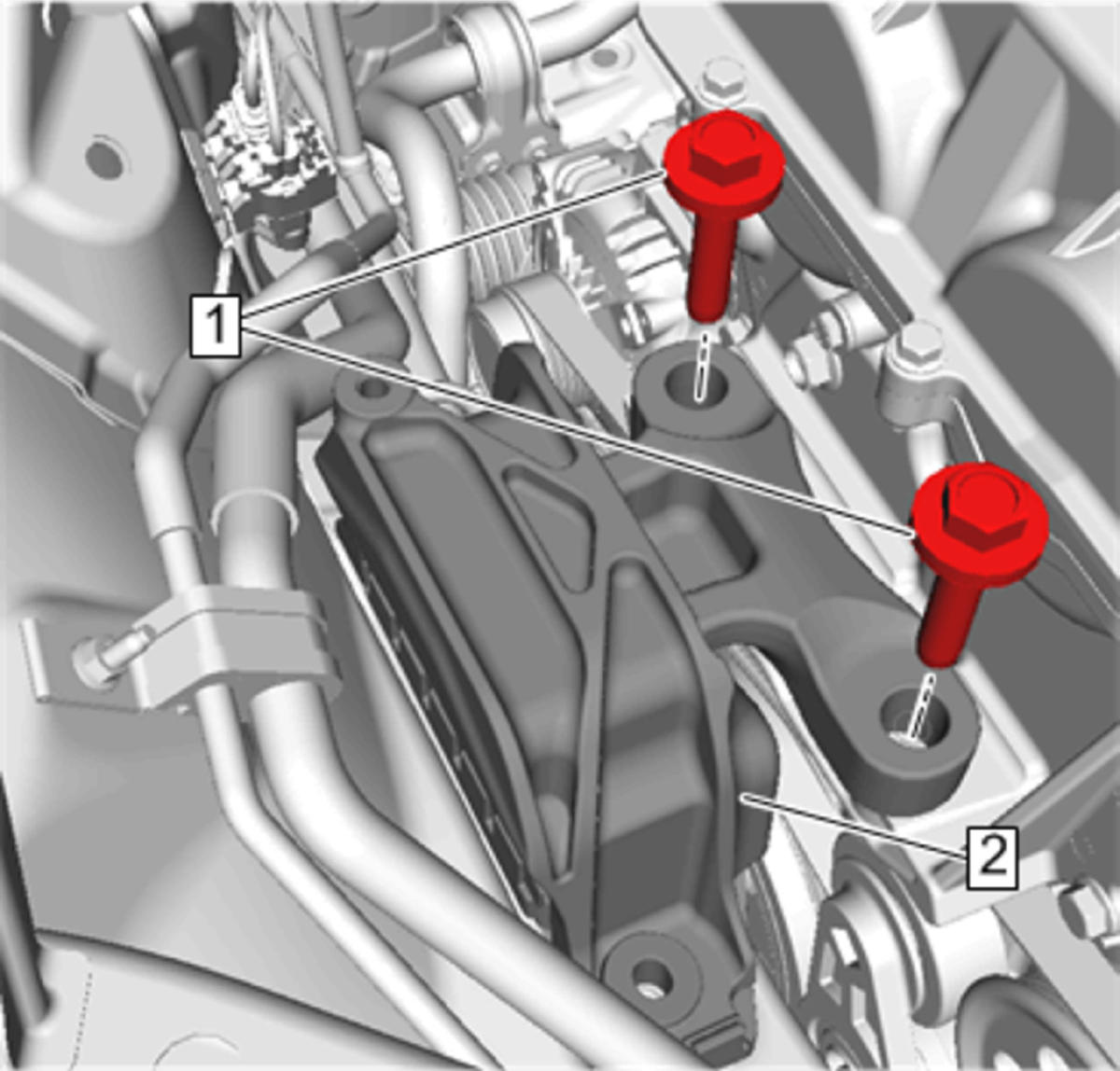

  3. GM4326249Courtesy of GENERAL MOTORS COMPANY

    Engine Mount (2) - Remove - Engine Mount Replacement

  4. GM5156438Courtesy of GENERAL MOTORS COMPANY

    Drive Belt Tensioner (2) - Remove - Drive Belt Tensioner Replacement

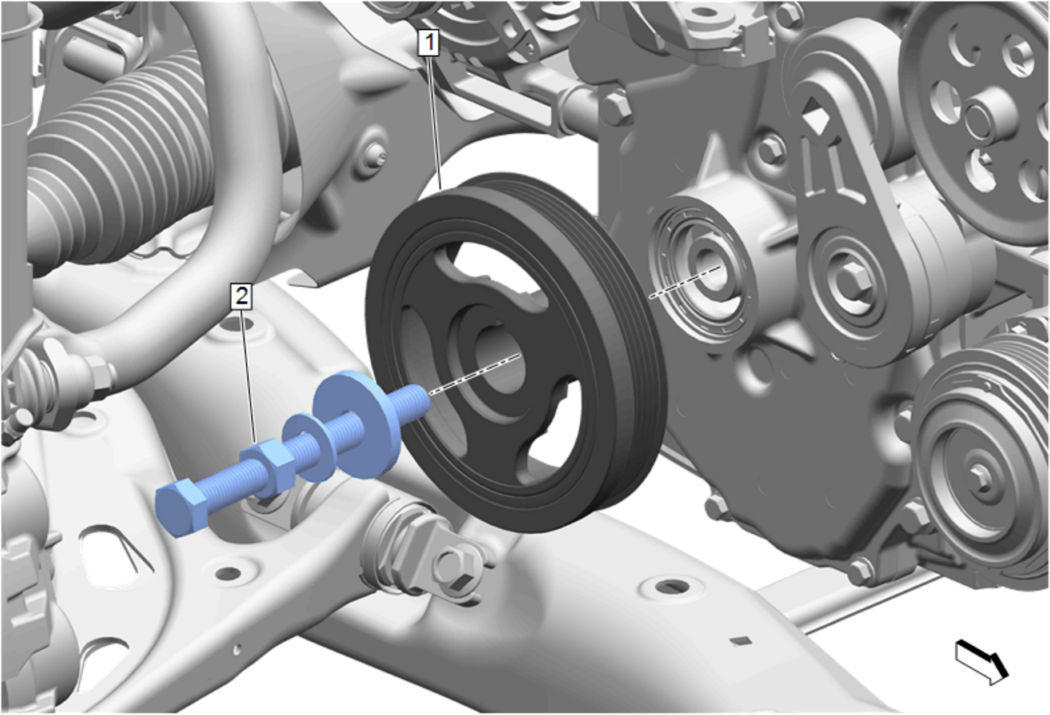

  5. GM5157558Courtesy of GENERAL MOTORS COMPANY

    Crankshaft Balancer (1) - Remove - Crankshaft Balancer Replacement

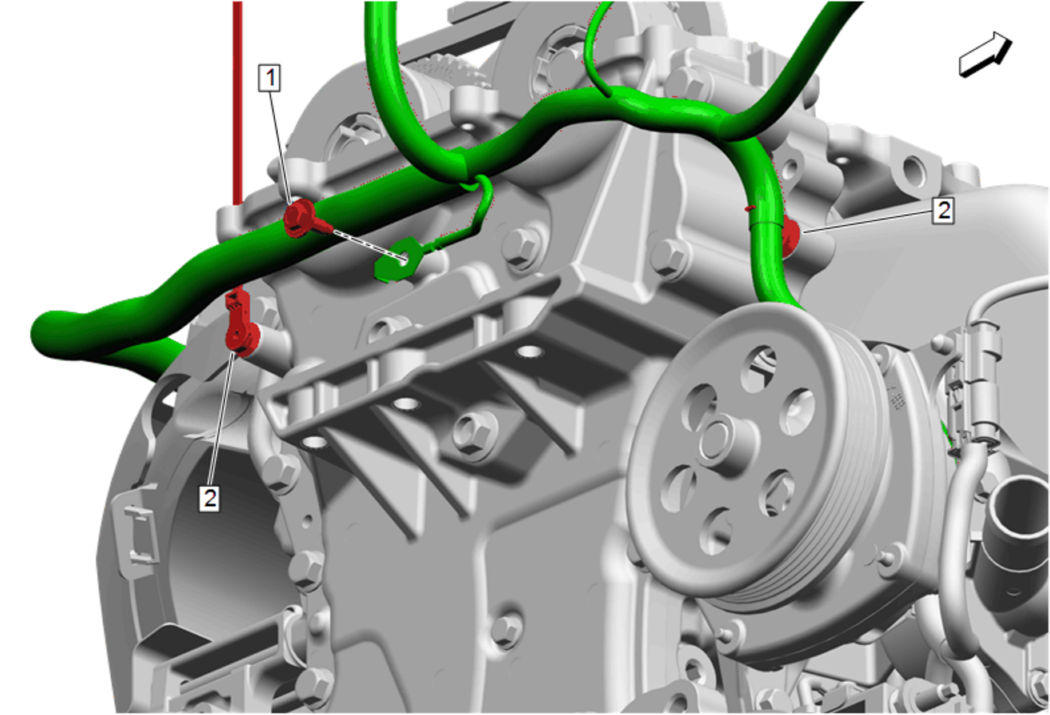

  6. GM5158469Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Ground Bolt (1) - Remove

  7. Engine Wiring Harness Retainer (2) - Remove [2x]

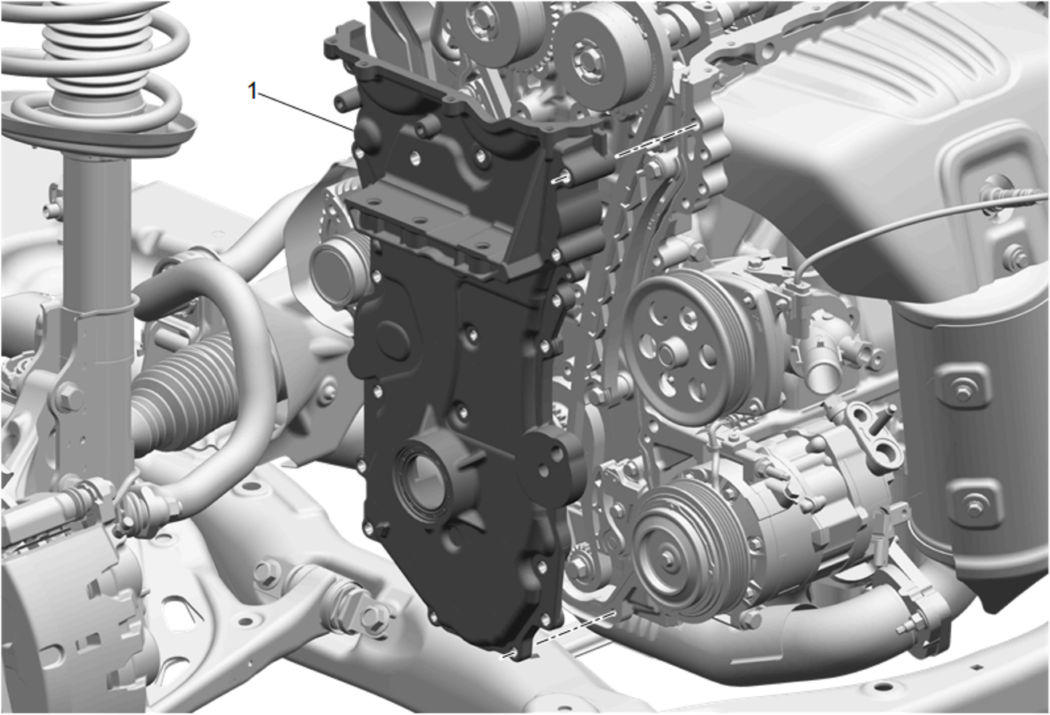

  8. GM5158485Courtesy of GENERAL MOTORS COMPANY

    Engine Front Cover (1) - Remove - Engine Front Cover Removal
