Air Cleaner Assembly Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Air Cleaner Outlet Front Duct Replacement Disconnect the electrical connector and remove wiring harness retainer from air cleaner assembly.

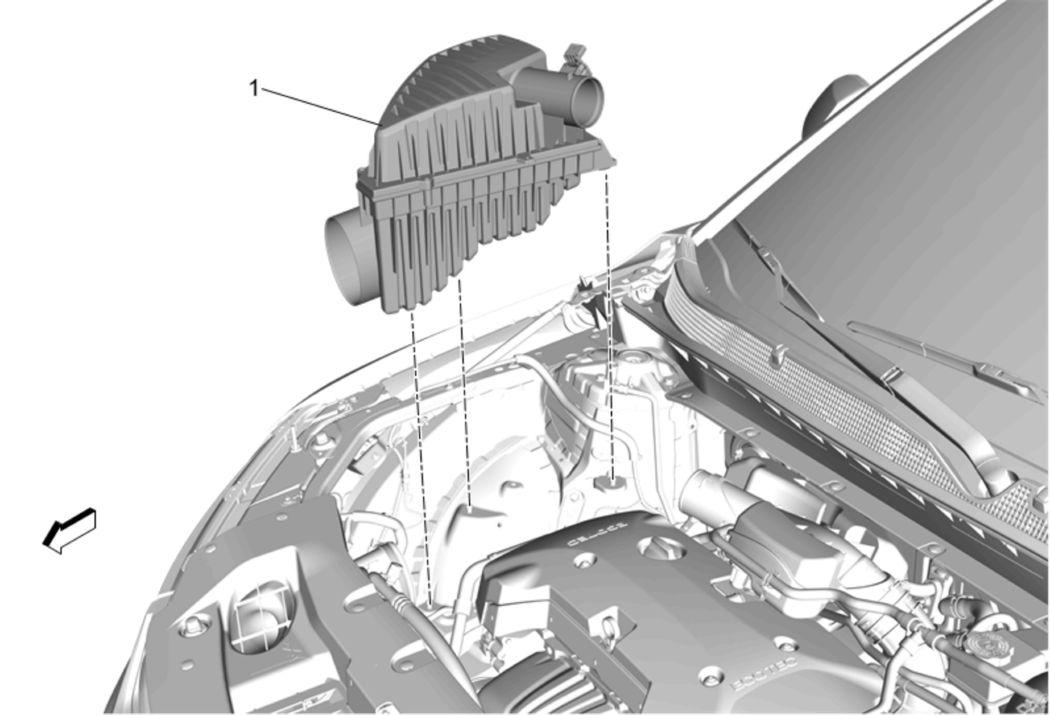

1	Air Cleaner Assembly Procedure Remove the air cleaner housing from the retainers. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedure

Air Cleaner Outlet Front Duct Replacement
Disconnect the electrical connector and remove wiring harness retainer from air cleaner assembly.

Air Cleaner Assembly

Procedure
