Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Air Cleaner Outlet Intermediate Duct - Remove - Air Cleaner Outlet Intermediate Duct Replacement
  2. Air Cleaner Outlet Duct - Remove - Air Cleaner Outlet Duct Replacement
  3. Throttle Body Assembly - Remove - Throttle Body Assembly Replacement
  4. Oil Level Indicator Tube - Remove - Oil Level Indicator Tube Replacement

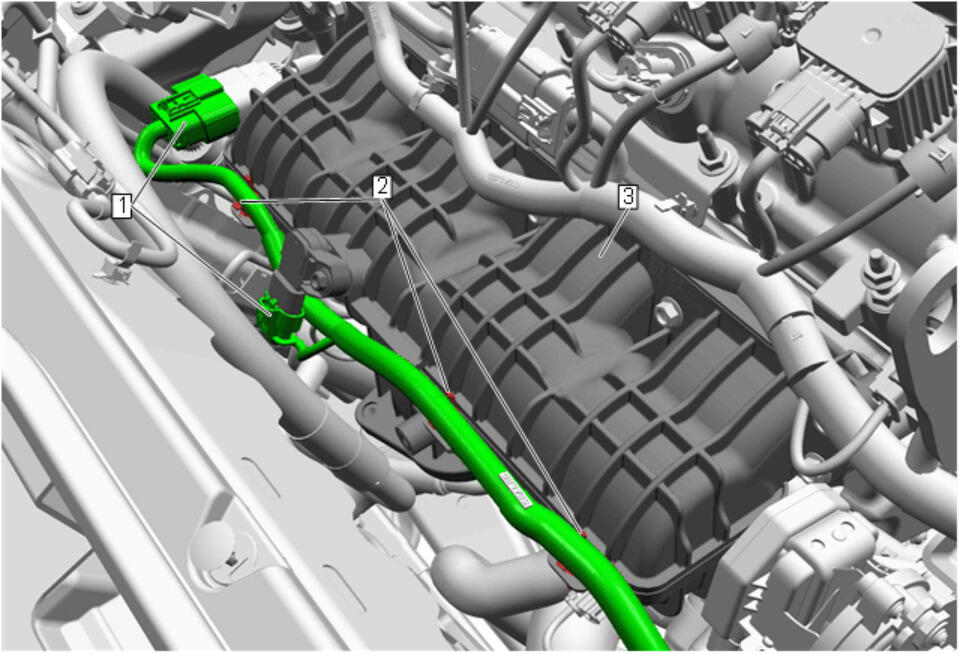

  5. GM5086040Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Disconnect [2x]

  6. Retainer (2) @ Intake Manifold (3) - Remove [3x]
  7. Intake Air Pressure and Temperature Sensor - Remove - Intake Air Pressure and Temperature Sensor Replacement

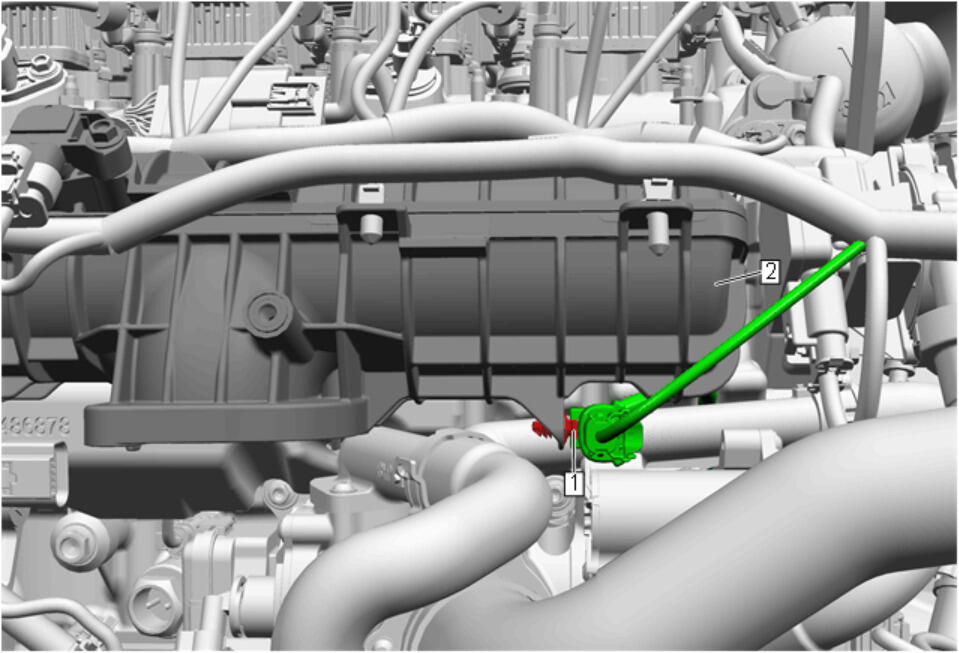

  8. GM5086044Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) @ Intake Manifold (2) - Remove

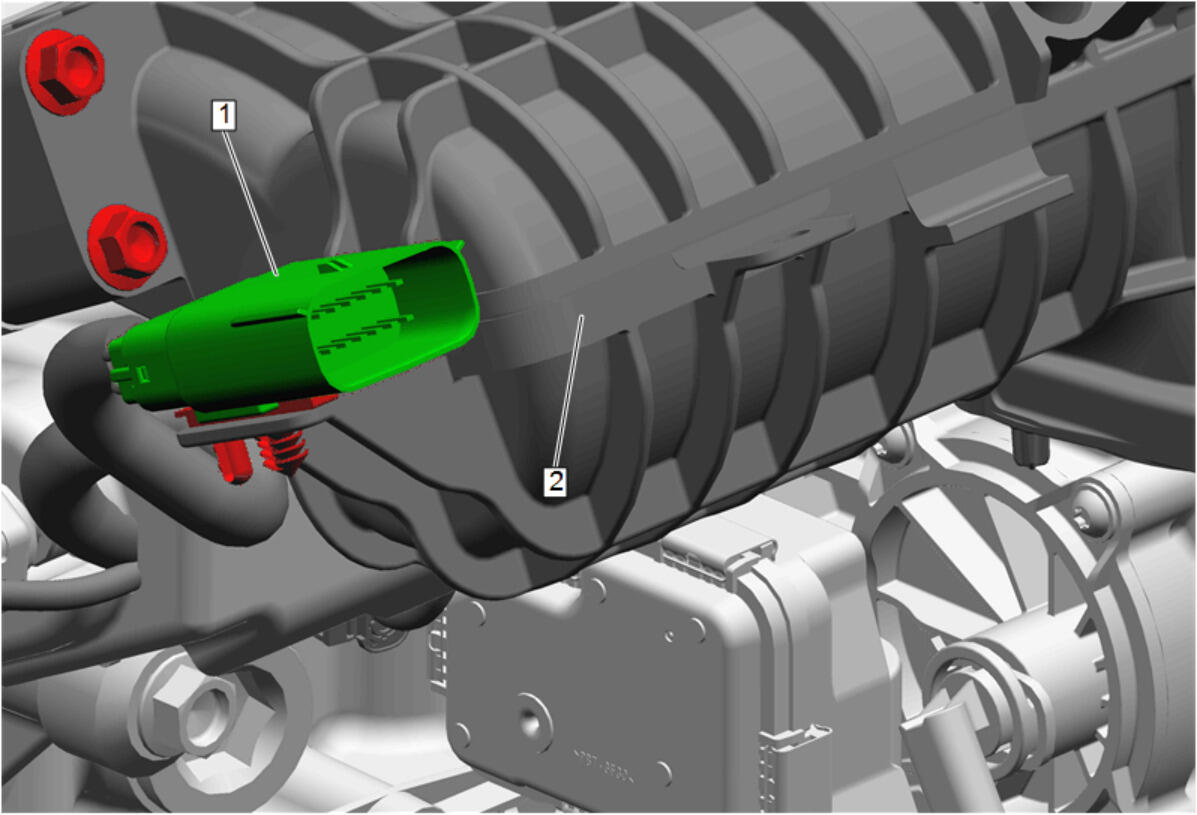

  9. GM4963035Courtesy of GENERAL MOTORS COMPANY

    Fuel Injection Fuel Rail Wiring Harness (1) @ Intake Manifold (2) - Disconnect

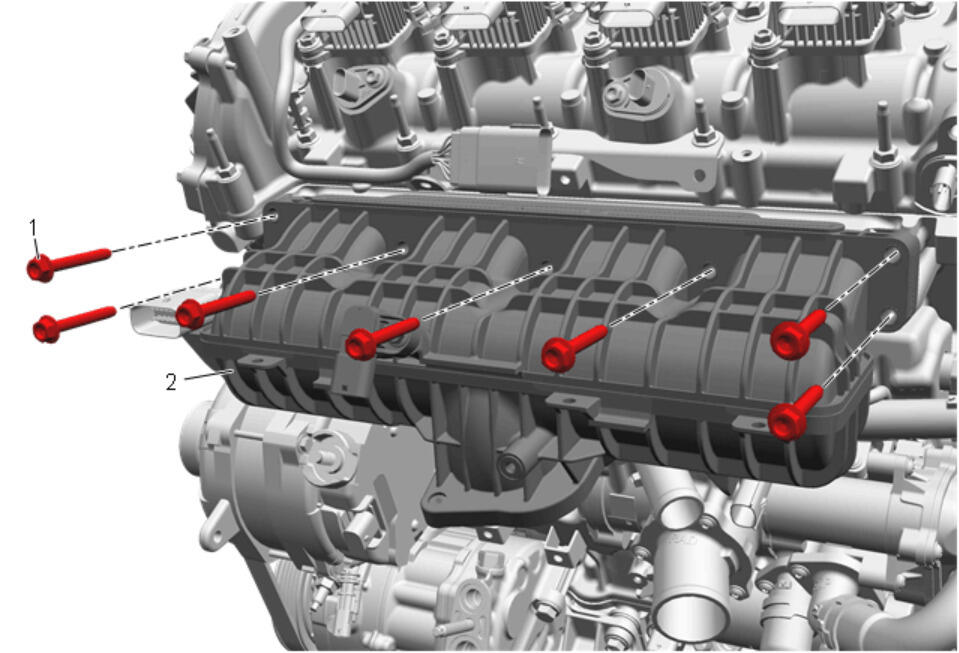

  10. GM5090416Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Bolt (1) @ Intake Manifold (2) - Remove [7x]

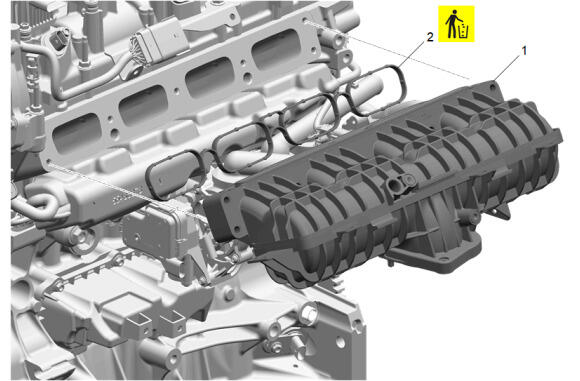

  11. GM4963048Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold (1) - Remove

  12. Intake Manifold Gasket (2) - Remove and DISCARD
