Intake Air Pressure and Temperature Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

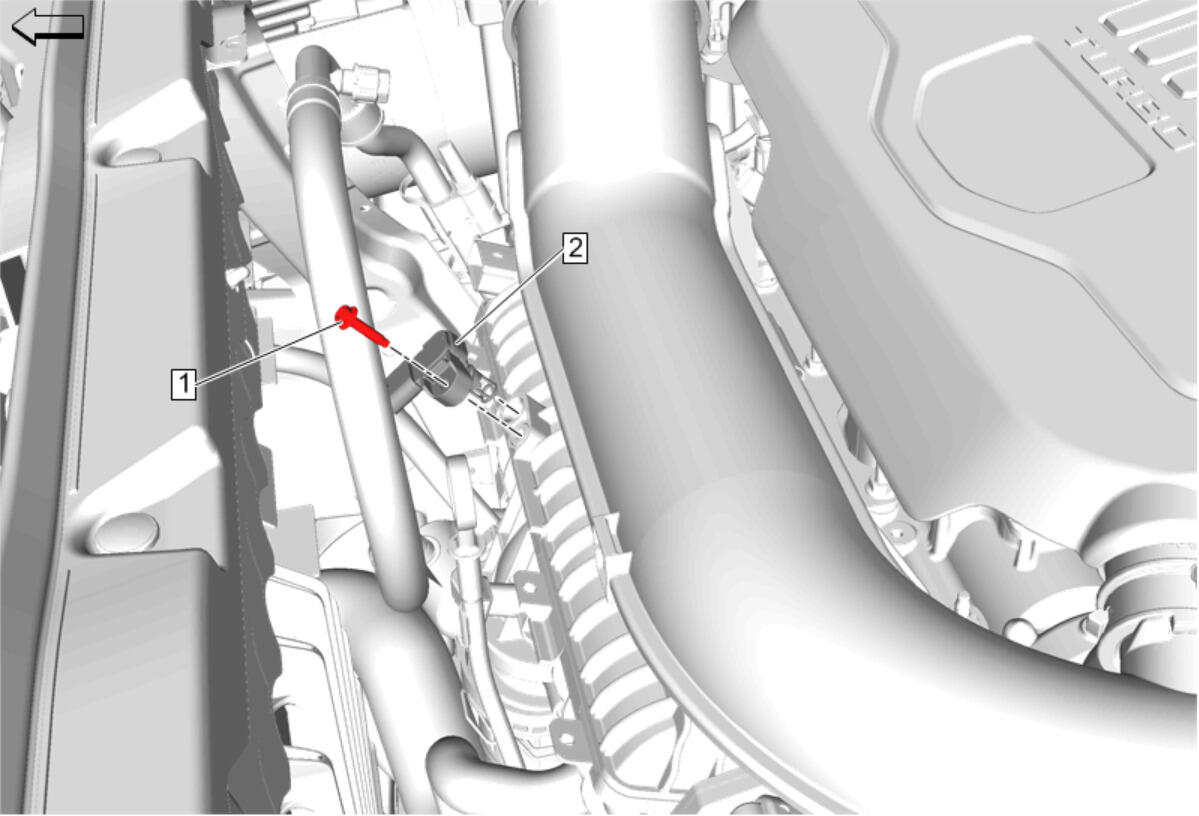

Callout	Component Name
1	Intake Air Pressure and Temperature Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Intake Air Pressure and Temperature Sensor Procedure Disconnect the electrical connector. Perform the intake system learned values reset. Intake System Learned Values Reset

Callout

Component Name

Intake Air Pressure and Temperature Sensor Bolt

CAUTION:

Tighten
8.5 N.m (75 lb in)

Intake Air Pressure and Temperature Sensor

Procedure

Disconnect the electrical connector.
Perform the intake system learned values reset. Intake System Learned Values Reset
