Air Cleaner Outlet Duct Replacement
WARNING: This page is about a different variant/trim than selected.

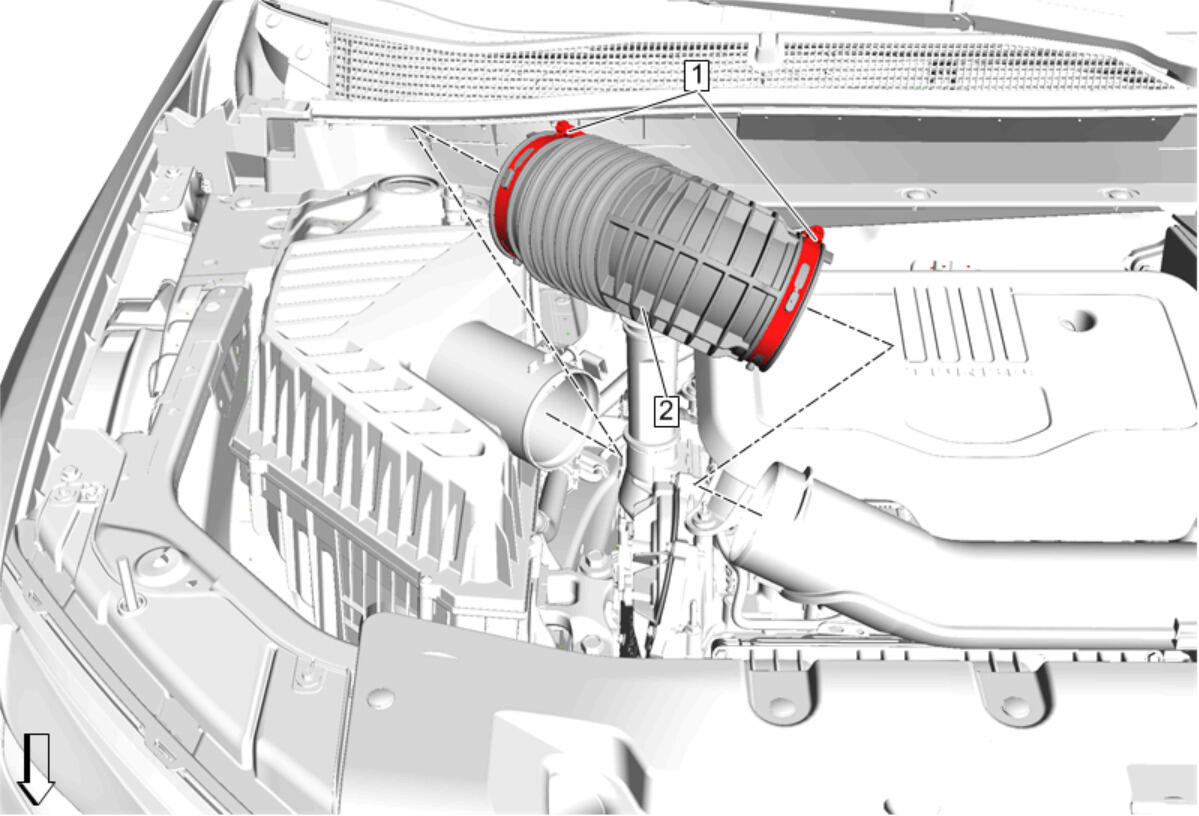

| Callout | Component Name |
|---|---|
| 1 | Air Cleaner Outlet Duct Clamp [2x]
CAUTION:
Refer to Fastener Caution . Tighten 4 N.m (35 lb in) |
| 2 | Air Cleaner Outlet Duct |
