Removal Procedure

Remove the appropriate front wheel opening molding. Front Wheel Opening Molding Replacement
Remove the appropriate front wheelhouse liner. Front Wheelhouse Liner Replacement
Courtesy of GENERAL MOTORS COMPANY

Using the appropriate tool, release the foam insulation on the front compartment side rail baffle (1) from the fender.
Courtesy of GENERAL MOTORS COMPANY

Hood Rear Outer Air Inlet Seal (2) - Remove - Hood Rear Outer Air Inlet Seal Replacement
Courtesy of GENERAL MOTORS COMPANY

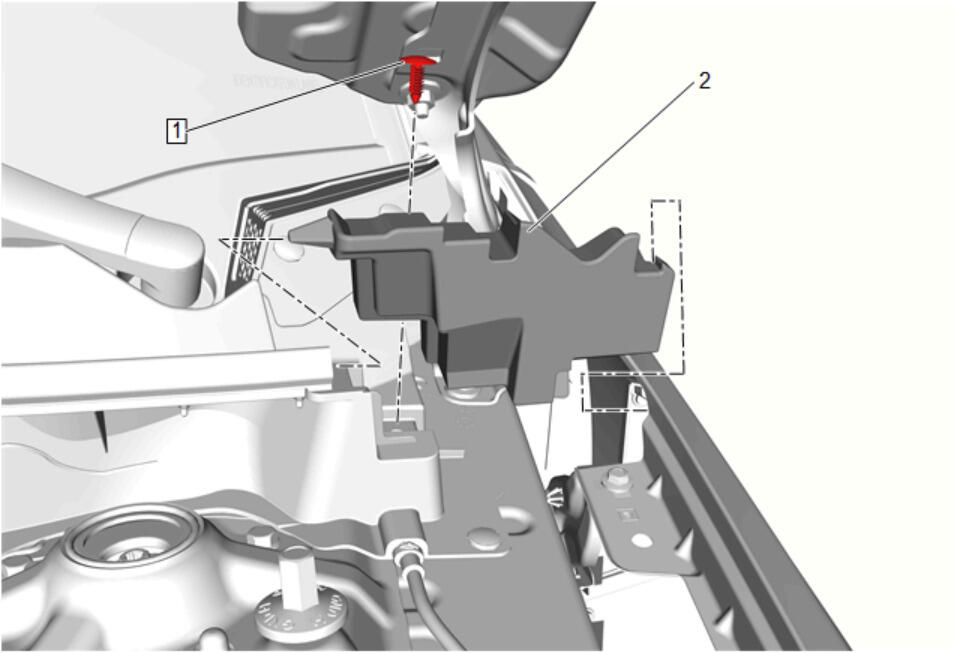

Front Fender Insulator (2) - Remove - Front Fender Insulator Replacement
Courtesy of GENERAL MOTORS COMPANY

Body Side Upper Front Applique (2) - Remove - Body Side Upper Front Applique Replacement
Front Bumper Fascia - Remove - Front Bumper Fascia Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Daytime Running Lamp Bolt (1) - Remove [2x] - Daytime Running Lamp Replacement
Front Bumper Fascia Guide - Remove - Front Bumper Fascia Guide Replacement
Courtesy of GENERAL MOTORS COMPANY

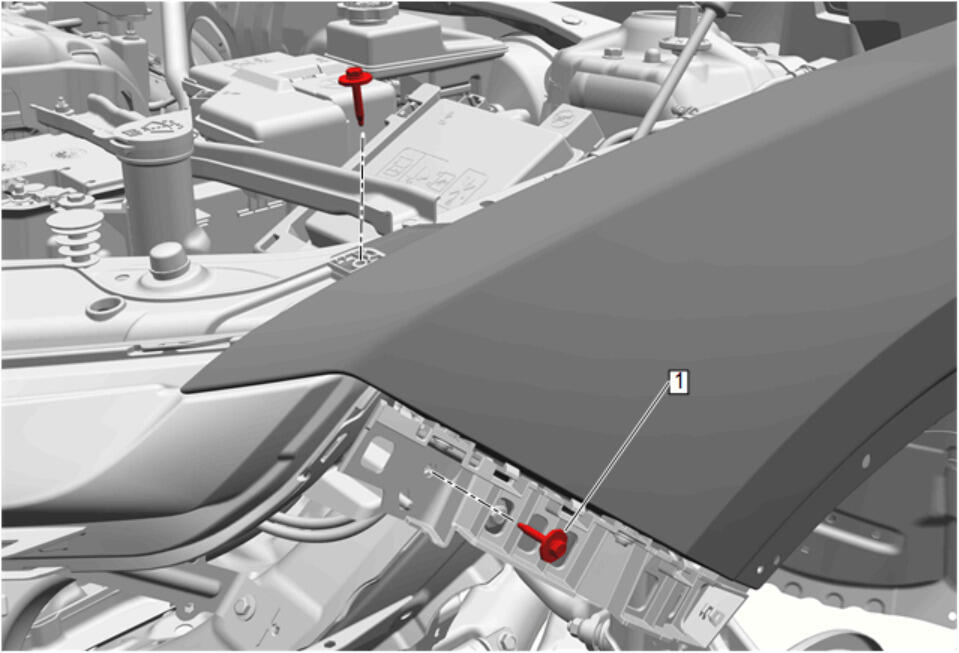

Front Fender Bolt (1) - Remove [4x]
Front Fender Nut (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Place protective covering over windshield at top rear bolt to prevent windshield breakage.

Front Fender Bolt (1) - Remove
Front Fender Bolt (2) - Loosen
Courtesy of GENERAL MOTORS COMPANY

Front Fender Bolt (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

Front Fender (1) - Remove
Transfer components as necessary.
