Daytime Running Lamp Replacement

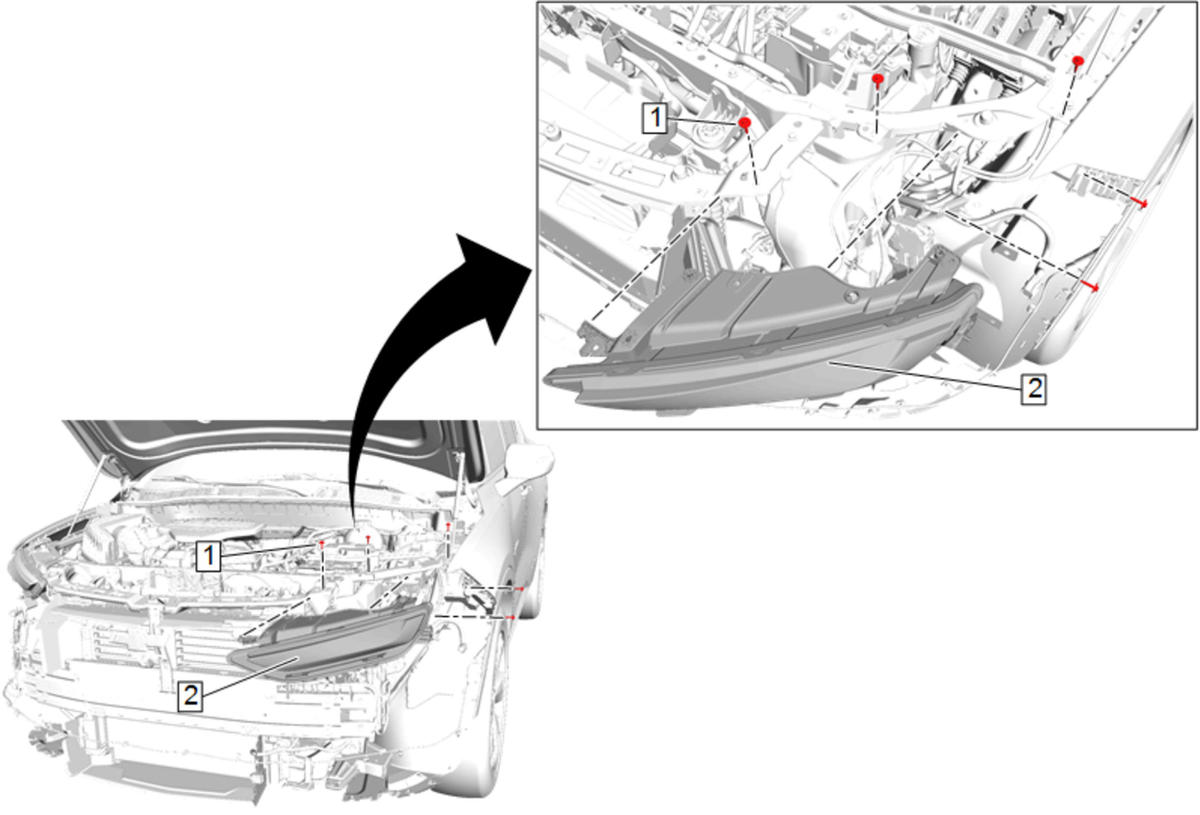

GM5129676Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Removal and Installation
1 Daytime Running Lamp Bolt [5x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Daytime Running Lamp

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
