Front Wheelhouse Liner Replacement

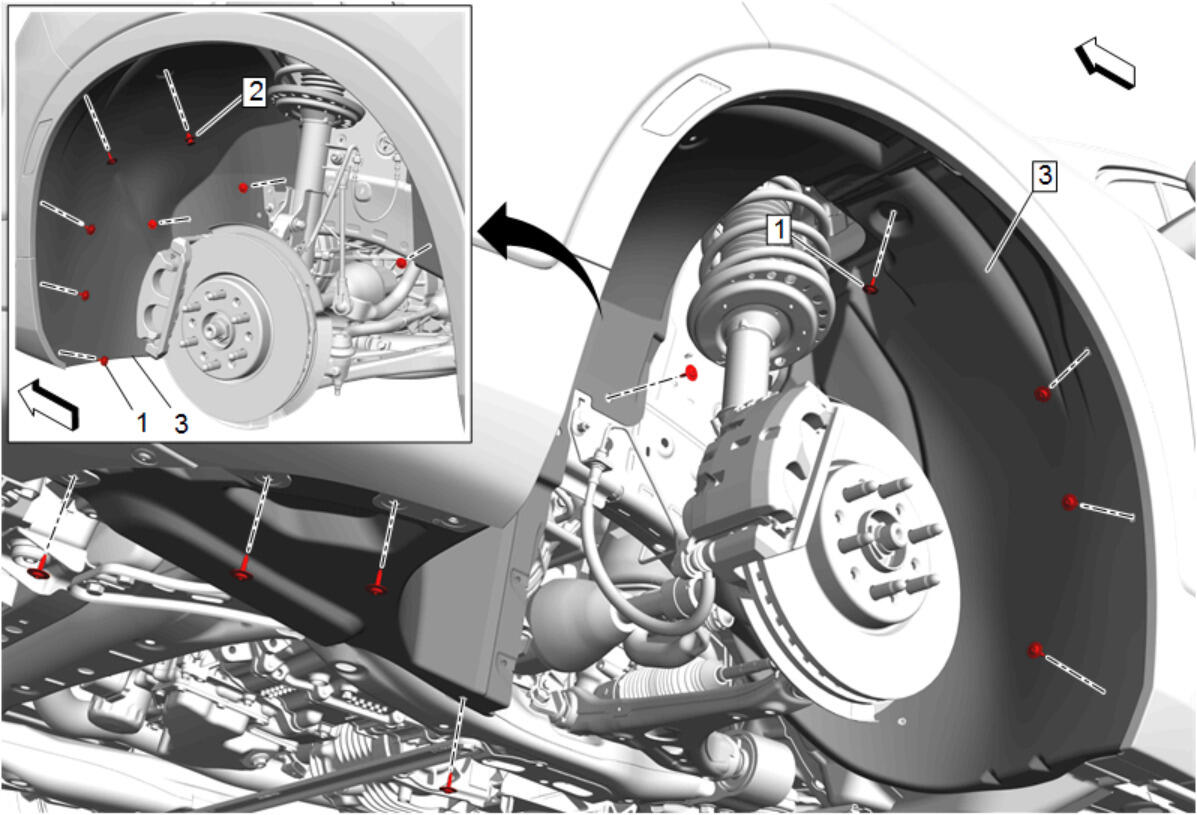

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Compartment Splash Shield Replacement |
|
| 1 | Front Wheelhouse Liner Bolt [16x]
CAUTION:
Refer to Fastener Caution Tighten 2.5 N.m (22 lb in) |
| 2 | Front Wheelhouse Liner Retainer |
| 3 | Front Wheelhouse Liner |
