Driver or Passenger Seat Removal - With No Fore/Aft Movement

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Refer to SIR Warning .

Disable the SIR system. SIR Disabling and Enabling
Courtesy of GENERAL MOTORS COMPANY

Driver or Passenger Seat Head Restraint(3) - Remove - Front Seat Head Restraint Replacement
Adjust the seat to gain access to the bolts.
Courtesy of GENERAL MOTORS COMPANY

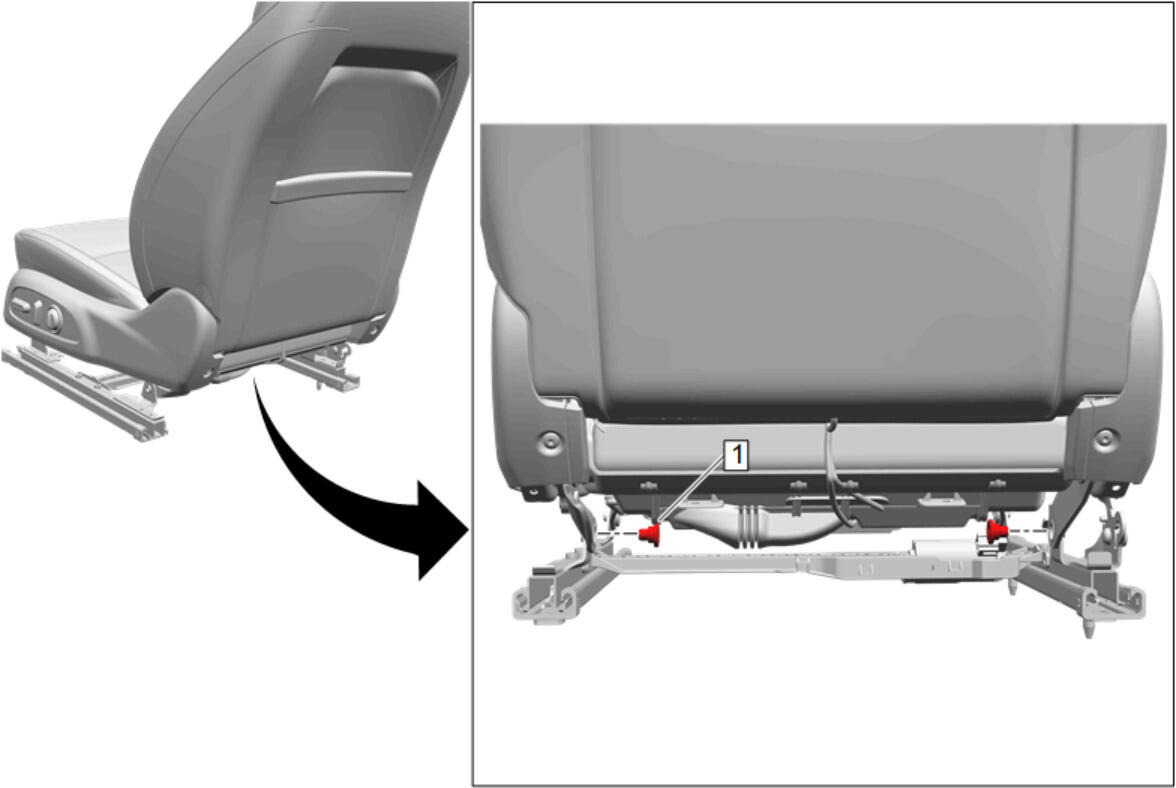

Front Seat Vertical Adjuster Bracket Bolt - Rear (1) - Remove[2x]
Courtesy of GENERAL MOTORS COMPANY

Tilt the seat forward and support it.

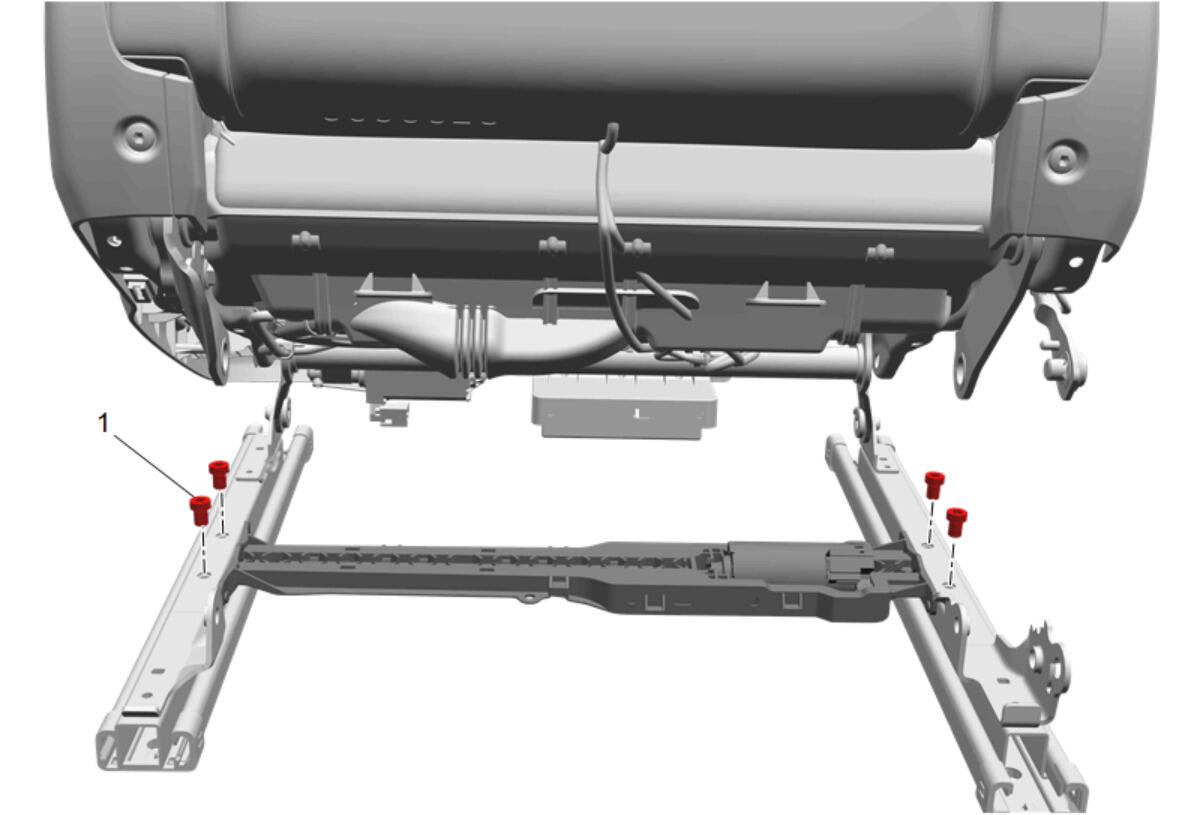

Cross Brace Bolt (1) - Remove[4x]

NOTE:

The seat can now be moved fore/aft to access the seat bolts.

Driver or Passenger Seat Bolt - Remove - Front Seat Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

NOTE:
If sending the frame back for warranty return, reinstall the front seat vertical adjuster bracket bolts and the cross brace bolts.

Replace with NEW seat cushion frame.(2) - Remove - Front Seat Cushion Frame Replacement (Except Passenger with 6-way Power) Front Seat Cushion Frame Replacement (Passenger with 6-way Power)
