Front Seat Cushion Frame Replacement (Passenger with 6-way Power)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

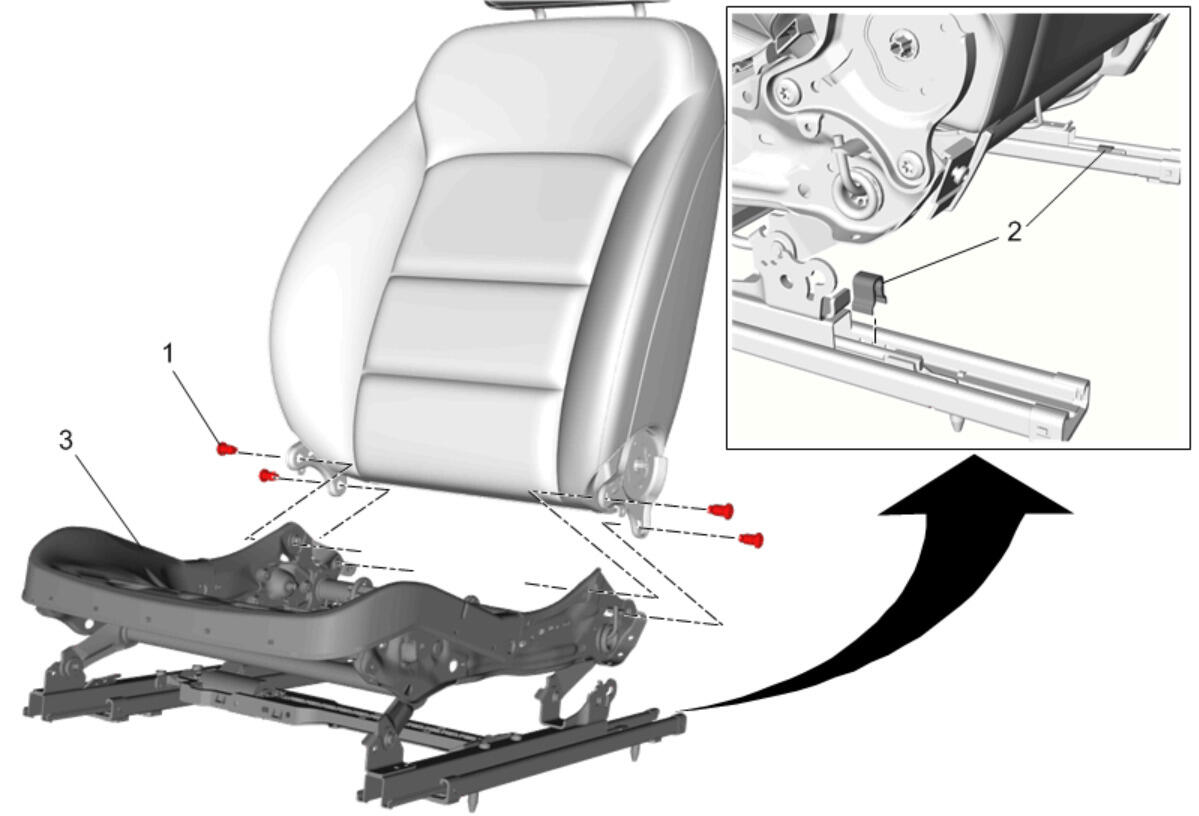

GM4546195Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

Preliminary Procedure Front Seat Cushion Cover and Pad Replacement
1 Driver or Passenger Seat Back Frame Fastener[4x]
CAUTION:

Refer to Fastener Caution .


Tighten
35 N.m (26 lb ft)
2 Front Seat Adjuster Stop [2x]
NOTE:

When replacing the seat cushion frame, ensure the front seat adjuster stops are installed. The frame may need to be adjusted to access the stops.
3 Driver or Passenger Seat Cushion Frame

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
