Front Seat Cushion Frame Replacement (Except Passenger with 6-way Power)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

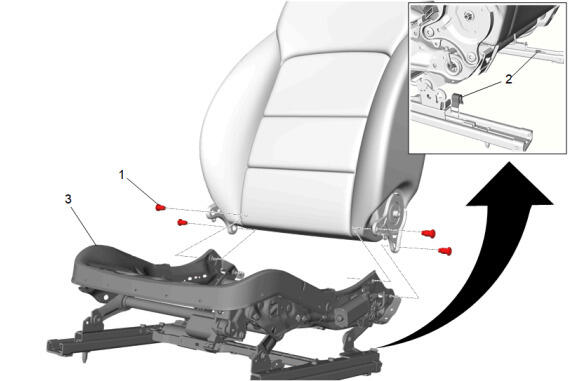

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Front Seat Cushion Cover and Pad Replacement
1	Driver or Passenger Seat Back Frame Fastener[4x] CAUTION: Refer to Fastener Caution . Tighten 35 N.m (26 lb ft)
2	Driver or Passenger Seat Cushion Frame Procedure Disconnect the electrical connector. Transfer components as necessary.

Callout

Component Name

WARNING:

Refer to SIR Warning .

Preliminary Procedure Front Seat Cushion Cover and Pad Replacement

Driver or Passenger Seat Back Frame Fastener[4x]

CAUTION:

Refer to Fastener Caution .

Tighten
35 N.m (26 lb ft)

Driver or Passenger Seat Cushion Frame

Procedure

Disconnect the electrical connector.
Transfer components as necessary.
