Fuel Heater Inlet Hose Replacement (LKN)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

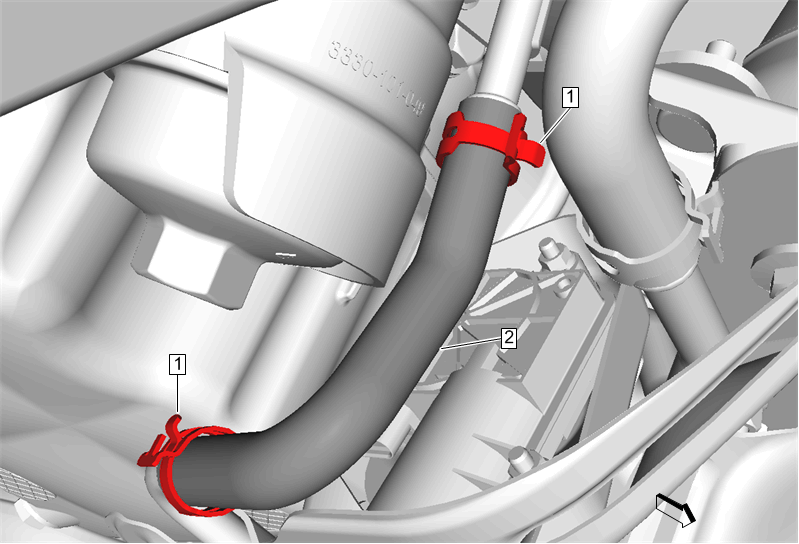

Callout	Component Name
Preliminary Procedures Drain the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static) Exhaust Heat Shield - Remove - Exhaust Heat Shield Replacement (LKN)
1	Fuel Heater Inlet Hose Clamp [2x] Procedure Hose Clamp Replacement Guidelines - Spring Type
2	Fuel Heater Inlet Hose Procedure Fill the cooling system to the proper level. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static) Start the engine and check for coolant leaks.

Callout

Component Name

Preliminary Procedures

Drain the cooling system. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
Exhaust Heat Shield - Remove - Exhaust Heat Shield Replacement (LKN)

Fuel Heater Inlet Hose Clamp [2x]
Procedure
Hose Clamp Replacement Guidelines - Spring Type

Fuel Heater Inlet Hose

Procedure

Fill the cooling system to the proper level. Cooling System Draining and Filling (GE-47716) , or Cooling System Draining and Filling (Static)
Start the engine and check for coolant leaks.
