Exhaust Heat Shield Replacement (LKN)
WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

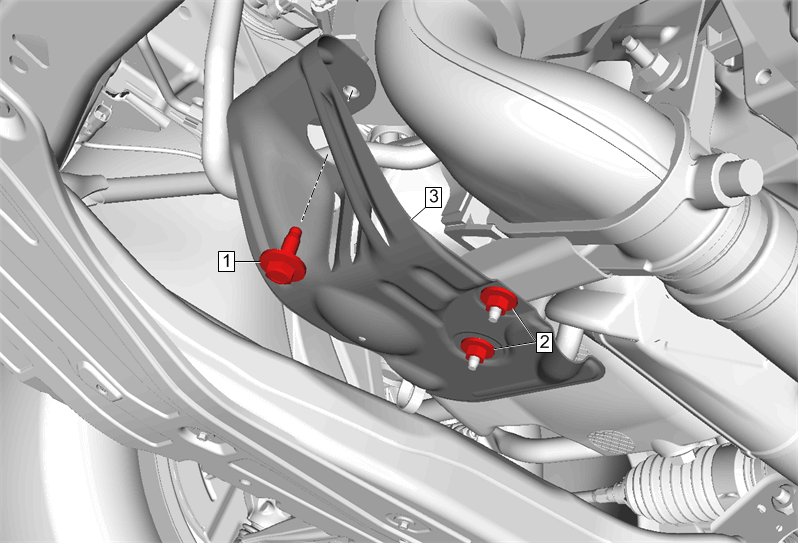

| Callout | Component Name |
|---|---|
|
WARNING:
In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool.
WARNING:
Preliminary Procedure Lifting and Jacking the VehicleAvoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. |
|
| 1 | Exhaust Heat Shield Bolt
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Exhaust Heat Shield Nut [2x] Tighten 9 N.m (80 lb in) |
| 3 | Exhaust Heat Shield |
