Removal Procedure

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Front Floor Console Replacement - Remove
  2. GM4213513Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Trim Panel (1) - Remove - Front Floor Console Rear Trim Panel Replacement

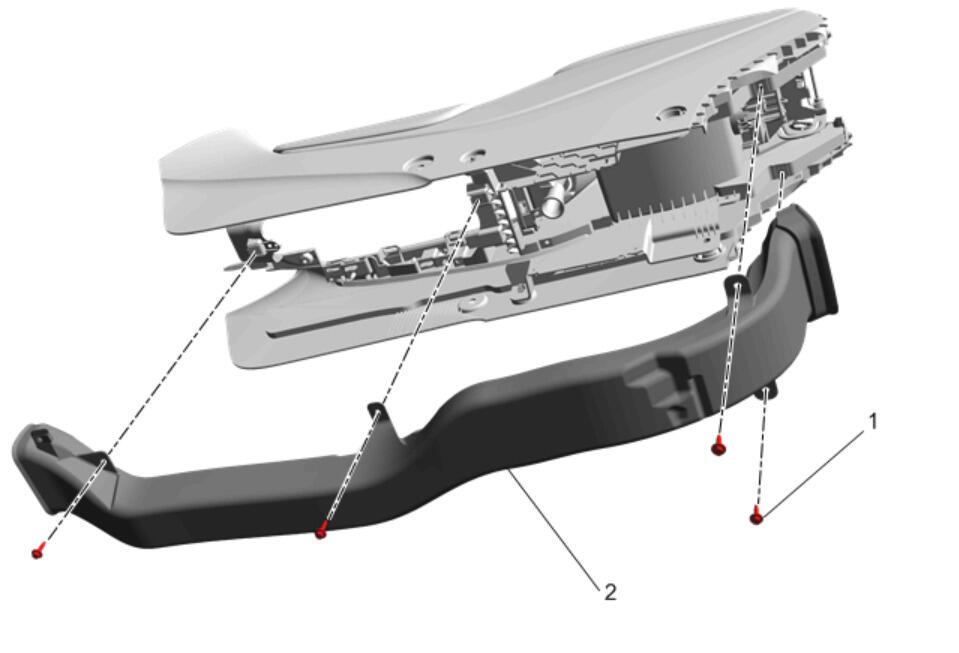

  3. GM4217588Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Rear Air Duct Bolt (1) [4x] - Remove

  4. Front Floor Console Rear Air Duct (2) - Remove
