Compressor Clutch Plate and Hub Assembly Removal (LFV)

WARNING: This page is about a different car, the 2019 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

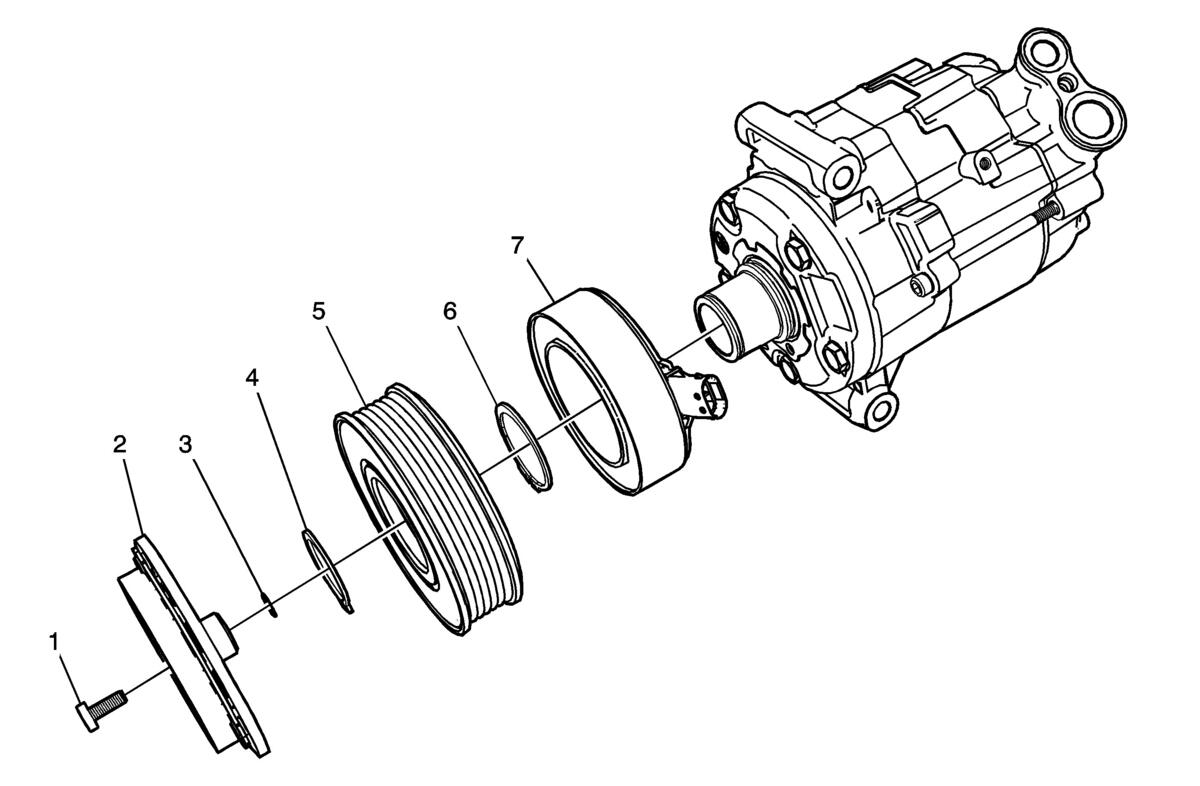

Callout	Component Name
Preliminary Procedures Drive Belt Replacement . Remove the air conditioning compressor if necessary. Air Conditioning Compressor Replacement (LFV) , or Air Conditioning Compressor Replacement (LTG) . Disconnect the electrical connector.
1	Air Conditioning Compressor Pulley Bolt CAUTION: Refer to Fastener Caution . Tighten 20.5 N.m (15 lb ft)
2	Air Conditioning Clutch Drive Plate Procedure Measure and adjust the air conditioning compressor clutch drive plate per specification. Air Conditioning Clutch Drive Plate Adjustment .
3	Air Conditioning Compressor Clutch Drive Plate Adjustment Shim
4	Air Conditioning Compressor Clutch Pulley Snap Ring Procedure Ensure the clutch pulley snap ring is installed with the flat side toward the air compressor.
5	Air Conditioning Compressor Clutch Pulley
6	Air Conditioning Compressor Clutch Coil Snap Ring Procedure Ensure the clutch coil snap ring is installed with the flat side toward the air compressor.
7	Air Conditioning Compressor Clutch Coil
