Front Fender Replacement

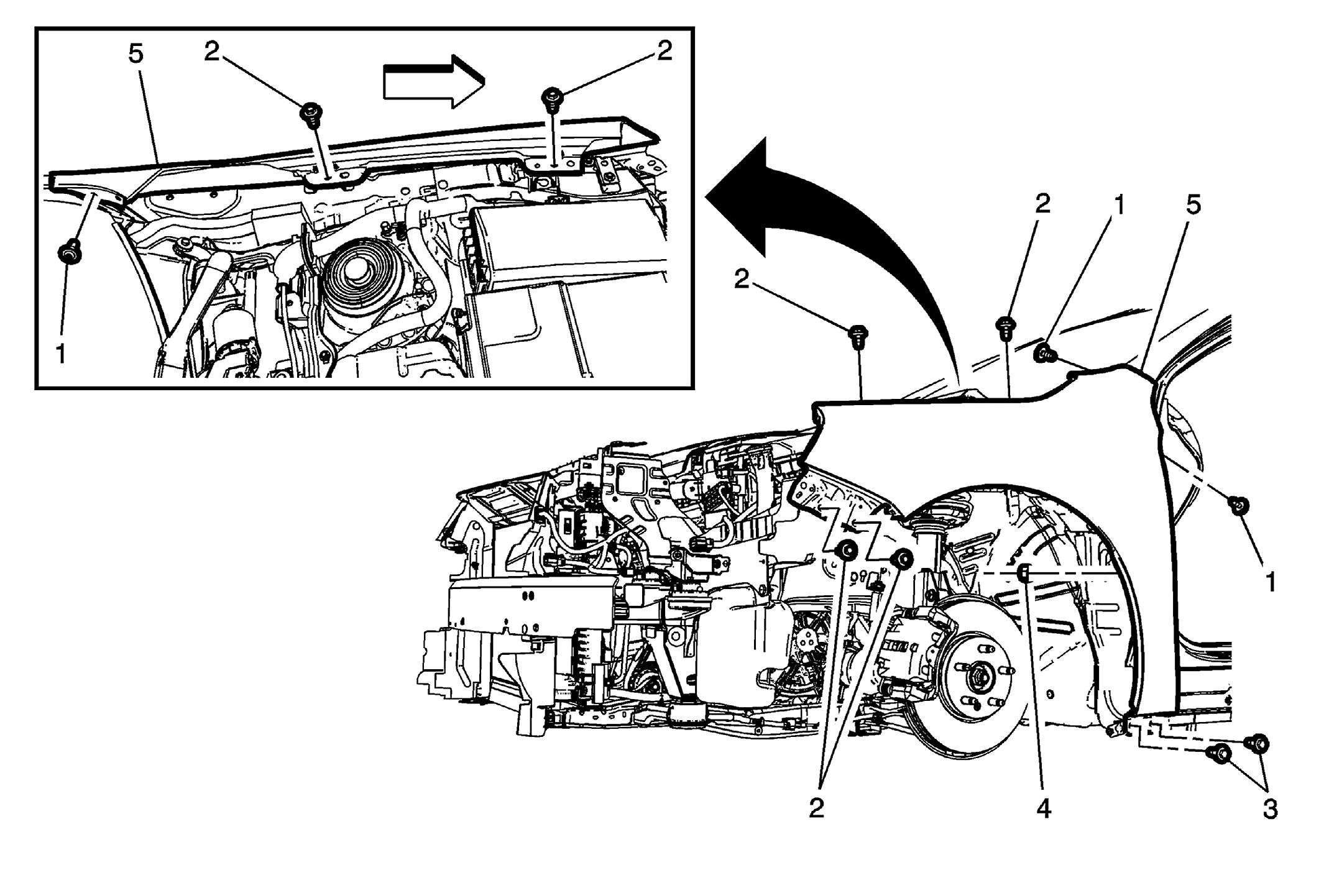

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . Remove the headlamp. Refer to Front Headlamp Replacement . Remove the rocker panel. Refer to Rocker Panel Molding Replacement . Remove the body hinge pillar sound insulator. Refer to Body Hinge Pillar Sound Insulator Replacement Remove the air inlet grille extension panel. Refer to Air Inlet Grille Panel Extension Replacement .
1	Front Fender Rear Bolt (Qty 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Fender Bolt (Qty 4) Tighten 9 N.m (80 lb in)
3	Front Fender Lower Bolts (Qty 2) Tighten 9 N.m (80 lb in)
4	Front Fender Nut Tighten 9 N.m (80 lb in)
5	Front Fender
