Body Hinge Pillar Sound Insulator Replacement

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .

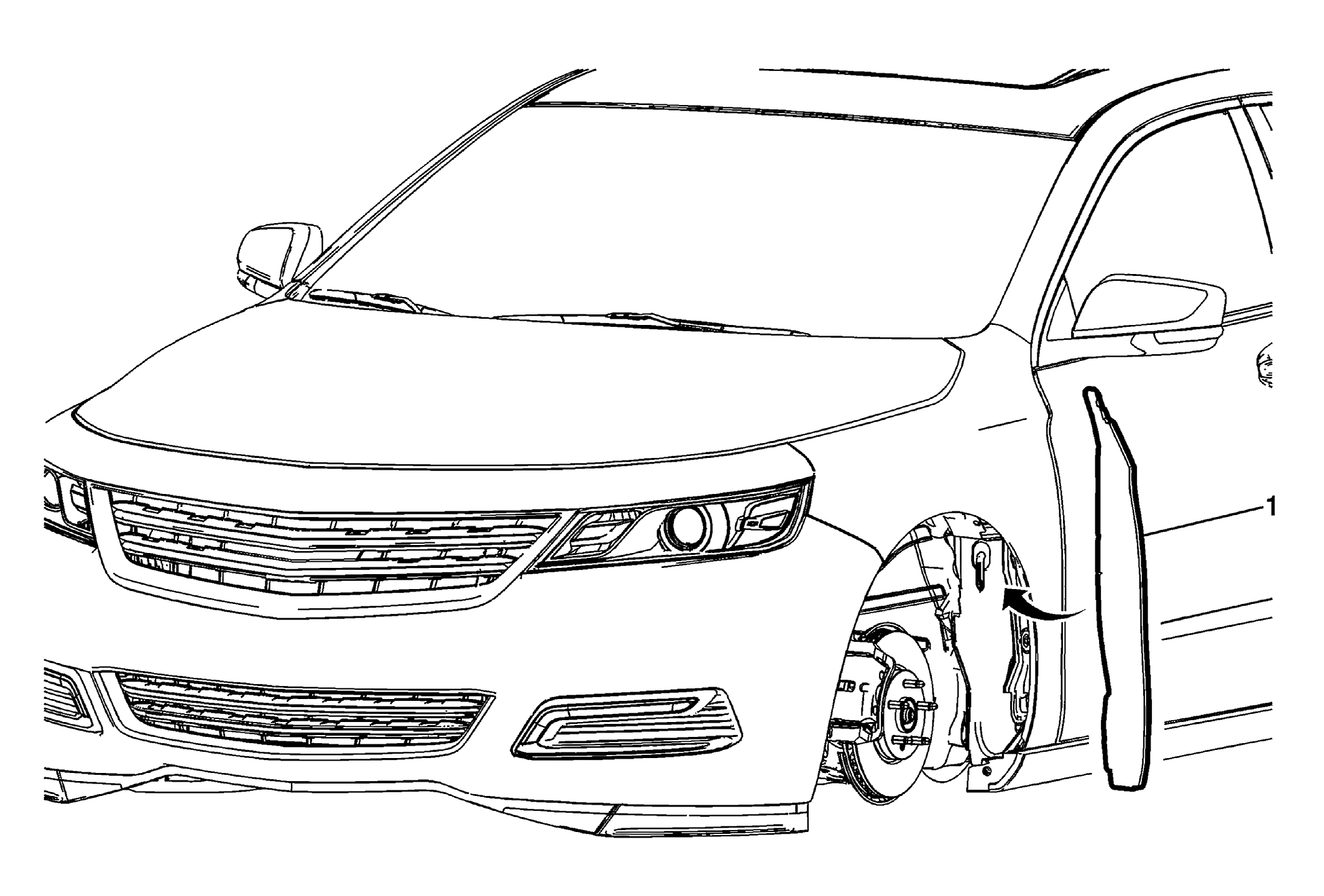

1	Body Hinge Pillar Sound Insulator Procedure Grasp the body hinge pillar sound insulator and pull from the rear of the fender. Firmly press the body hinge pillar sound insulator into the rear of the fender until fully seated.

Callout

Component Name

Preliminary Procedure
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .

Body Hinge Pillar Sound Insulator

Procedure

Grasp the body hinge pillar sound insulator and pull from the rear of the fender.
Firmly press the body hinge pillar sound insulator into the rear of the fender until fully seated.
