Rocker Panel Molding Replacement

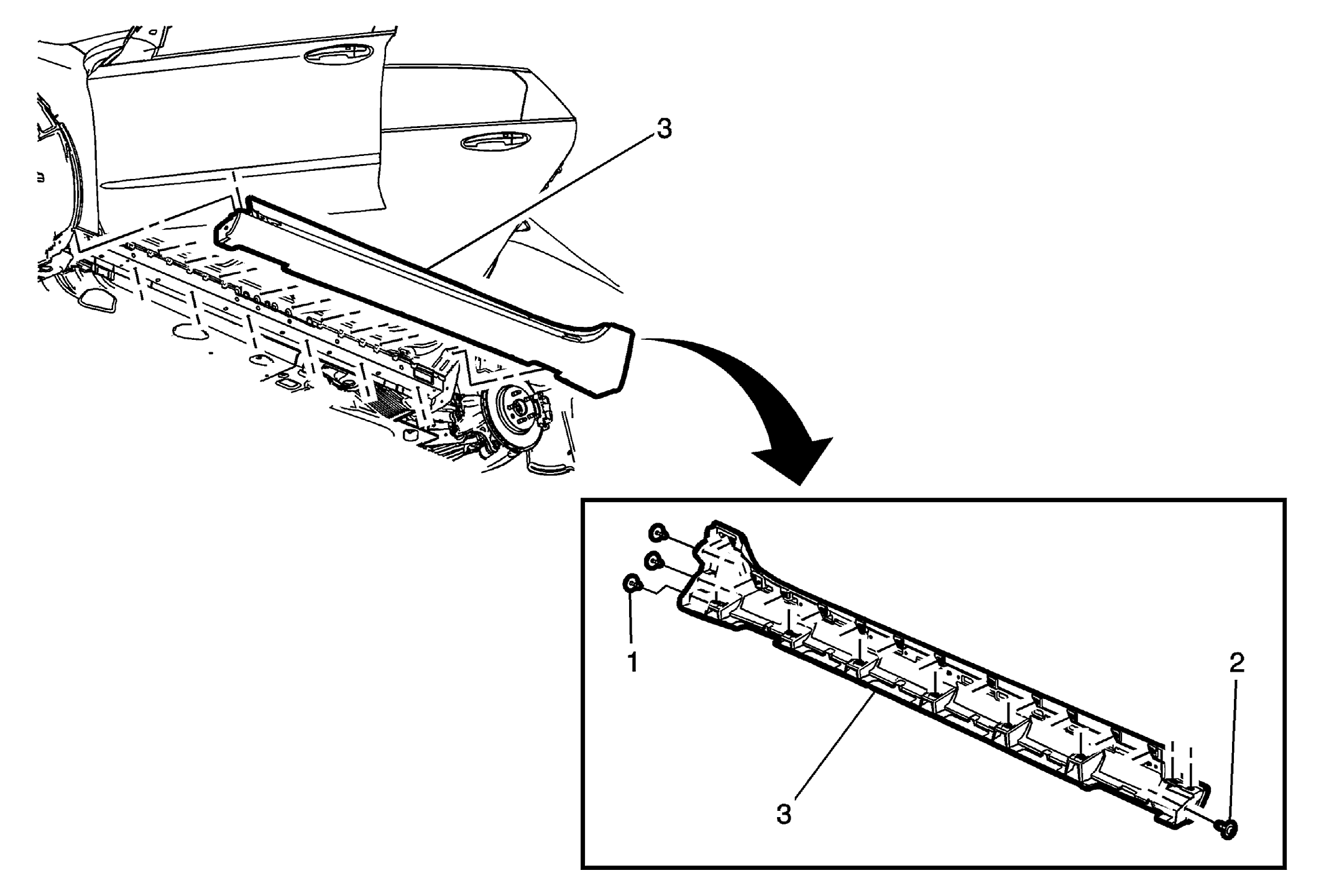

Callout	Component Name
Preliminary Procedure Open both front and rear side doors. Remove the rear tire and wheel assembly on the side being serviced. Refer to Tire and Wheel Removal and Installation .
1	Rear Wheelhouse Panel Liner Screw (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Rocker Panel Molding Screw CAUTION: Refer to Fastener Caution .
3	Rocker Panel Molding Release the 2 rocker panel molding retainers from the front fender. Release the 2 rocker panel molding retainers from the body side outer panel. From the bottom edge firmly pull down the rocker panel molding (6 retainers) from the body side outer panel reinforcement. From the top edge firmly pull out the rocker panel molding (11 retainers) from the body side outer panel and remove from the vehicle.
