Instrument Panel Cluster Trim Plate Replacement

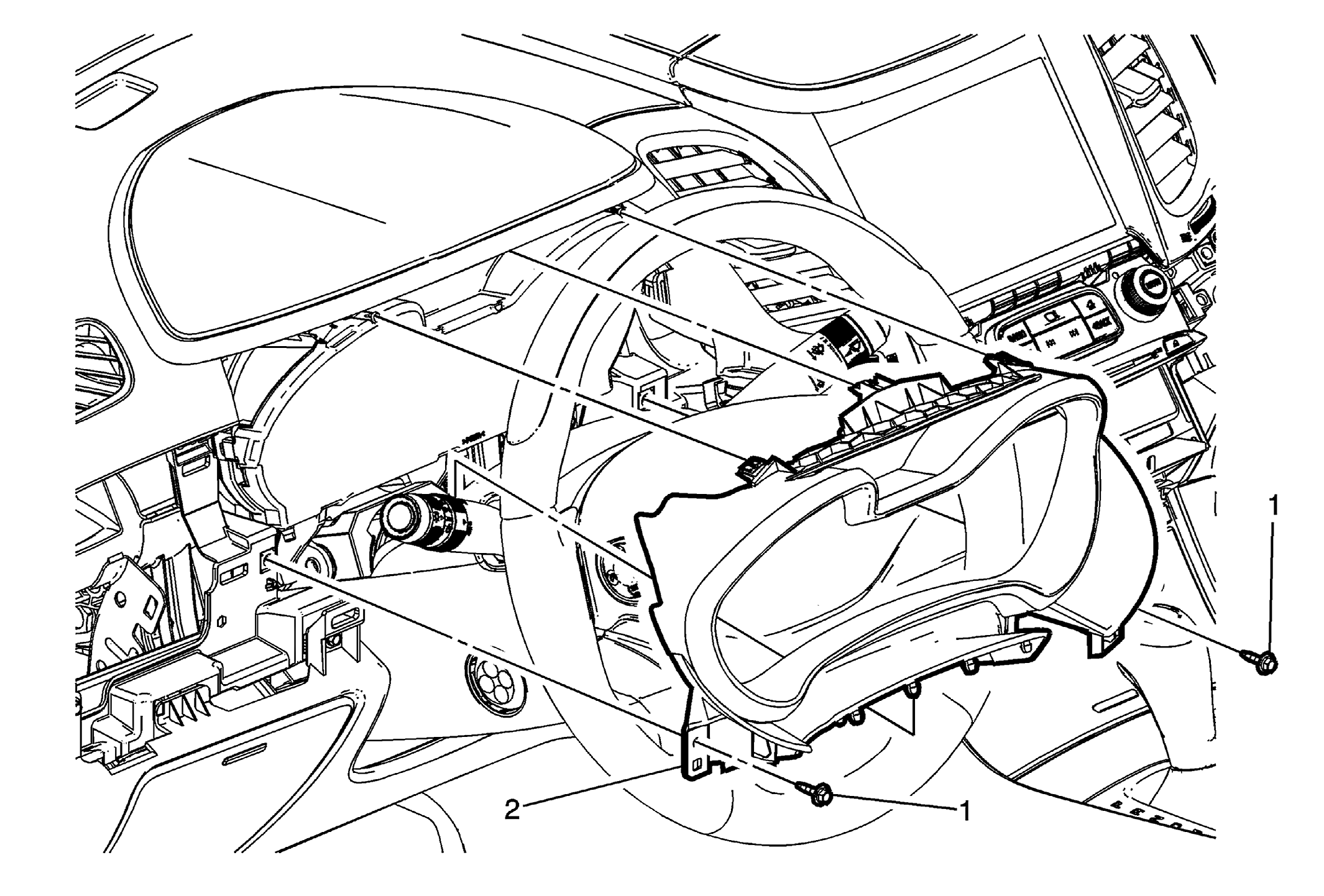

Callout	Component Name
Preliminary Procedure Remove the instrument panel center trim pad. Refer to Instrument Panel Center Trim Pad Replacement Remove the instrument panel trim pad. Refer to Instrument Panel Trim Pad Replacement . Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
1	Instrument Panel Cluster Trim Plate Bolt (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Instrument Panel Cluster Trim Plate Procedure Use a flat bladed plastic trim tool in order to release the retainers securing the trim plate to the instrument panel assembly.

Callout

Component Name

Preliminary Procedure

Remove the instrument panel center trim pad. Refer to Instrument Panel Center Trim Pad Replacement
Remove the instrument panel trim pad. Refer to Instrument Panel Trim Pad Replacement .
Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .

Instrument Panel Cluster Trim Plate Bolt (Qty: 2)

CAUTION:

Instrument Panel Cluster Trim Plate
Procedure
Use a flat bladed plastic trim tool in order to release the retainers securing the trim plate to the instrument panel assembly.
