Instrument Panel Trim Pad Replacement

Callout	Component Name
Preliminary Procedure Remove the instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement .

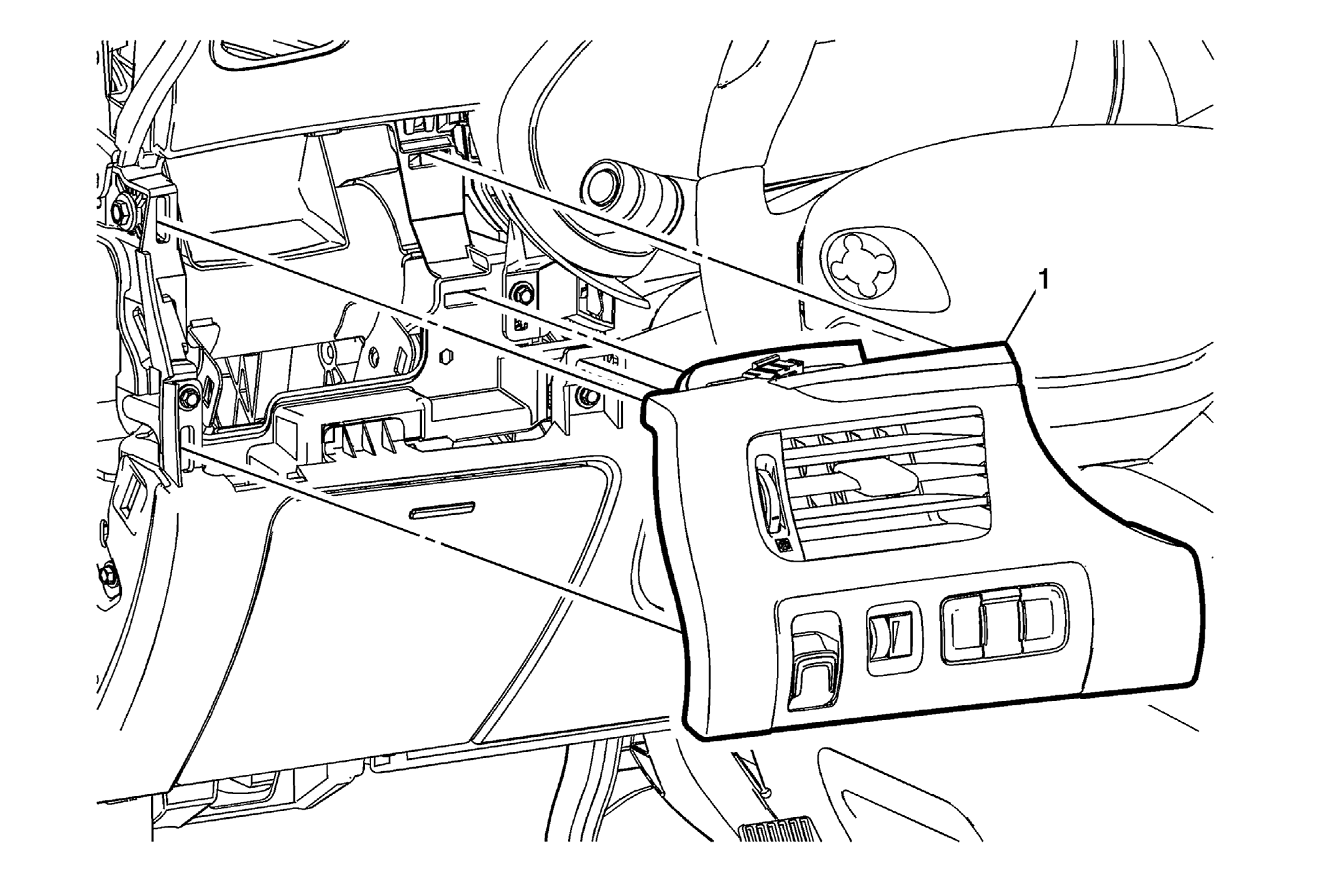

1	Instrument Panel Trim Pad Procedures Use a flat bladed plastic trim tool in order to release the retainers securing the trim pad to the instrument panel assembly. Disconnect the electrical connections. Transfer all necessary components.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement .

Instrument Panel Trim Pad

Procedures

Use a flat bladed plastic trim tool in order to release the retainers securing the trim pad to the instrument panel assembly.
Disconnect the electrical connections.
Transfer all necessary components.
