Front Floor Console Cup Holder Replacement

Callout	Component Name
Preliminary Procedures Remove the front floor console front compartment. Refer to Front Floor Console Front Compartment Replacement (Without K4C) Front Floor Console Front Compartment Replacement (With K4C) . Remove the transmission control lever knob. Refer to TRANSMISSION CONTROL LEVER KNOB REPLACEMENT .

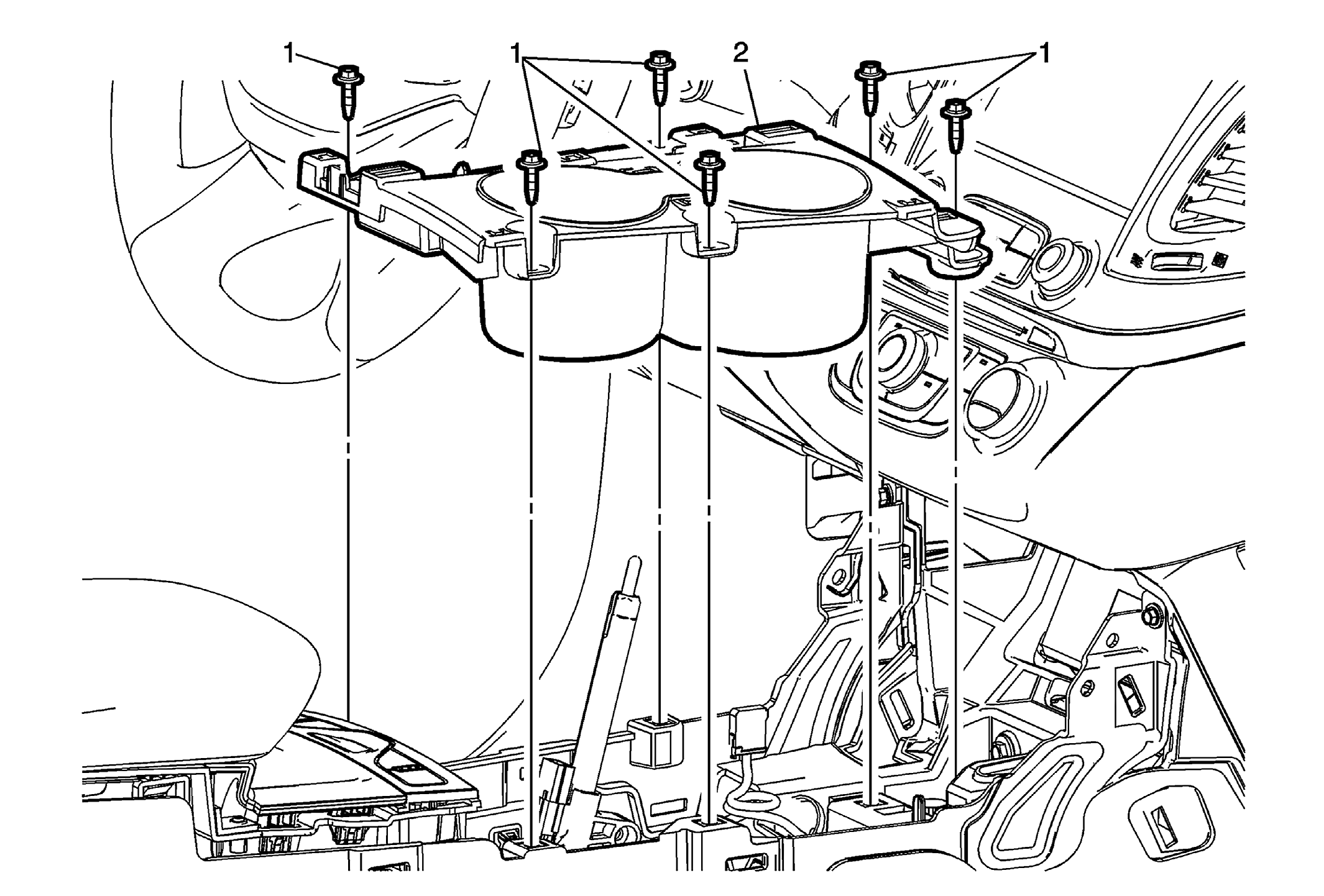

1	Front Floor Console Cup Holder Bolt (Qty: 6) CAUTION: Refer to Fastener Caution .
2	Front Floor Console Cup Holder Procedure Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Front Floor Console Cup Holder Bolt (Qty: 6)

CAUTION:

Front Floor Console Cup Holder
Procedure
Transfer components as necessary.
