Front Floor Console Compartment Replacement

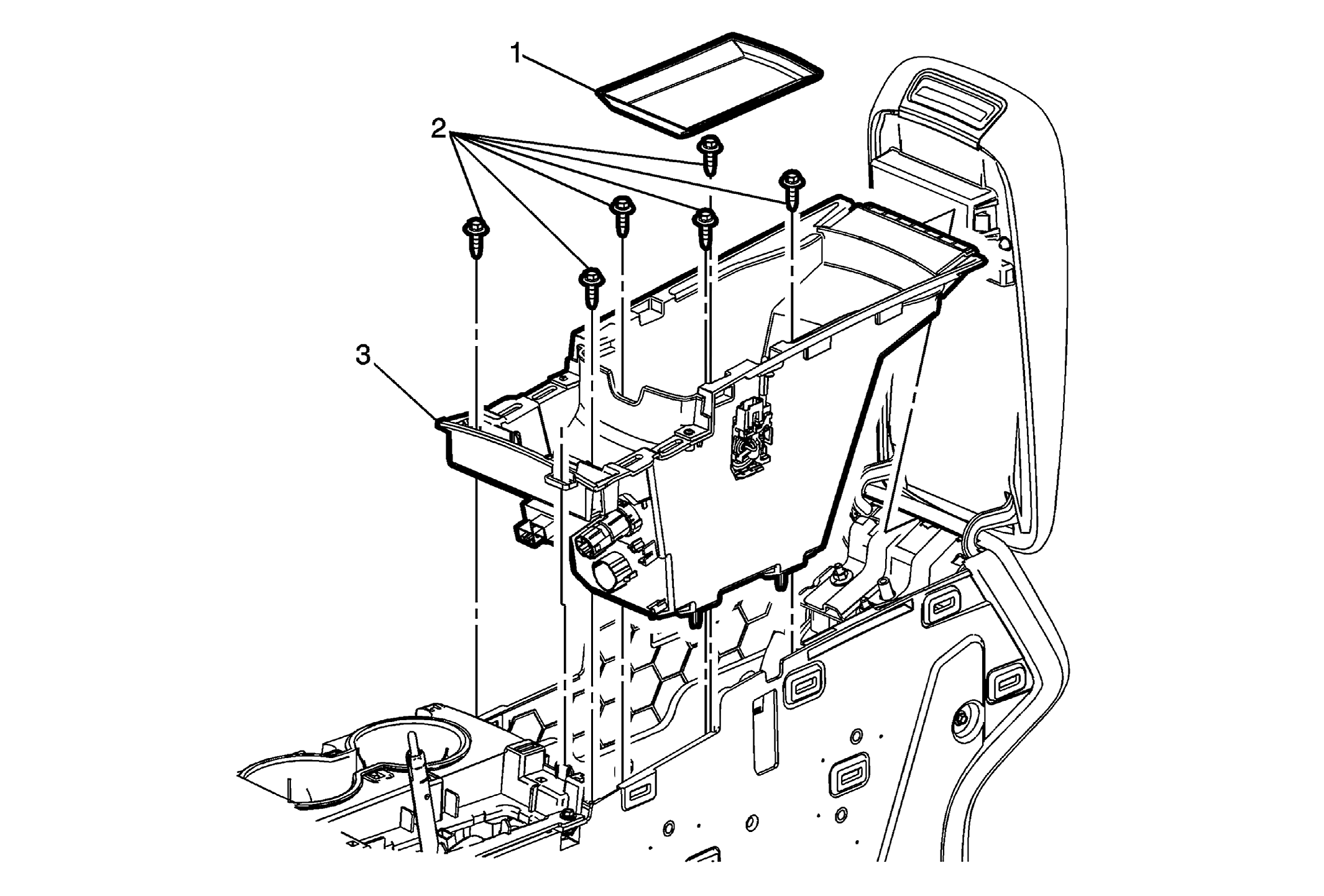

Callout	Component Name
Preliminary Procedures Remove the front seat vent fan switch, if equipped. Refer to Front Seat Vent Fan Switch Replacement . Remove the vehicle stability control system switch, if equipped. Refer to Vehicle Stability Control System Switch Replacement . Remove the transmission control lever knob. Refer to TRANSMISSION CONTROL LEVER KNOB REPLACEMENT .
1	Front Floor Console Rear Compartment Liner Procedure Remove the liner to access the fasteners
2	Front Floor Console Compartment Bolt (Qty: 6) CAUTION: Refer to Fastener Caution .
3	Front Floor Console Compartment Procedures Lift from the front and carefully pull out the rear lip from the armrest bracket. Disconnect the electrical connections. Transfer all necessary components.
