Front Seat Vent Fan Switch Replacement

Callout	Component Name
Preliminary Procedure Remove the front floor console insert. Refer to Front Floor Console Insert Replacement .

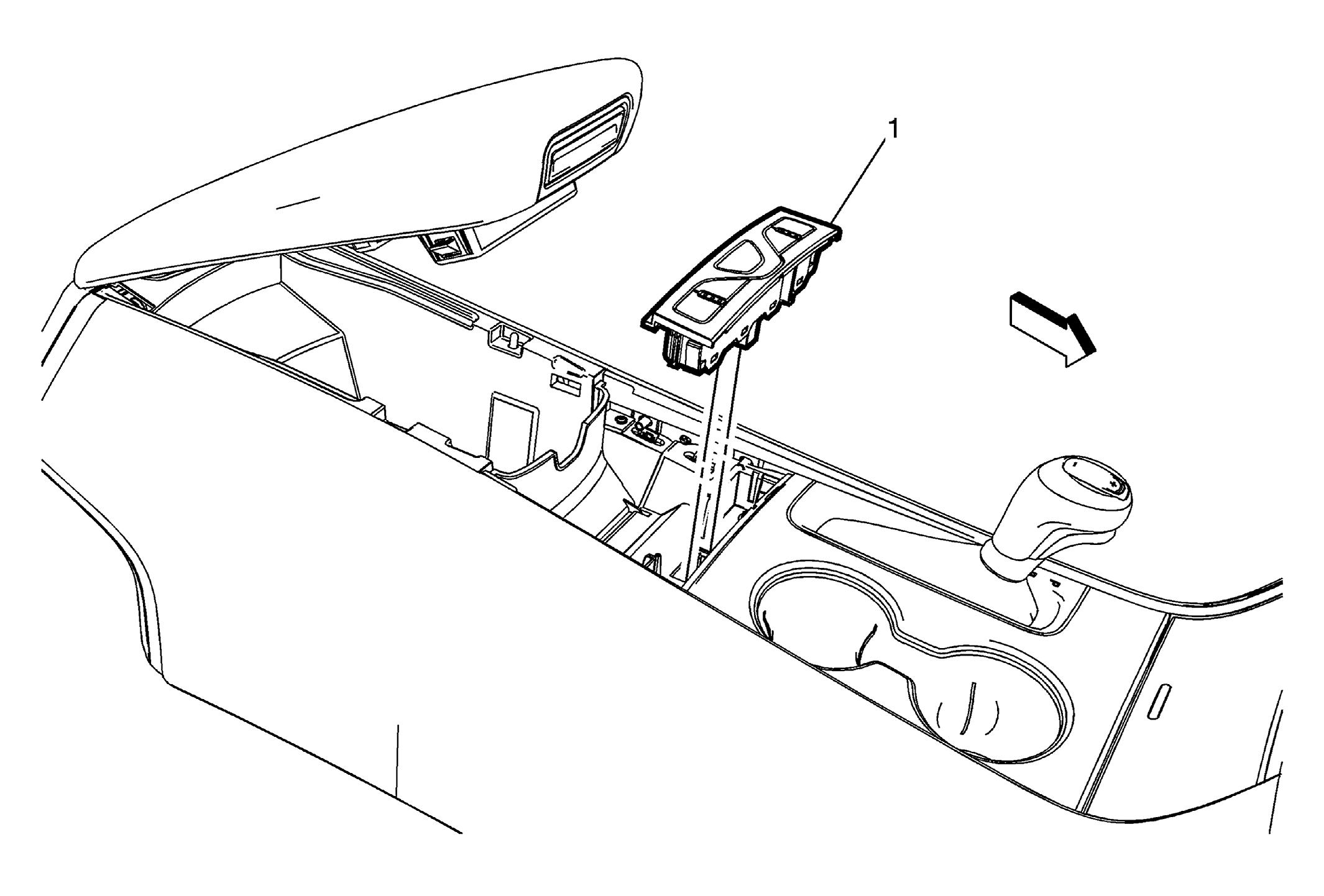

1	Front Seat Vent Fan Switch Procedure Using the appropriate tool, depress the tabs on the switch and gently remove the switch. Disconnect the electrical connector. NOTE: A hook type trim tool or equivalent is suggested to aid in the switch removal.

Callout

Component Name

Preliminary Procedure
Remove the front floor console insert. Refer to Front Floor Console Insert Replacement .

Front Seat Vent Fan Switch

Procedure

Using the appropriate tool, depress the tabs on the switch and gently remove the switch.
Disconnect the electrical connector.

NOTE:

A hook type trim tool or equivalent is suggested to aid in the switch removal.
