Front Seat Belt Retractor Replacement

Courtesy of GENERAL MOTORS COMPANY

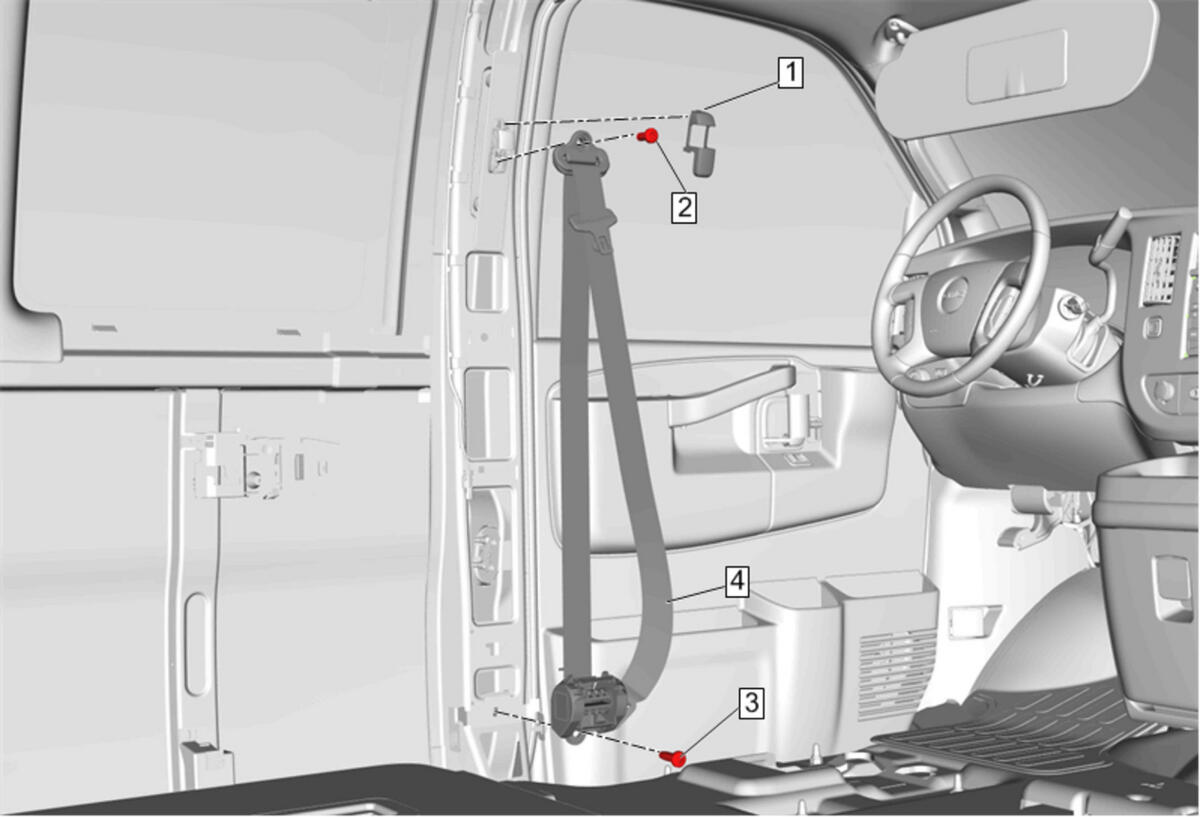

Callout	Component Name
Preliminary Procedure  Remove the appropriate garnish molding. For left side, refer to Body Side Front Trim Panel Replacement - Left Side . For right side, refer to Lower Pillar Garnish Molding Replacement .
1	Front Seat Belt Guide Cover
2	Front Seat Belt Guide Bolt CAUTION: Refer to Fastener Caution . Tighten  52 N.m (38 lb ft)
3	Front Seat Belt Retractor Bolt Tighten  52 N.m (38 lb ft)
4	Front Seat Belt Retractor
