Auxiliary Temperature Valve Actuator Replacement (Passenger Van)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

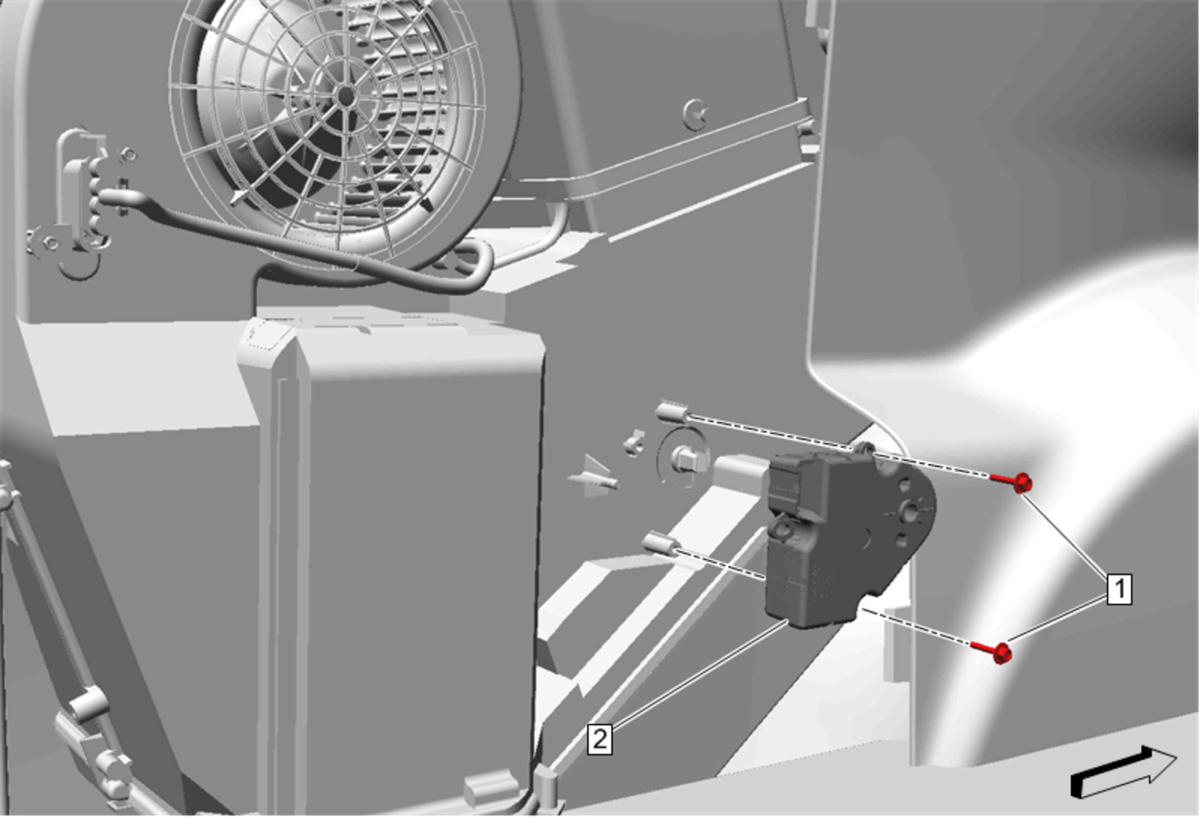

Callout	Component Name
Preliminary Procedures Remove the appropriate rear bench seats. Rear Bench Seat Removal and Installation (With Bench Seat) , or Rear Bench Seat Removal and Installation (With Split Bench) Body Rear Corner Garnish Molding - Left Side - Remove - Body Rear Corner Garnish Molding Replacement Body Rear Corner Trim Panel - Left Side - Remove - Body Rear Corner Trim Panel Replacement - Left Side Auxiliary Air Conditioning Air Outlet Duct Replacement (Top Hat Cargo Van C69) , or Auxiliary Air Conditioning Air Outlet Duct Replacement (Rear Pillar Passenger Van)
1	Auxiliary Temperature Valve Actuator Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 1.9 N.m (17 lb in)
2	Auxiliary Temperature Valve Actuator Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Remove the appropriate rear bench seats. Rear Bench Seat Removal and Installation (With Bench Seat) , or Rear Bench Seat Removal and Installation (With Split Bench)
Body Rear Corner Garnish Molding - Left Side - Remove - Body Rear Corner Garnish Molding Replacement
Body Rear Corner Trim Panel - Left Side - Remove - Body Rear Corner Trim Panel Replacement - Left Side
Auxiliary Air Conditioning Air Outlet Duct Replacement (Top Hat Cargo Van C69) , or Auxiliary Air Conditioning Air Outlet Duct Replacement (Rear Pillar Passenger Van)

Auxiliary Temperature Valve Actuator Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
1.9 N.m (17 lb in)

Auxiliary Temperature Valve Actuator
Procedure
Disconnect the electrical connector.
