Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Replace the exhaust gaskets with NEW gaskets.

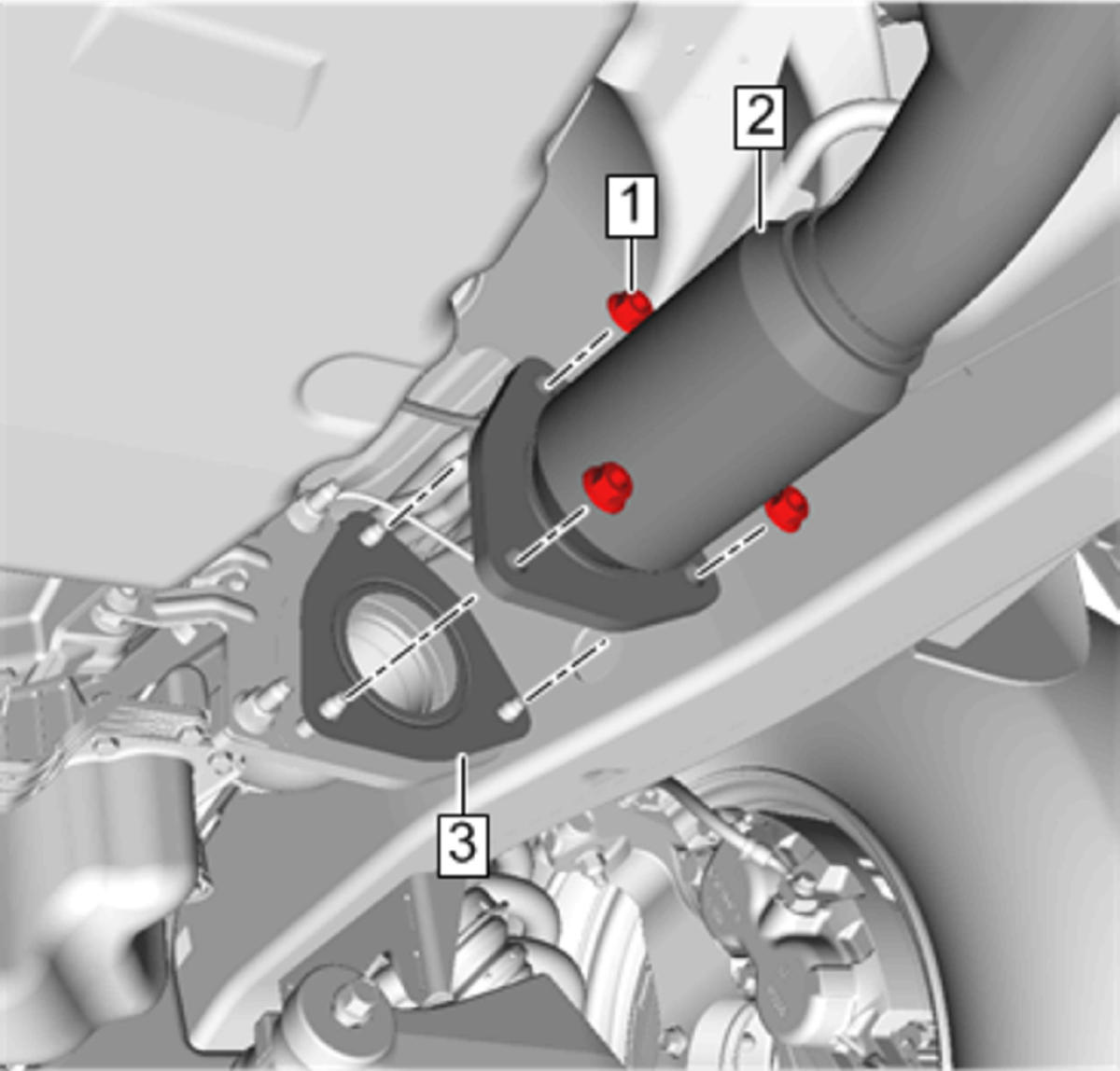

Catalytic Converter Gasket (3) - Install
- Nitrogen Oxides Catalytic Converter (2) - Install
- Catalytic Converter Nut (1) - Install and tighten [3x]50 N.m (37 lb ft)

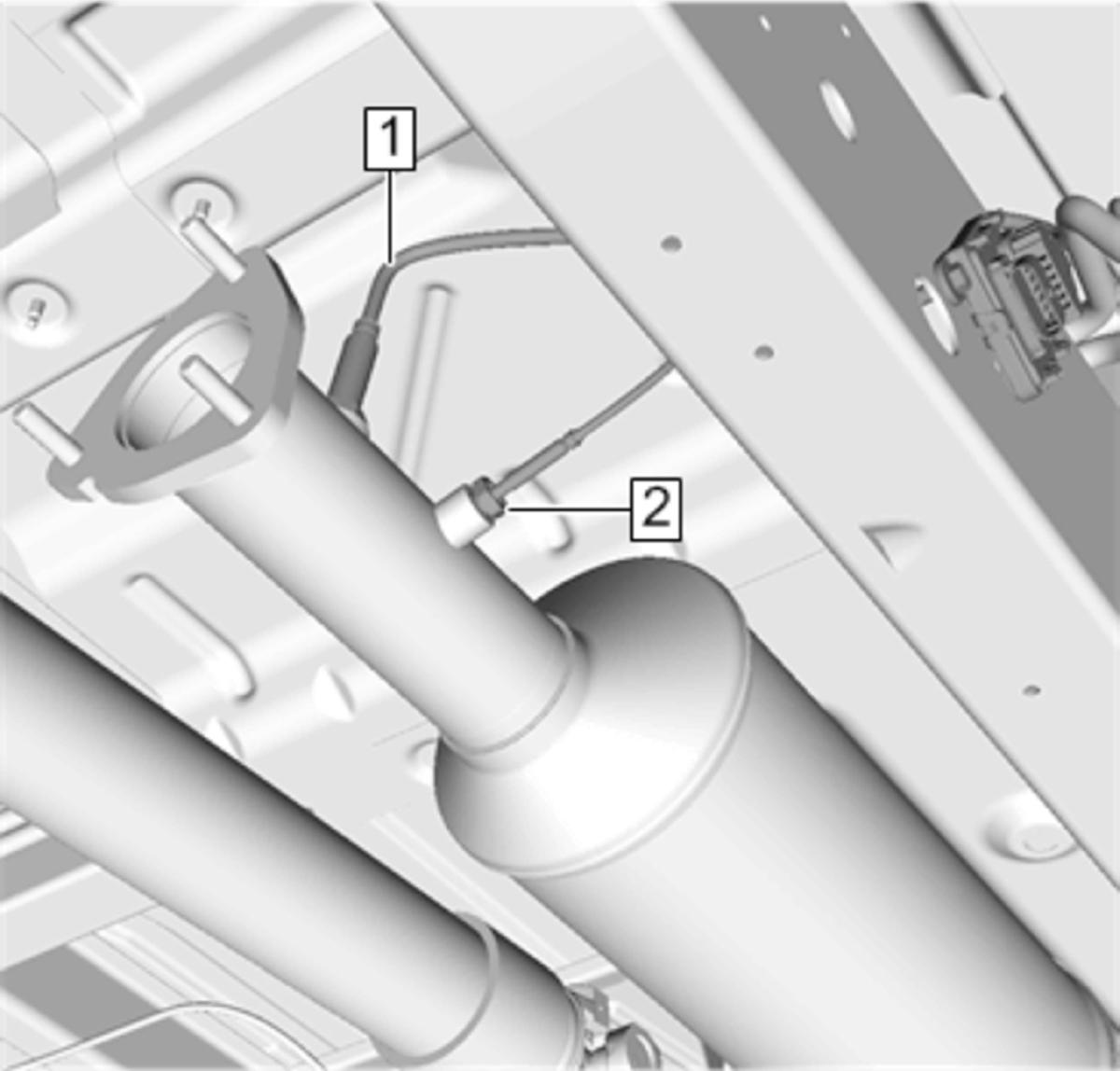

- Exhaust Temperature Sensor-Position 3 (2) - Connect - Exhaust Temperature Sensor Replacement - Position 3
Nitrogen Oxides Sensor-Position 2 (1) - Install - Nitrogen Oxides Sensor Replacement - Position 2

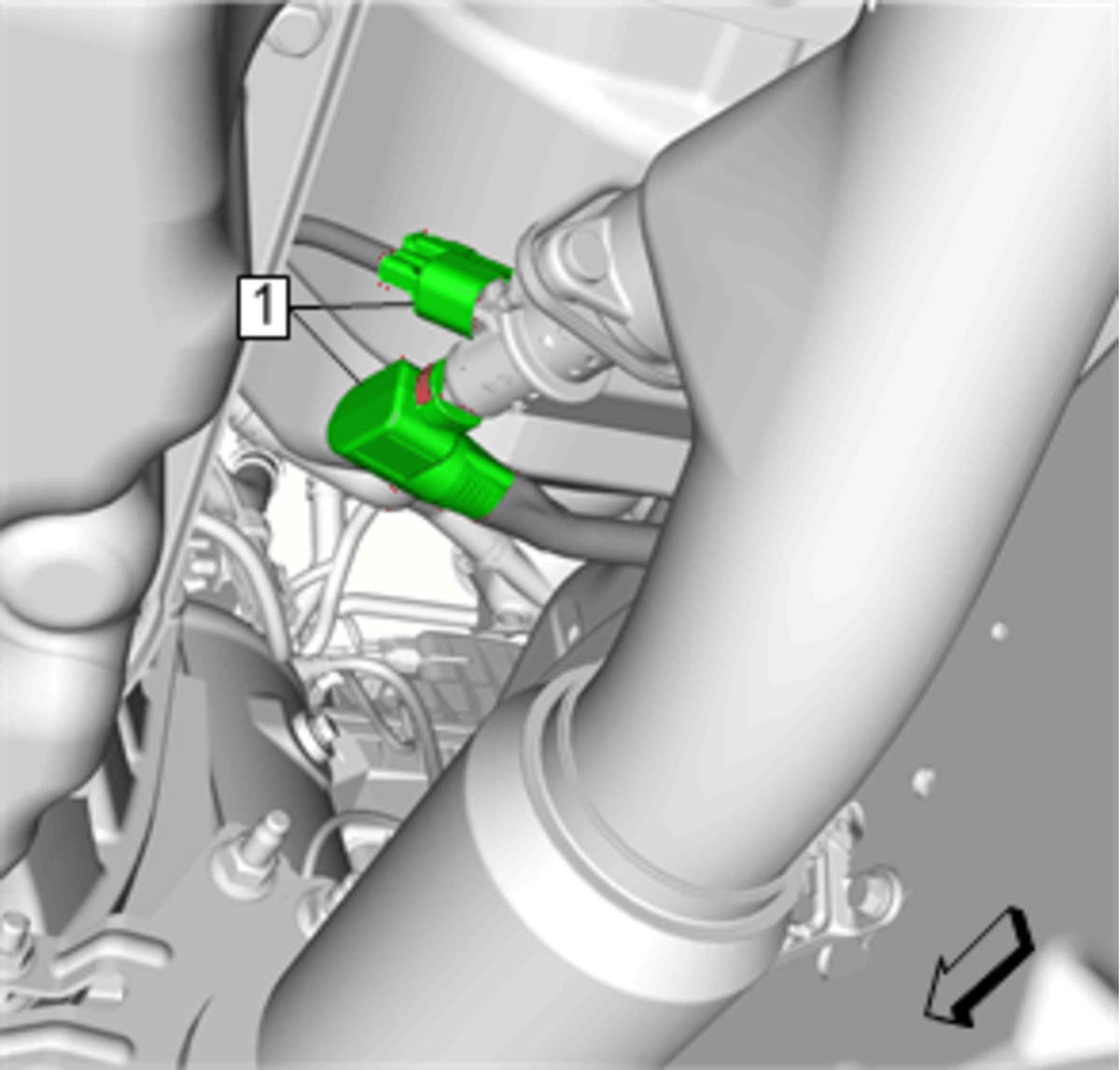

Emission Reduction Fluid Exhaust Front Pipe Injector (1) - Connect - Emission Reduction Fluid Exhaust Front Pipe Injector Replacement

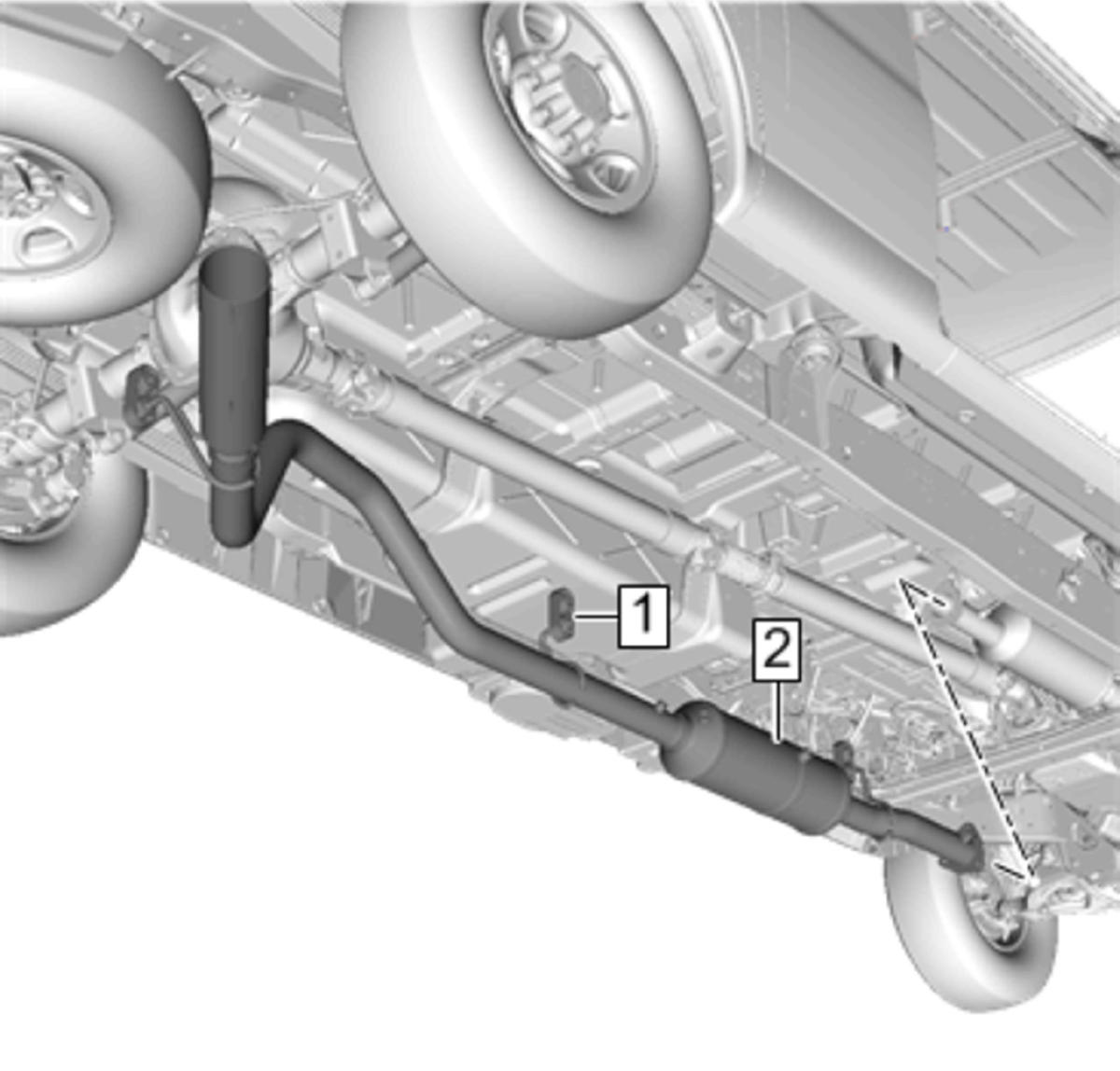

Exhaust Particulate Filter (2) - Install - Exhaust Particulate Filter Replacement (LWN)
- If replacing the Nitrogen Oxides Catalytic Converter with new, a NOx Catalyst Reset will need to be performed. NOx Catalyst Reset
CAUTION:
Refer to Fastener Caution .
