Emission Reduction Fluid Exhaust Front Pipe Injector Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

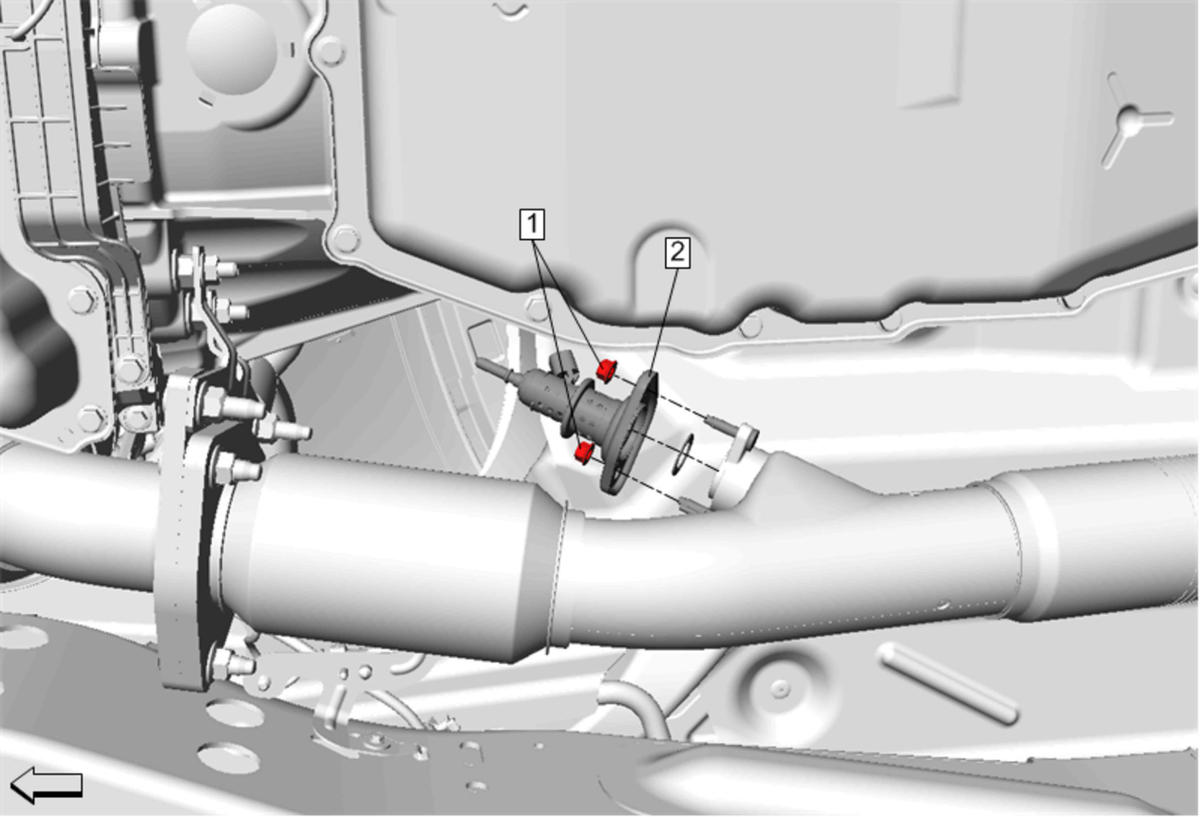

GM4605881Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Emission Reduction Fluid Exhaust Front Pipe Injector Supply Pipe @ Emission Reduction Fluid Exhaust Front Pipe Injector - Disconnect - Plastic Collar Quick Connect Fitting Service
1 Emission Reduction Fluid Exhaust Front Pipe Injector Nut [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
10N.m (89 lb in)
2 Emission Reduction Fluid Exhaust Front Pipe Injector

Procedure

  1. Disconnect the electrical connector.
  2. Remove and DISCARD the emission reduction fluid injector gasket.
