Engine Harness Routing - Engine Compartment

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

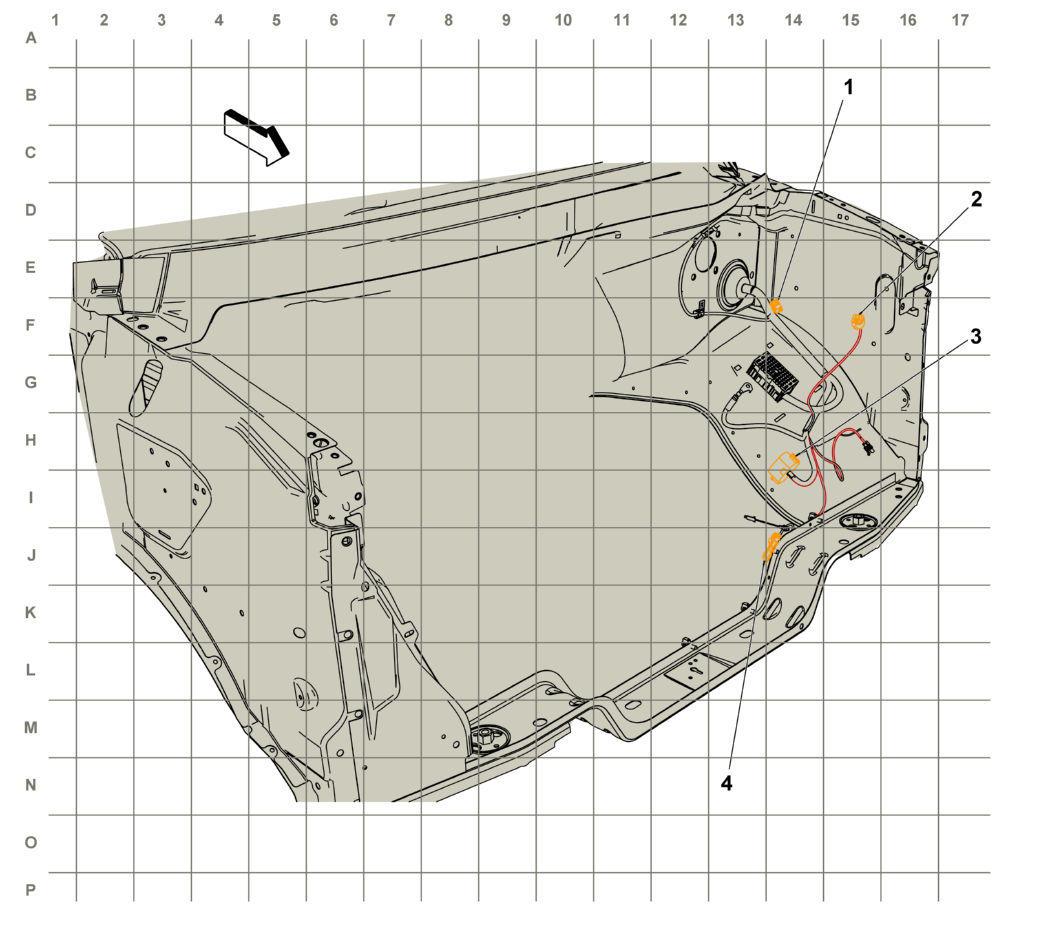

GM2830756Courtesy of GENERAL MOTORS COMPANY
Items
1. X141 Instrument Panel Harness to Brake Fluid Level Jumper Harness (UJ1) X141 Instrument Panel Harness to Brake Fluid Level Switch Harness
2. X150 Instrument Panel Harness to Forward Lamp Harness X150 Instrument Panel Harness to Forward Lamp Harness
3. X100 Instrument Panel Harness to Engine Harness X100 Instrument Panel Harness to Engine Harness
4. X104 Instrument Panel Harness to Front Impact Sensor Jumper Harness X104 Instrument Panel Harness to Inflatable Restraint Harness
